| Type: | Tablet PC |
|---|---|
| Brand Name: | WQ |
| Feature: | Bluetooth,Wifi |
| Memory Capacity: | 256MB |
| Products Status: | Stock |
| Type: | wlx |
| Model Number: | WLX-043R-AP10 |
| Place of Origin: | China (Mainland) |
| Weight: | 350g |
| Operating System: | Linux |
| Display resolution: | 640x480 |
| Touch Screen Type: | Capacitive Screen |
| Hard Drive Capacity: |
Quick Details
Specifications
1. Parameters

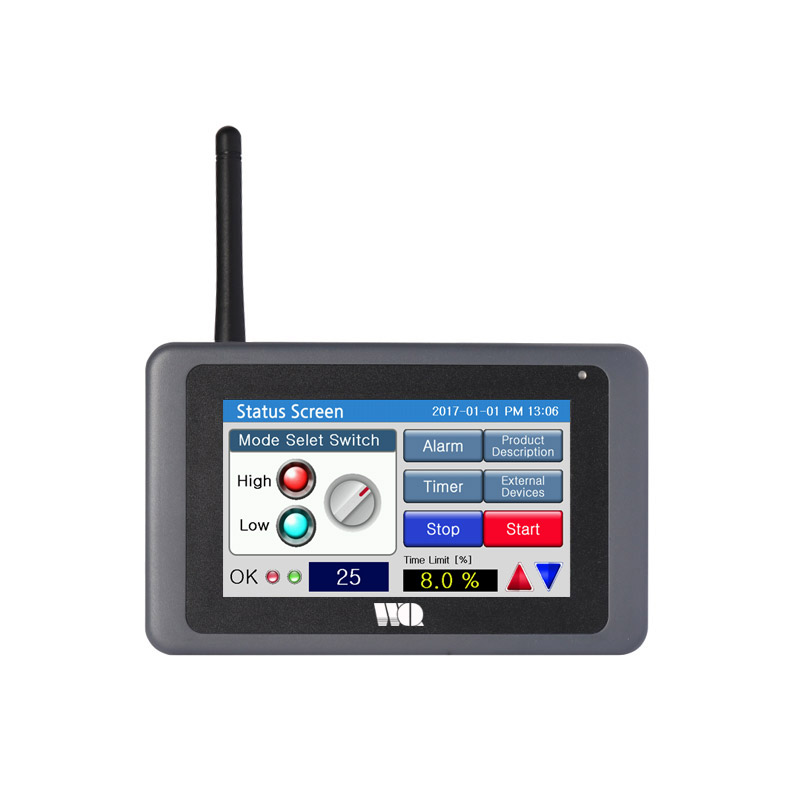

Product model |
WLX-043R-AP10 |
Basic parameters |
CPU: Cortex -A8 architecture, frequency 1.0GHZ Memory: 512MB DDR3 Flash: 256MB NandFlash |
Display screen |
Size: 4.3 inch Resolution: 480272 Wide-temperature type, 64K colors or 260K colors LED backlight: lifetime > 25000 hours |
Touch screen |
4-wire resistance touch screen(driver inside) |
Hardware interface |
1 channel RS-232-DB9 interface(COM1) 1 channel 3-wire RS-232 serial port(COM3) 2 channel RS-485 interface(COM2, COM4), COM2 is a multiplexing of CAN. 1 channel CAN bus.(driver inside)(Optional). 1 channel USB Device interface. 2 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot, support TF card. 1 channel WiFi module inside.(Optional) 1 channel DC12V~24V, industrial power solution, higher reliability. |
OS |
Linux |
Defend degree |
IP65 (front panel) |
Working Environment |
Power: DC 12V-24V (6W) Working Temperature: -10~60℃ Storage temperature: -20~85℃ Working humidity: 1090%RH |
Size |
Shell structure: plastic Panel size: 139.686.6 (mm) trepanning size: 131.279.2 (mm) |
Application area |
Industrial Control, detection device, instruments and meters, security Monitoring, medical apparatus and instruments, intelligent terminals Embedded high-end application. Support CAN bus network deployment. |
Software support |
Flash power-down protection function. QT Creator(QT C++)development, easy to use other software flexibly. Easy change the user-defined splash screen. Support display screen rotation (degree: 0/90/180/270) |
2.Interface definition
| 1. COM2-485A (CANH) | 2. COM2-485A (CANL) |
3. GND |
4. COM3-TX of RS-232 |
5. COM3-RX of RS-232 |
6. GND |
7. COM4-485A |
8. COM4-485B |
2.1 RS-232 interface
2 channel serial port, support the highest-level baudrate115200bps. the corresponding interface in Linux system is COM1, COM3.
2.2 RS-485 interface
the corresponding port in Linux system is COM2, COM4; and COM2 is a multiplexing of CAN interface.
2.3 CAN Bus interface
the function of Can-bus interface is optional. Also, without terminal resistance inside,pls specify once in need.
2.4 Power interface
Exterior size: 139.686.629.3(mm) Trepanning size: 131.279.2(mm)
