| Dimensions: | 87.3X132X46.5mm |
|---|---|
| Accuracy Class: | 0.5 |
| Phase: | Single Phase |
| Display Type: | Digital Only |
| Brand Name: | Blue Jay |
| Operating Temperature: | -10~55C |
| Output Voltage: | 220V |
| Measuring Energy Range: | 0-999999 |
| Model Number: | DCEM |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

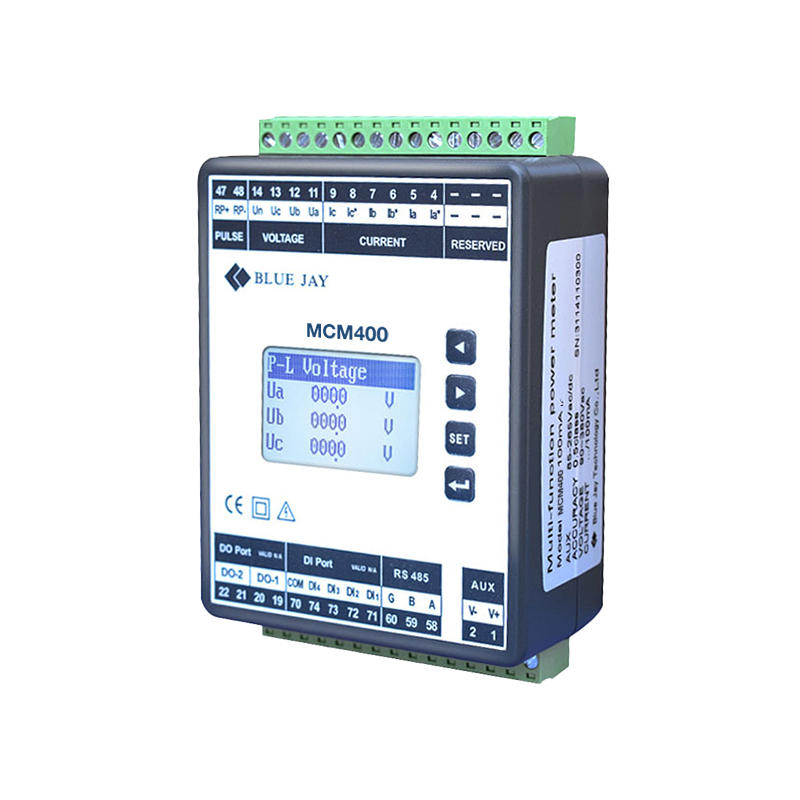

MCM400 Multi Circuit Energy Monitor is designed for commercial and residential power circuit sub-metering projects such as Multi-Tenant Submetering. this multi-circuit sub-meter can integrate a 4pcs three-phase energy meter, or 12-piece single-phase energy meter. Metering operation processing by different MCUs provides high-accuracy billing performance.
this multi-channel energy monitor performs real-time metering, measures energy consumption, offers optional multi-tariff and time-of-use (TOU), and monitors power quality functions. this three-phase energy meter has 4 four-channel circuits. It has an LCD screen and keypad for easy configuration. RS-485 communication can send out the collected value to the remote host. this MCM400 Multi-Channel Energy Monitor is ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers, and other multi-user environments.
Features
this multi-channel energy monitor performs real-time metering, measures energy consumption, offers optional multi-tariff and time-of-use (TOU), and monitors power quality functions. this three-phase energy meter has 4 four-channel circuits. It has an LCD screen and keypad for easy configuration. RS-485 communication can send out the collected value to the remote host. this MCM400 Multi-Channel Energy Monitor is ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers, and other multi-user environments.
Features
External Hall sensors for isolation current input, higher safety security
Max 4 channels energy detect & display.
Multi-use LCD screen for volt / amp / energy data.
Built-in isolation circuitry can measure the maximum 1KV voltage signal.
Provide 4 channels DI port, 2 channel DO for control.
Provide RS485 port for remote communication.
