1. Production description

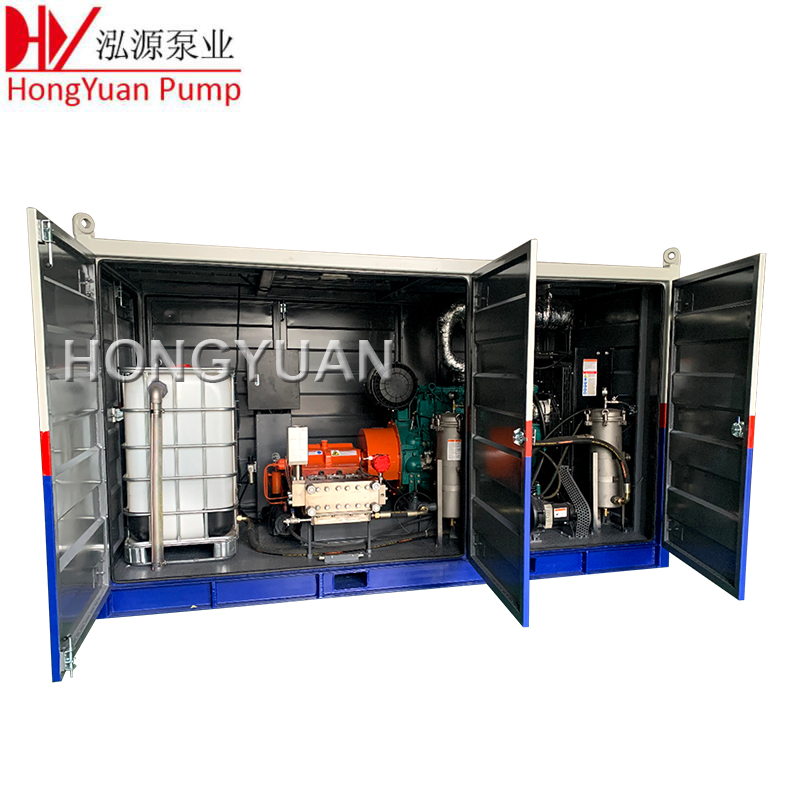

Machine name: 2800bar 41lpm high quailty high pressure water jet cleaner for paint and rust remove
Engine Speed: 1500rpm
Working pressure:2800bar
Flow rate:41LPM

Medium:Fresh water,soda ash,oil.Ect

Certification:ISO9001:2008, CE

Standard features:

*Water blasting machine (1000bar 80L/M Model WHY30028)
*Electric motor or diesel engine
*Flexible coupling
*Secondary filter 10micron filtration precision (Stainless steel)
*Safety valve
*Pressure regulating valve(Manual control or air control)
*High pressure hose
*High pressure water jetting gun (trigger type)
*Booster pump and piping system
*Rotating nozzle as require

Technical parameters:

Model	Plunger	Flow	Required power (kw)				D	R.p.M
	Diameter		160kw	200kw	250kw	280kw	n1	n2
	(mm)	(l/min)	Operating pressure (bar)
WHY30018	18	34	2400	2760			1500	366
WHY30020	20	41	1900	2400	2760		1500	366
WHY30022	22	50	1600	2000	2500	2800	1500	366
WHY30024	24	60	1350	1700	2100	2500	1500	366
WHY30026	26	70	1150	1430	1780	2000	1500	366
WHY30028	28	81	980	1200	1540	1800	1500	366
WHY30030	30	93	860	1100	1300	1600	1500	366

D=Piston/Plunger. dia. [mm]              n1=Motor/Engine r.p.m.            n2=Crankshaft r.p.M
N2 Plunger speed:0.73m/s                Rod force:105KN                      Stroke:120mm
1kW=1.34HP                                     Op.Pressure 1bar=14.5psi=0.1Mpa  1GPM=3.78L/M
2. Company information

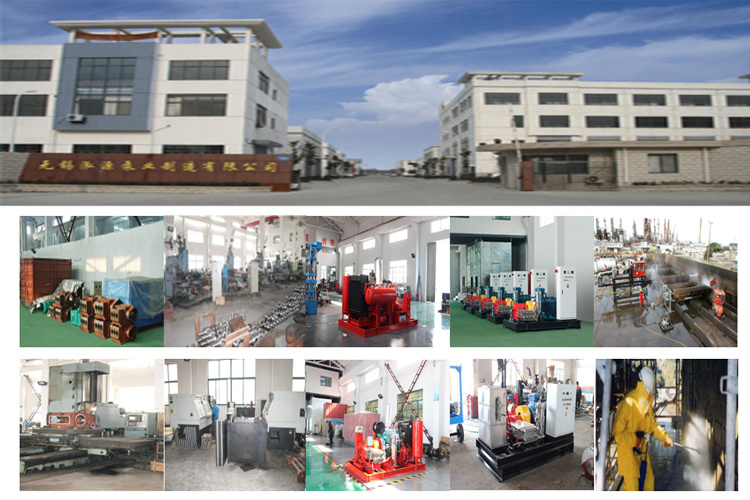

Wuxi Hongyuan Pump Manufacturing Co., Ltd. Is a professional high pressure pump manufacturer and high pressure cleaning machine supplier. Our products strictly accord with JB/T8093-1999 standard and have passed through ISO9001 quality system.All products manufactured by the company with a pressure protection system, oil temperature control system, water flow pressure control system, control system.We focus on world leading technology, introduce the Germany technology, and constantly improve the quality system of our excellent products such as cleaning equipment and so on. this reduces the production cost and improves the work efficiency for users. According to customer requirements, they can customize products or research and develop production together.

3. Certification

4. Application

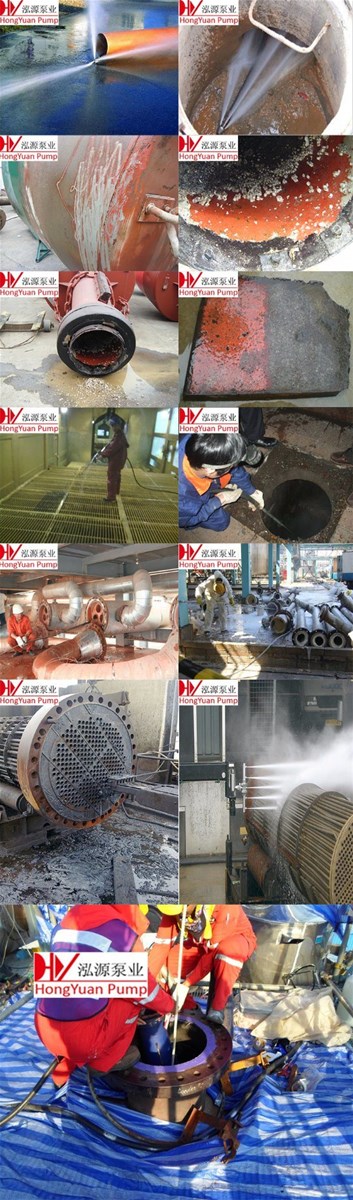

5. Machine working on site

6. Packaging and shipping

7. International market

8. FAQ
(1)Q: What capacity of we can supply?

  A: we can as your needs to professional design.

(2)Q: how many days can delivery the goods?

  A:the machine and deliver time is specially designed machine according to your specific requirement.

(3)Q:What does your factory do regarding products quality?

  A: from the beginning to the end we have a special quality control personnel. Each machine is assembled and carefully tested before shipment.

(4)Q: how long is your delivery time?

   A: It is according to the model and quantity.Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines.

(5) Q: What is your terms of payment?

   A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.

       Payment<=USD 5000, 100% in advance.

       Payment>=USD 5000, 40% T/T in advance, balance before shipment.
