Quick Details

Shape: Spherical
Structure: Plano-convex
Usage: Optical
Material: Glass
Brand Name: JUKA Optical
Place of Origin: China (Mainland)
Lens Diameter: 2~500mm
Scrath/Dig: 40-20
Surface Quality:

Specifications

Plano convex lens is widely used in optical display systems, projection optics systems, imaging optical systems, and laser measurement systems. this lens is almost the most super form for both collimating a point source and focusing collimated light.

JUKA Optical specilialize in customizing high precision large plano convex lens, and Max diameter can be up to 500mm. the large size optical lenses are our mature and mass-produced products.  Many customers from machine vision and other industries have been purchasing them from our company.

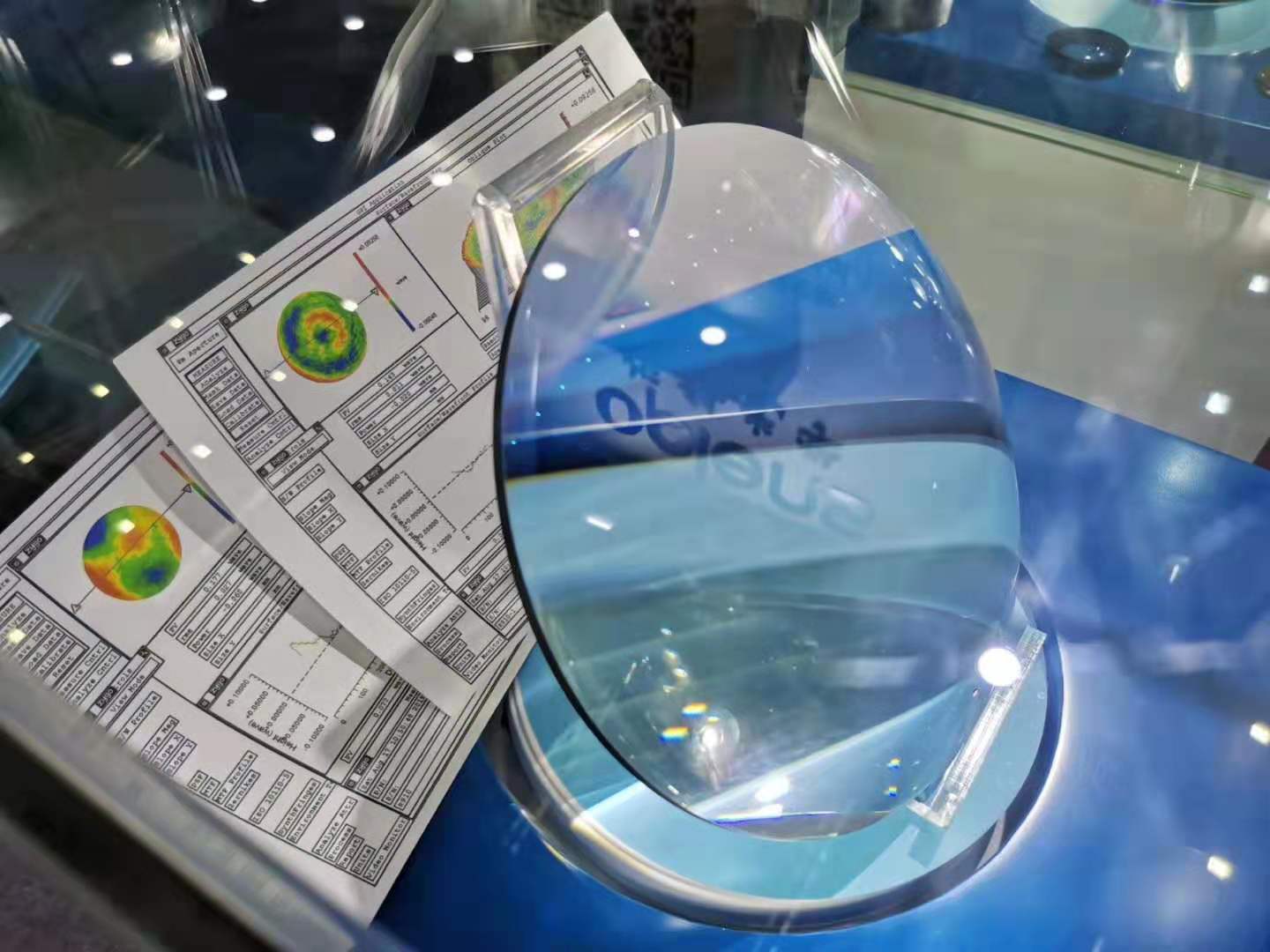

large convex lens

the Technical Parameters of PCX Lens:
Material:
Surface Flatness:
Scratch/Dig:
Eccentricity:
Focal Length Tolerance
Diameter Tolerance:
Thickness Tolerance:
Clear Aperture:
Coating:
Diameter Range:
Optical Glass
< λ/5 @ 633nm
< 40/20 (both sides)
≤ 1arcmin
< ± 1%
< + 0.00/ - 0.10mm
< ± 0.1
≥ 90% of diameter
AR or BBAR
2~500mm

Note: higher precision requirements can be customized.
