| Safety Standards: | IEC |
|---|---|
| Breaking Capacity: | High |
| Usage: | Low Voltage |
| Brand Name: | Betterfuse |
| Material: | Plastic cap / brown thermoplastic fuse body. |
| Model Number: | No.932 |
| Place of Origin: | China (Mainland) |
| color: | red |
| applications: | consumer electronics, LED drivers, power supplies, battery chargers,controllers,etc. |
Quick Details
Specifications

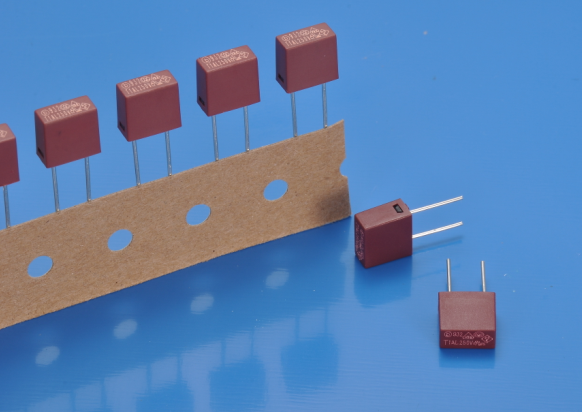

the 932 series provides protection for printed circuit boards used in a large variety of
Applications that need fuses with time-delay, low breaking capacity. the sub-miniature device is
Constructed of a plastic cap and base with a tin plated copper lead wire. It offers excellent
Mounting characteristics and is 100% tested for cold resistance.
Detailed features:
Main Characteristics:Square sub-miniature fuse; Time-Lag (T)
Standard :IEC 60127-3/IV
Materials: Fuse body:Thermoplastic
Lead:Tin plated Coppe
Operating Temperature:-55℃ to +125℃
Storage Conditions:+10℃ to +60℃
Relative humidity:≤75% yearly average
without dew, maximum 30 days at 95%
Vibration Resistance:24 cycles at 15 min. Each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Soldering Parameters:260℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak: 260℃. 10 sec. (IEC 60068-20)
