| Brand Name: | CHUNGFO/ HUITONG |
|---|---|
| Certification: | CCC,CE,ROHS,UL |
| Voltage: | 5V/12V |
| Speed: | 5500rpm/6500rpm/7500rpm |
| Air Volume: | 5.16~6.7CFM |
| Model Number: | D04007 |
| Place of Origin: | China (Mainland) |
Quick Details

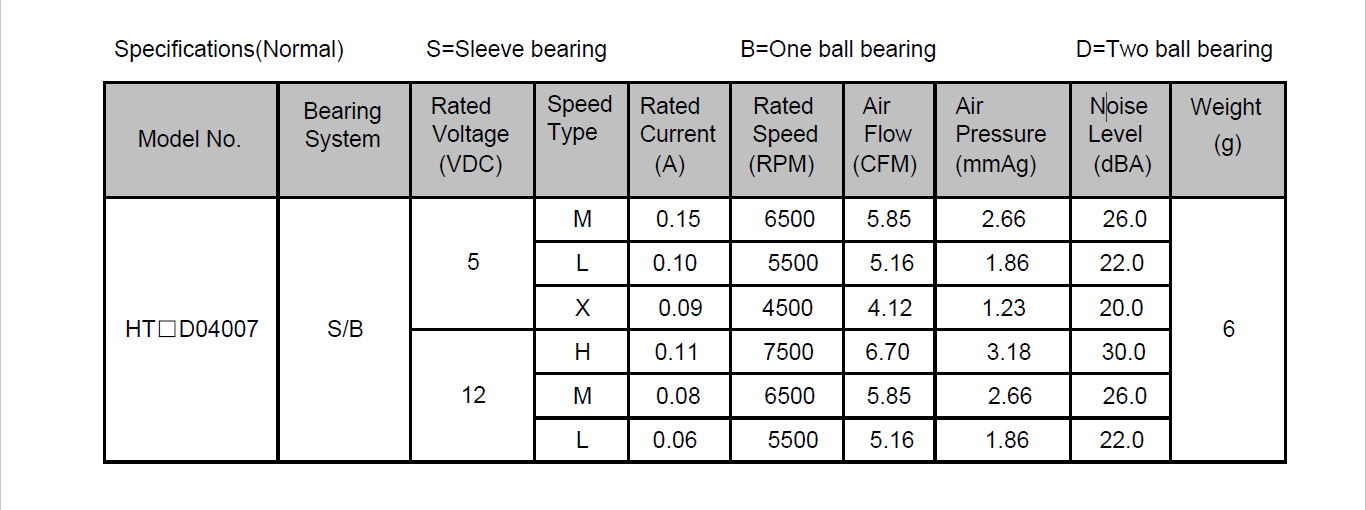

Specifications
---------------------------------------------------------------------------------------------------------------------------------------------------------------

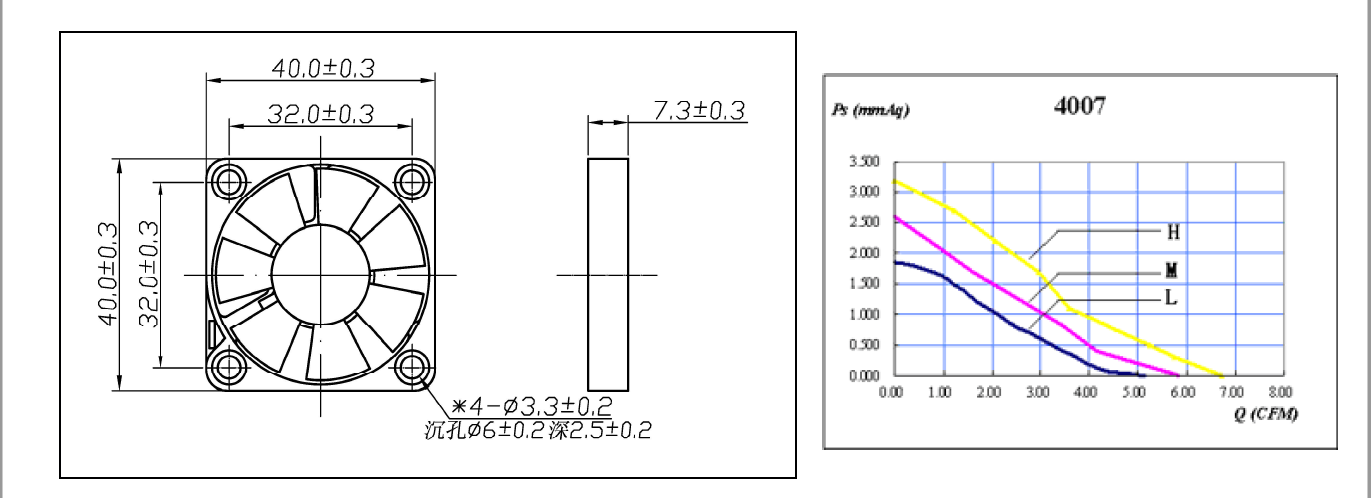

Frame Size:40*40*7mm
Voltage:5V/12V
Bearing type:sleeve bearing/ball bearing
Speed:5500rpm/6500rpm/7500rpm
Noise:22dBA/26dBA/30dBA
Safety Approvals:CE,TUV, UL, CUL
Frame Size:40*40*7mm
Voltage:5V/12V
Bearing type:sleeve bearing/ball bearing
Speed:5500rpm/6500rpm/7500rpm
Noise:22dBA/26dBA/30dBA
Safety Approvals:CE,TUV, UL, CUL
Insulation resistance:10M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+/-20%
Life expectancy(sleeve bearing):30,000hrs rain at 25 degree C relative humidity 65%+/-20%
Operation temperature:-10 to 70℃
Storage temperature:-40 to 75℃
--------------------------------------------------------------------------------------------------------------------------------------------------------------
