| Brand Name: | CHUNGFO/ HUI TONG |
|---|---|
| Certification: | CCC,CE,ROHS,UL |
| Voltage: | 5V/12V/24V |
| Speed: | 1400/1600/1800/2000/2400 |
| Air Volume: | 54.95~99.12CFM |
| Model Number: | D12025 |
| Place of Origin: | China (Mainland) |
Quick Details

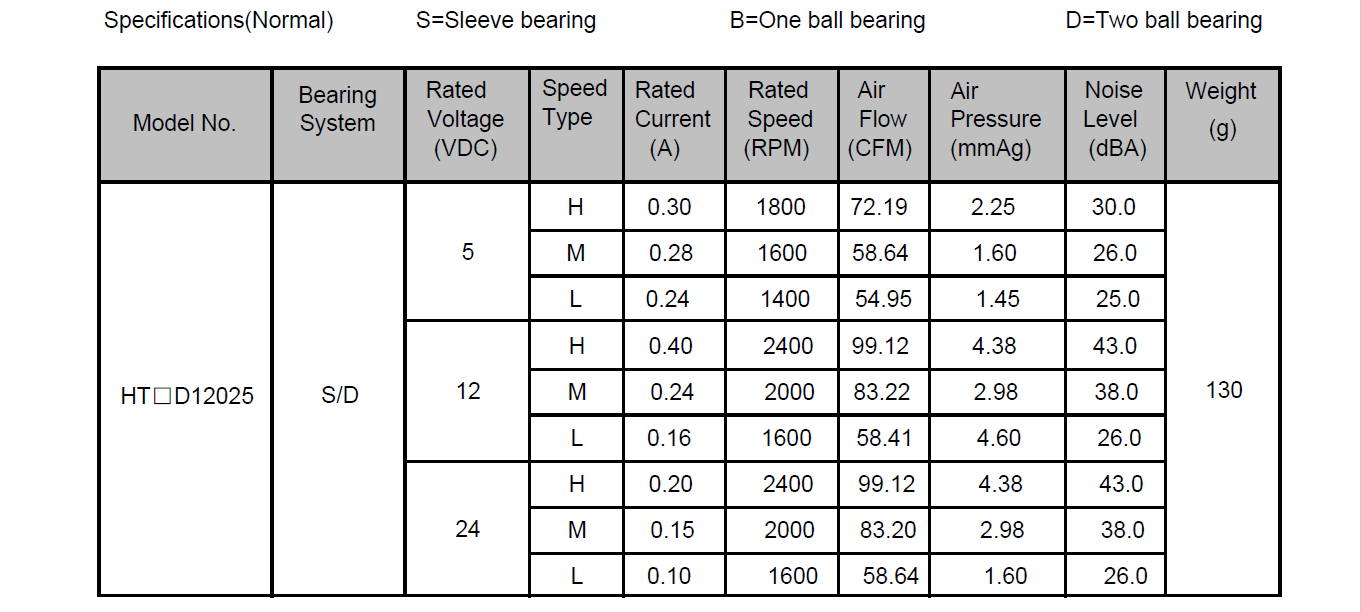

Specifications
Specifications

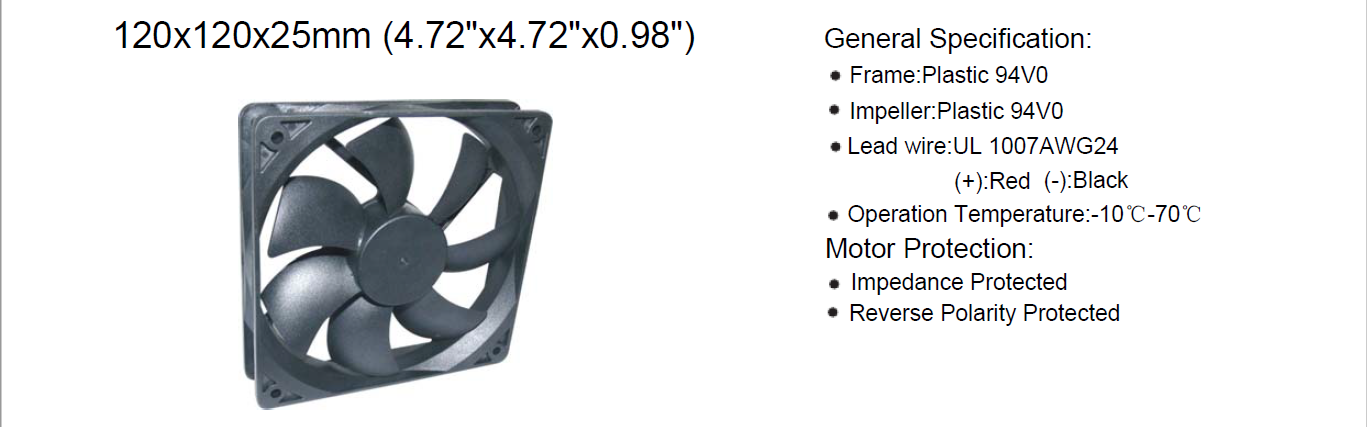

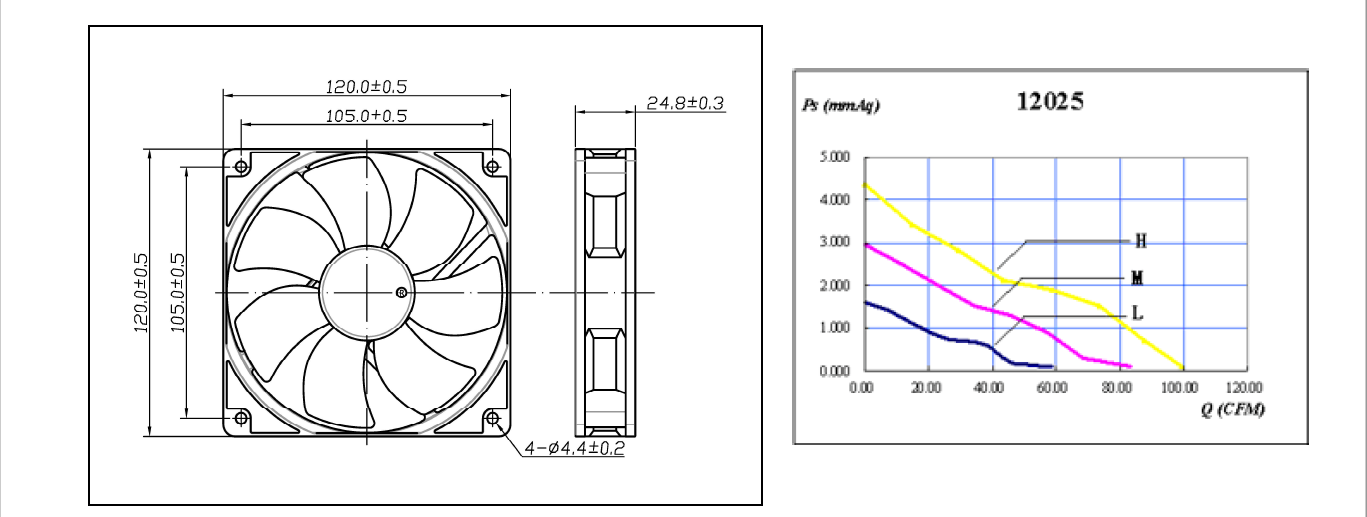

Frame Size:120*120*25mm
Voltage:5V/ 12V\24V
Bearing type:sleeve bearing/ball bearing
Speed: 1400rpm---2400rpm
Noise: 23Dba---43dBA
Frame:Plastic
Impeller:Plastic
Safety Approvals:CE, TUV, UL, CUL
Electric strength:1mAmax at 1000VAC for 1 min between lead wire and frame.
Insulation resistance:10M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+/-20%
Life expectancy(sleeve bearing):30,000hrs rain at 25 degree C relative humidity 65%+/-20%
Operation temperature:-10 to 70℃
Storage temperature:-40 to 75℃
