| Brand Name: | CHUNGFO/ HUI TONG |
|---|---|
| Certification: | CCC,CE,ROHS,UL |
| Voltage: | 5V/12V/24V |
| Speed: | 4200/5000/6000 RPM |
| Air Volume: | 13.2~16.61 CFM |
| Model Number: | D05015 |
| Place of Origin: | China (Mainland) |
Quick Details

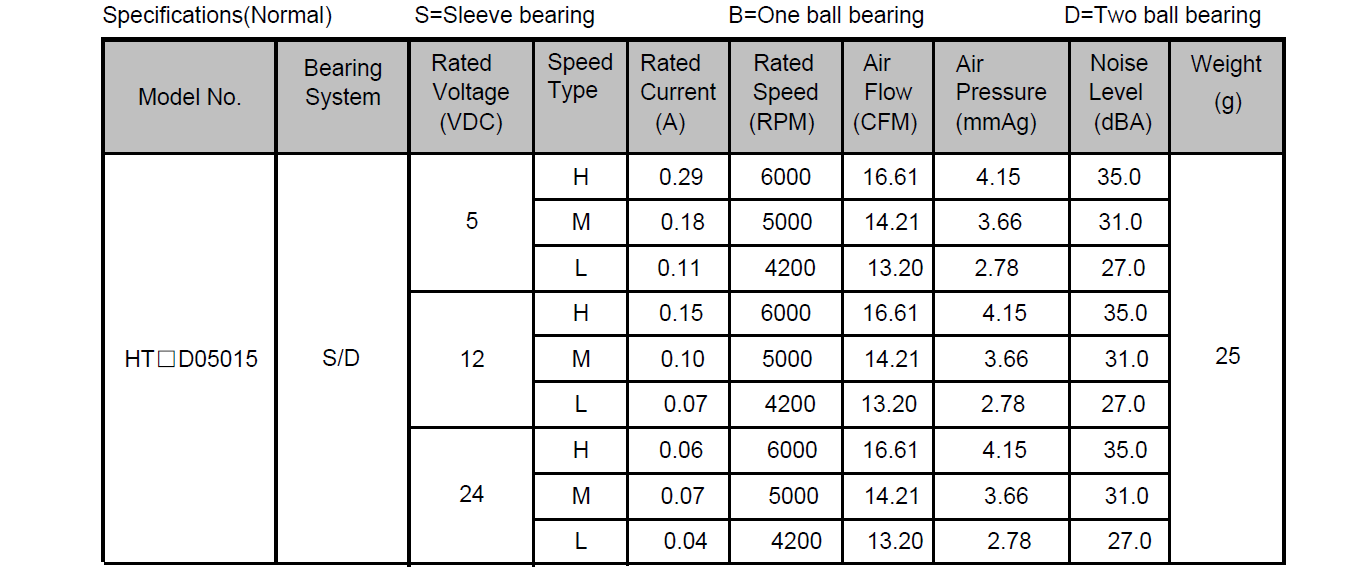

Specifications

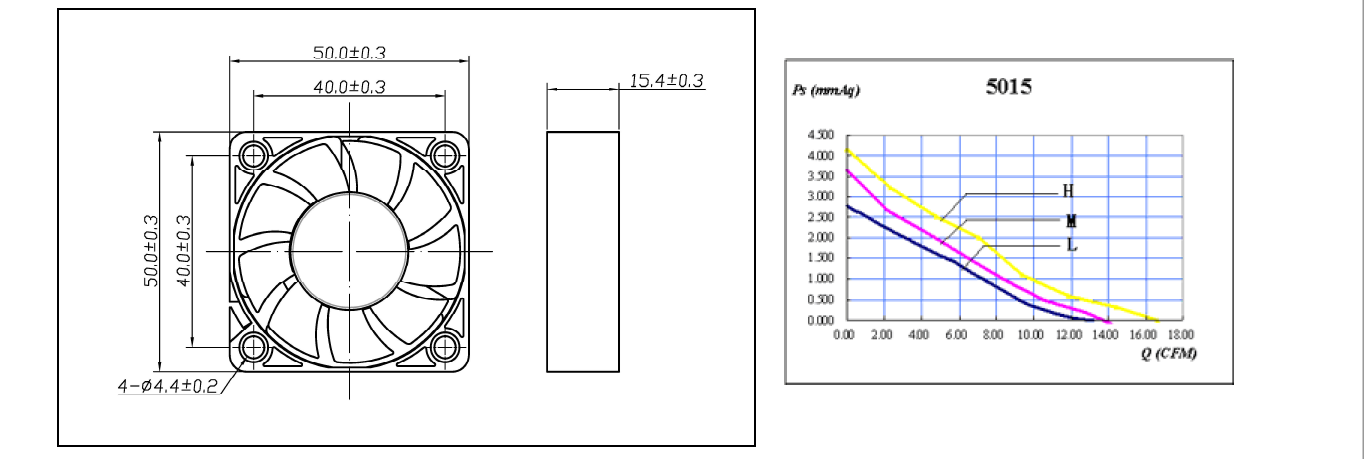

Frame Size:50*50*15mm
Voltage:5V/12V\24V
Bearing type:sleeve bearing/ball bearing
Speed: 4200rpm---6000rpm
Noise: 27Dba---35dBA
Frame:Plastic
Impeller:Plastic
Safety Approvals:CE, TUV, UL, CUL
Electric strength:1mAmax at 1000VAC for 1 min between lead wire and frame.
Insulation resistance:10M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+/-20%
Life expectancy(sleeve bearing):30,000hrs rain at 25 degree C relative humidity 65%+/-20%
Operation temperature:-10 to 70℃
Storage temperature:-40 to 75℃
