| Brand Name: | CHUNGFO/ HUI TONG |
|---|---|
| Certification: | CCC,CE,ROHS,UL |
| Voltage: | 110V/220V |
| Speed: | 2000/2500RPM |
| Air Volume: | 156.91~192.8CFM |
| Model Number: | A17051 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Specifications

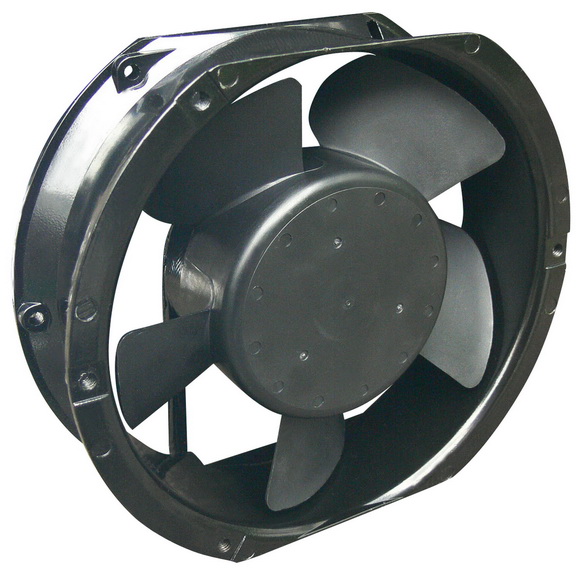

AC Fan/ AC Axial Fan A17051

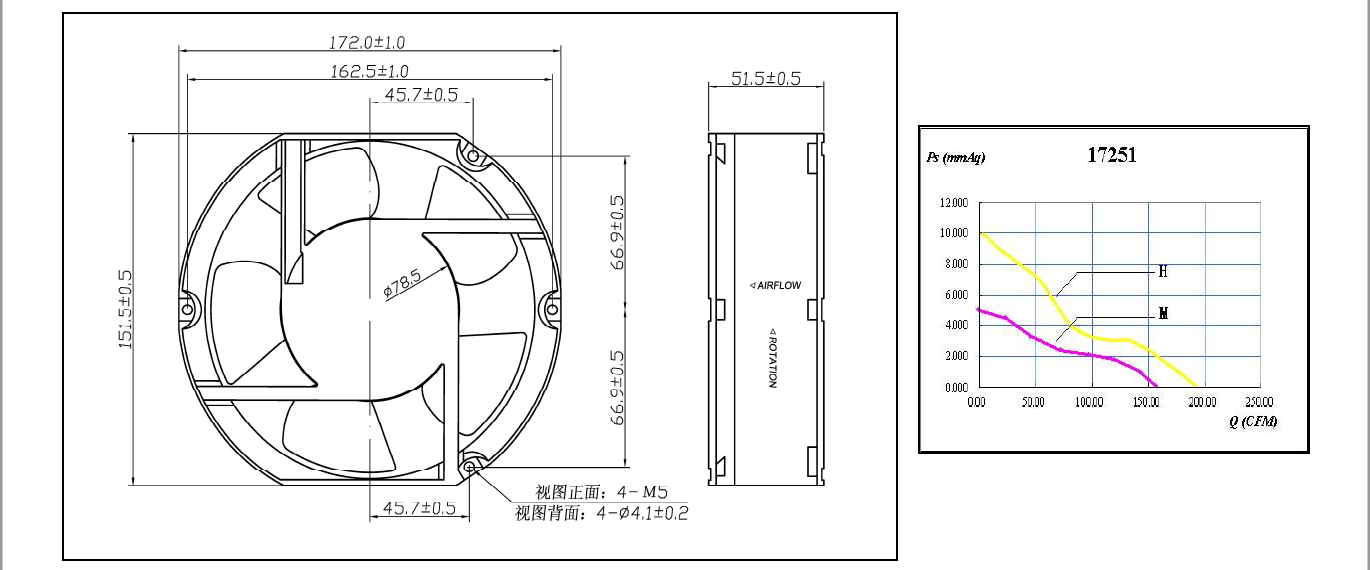

Frame Size:172*150*51mm
Voltage:110V 60Hz/220V 50Hz
Bearing type:sleeve bearing/ball bearing
Speed: 2000/2500RPM
Noise:40dBA~48dBA
Frame:aluminum alloy
Impeller:Plastic
Safety Approvals:CE, TUV, UL, CUL, CCC
Electric strength:AC1500V for 3 sec(0.5Ma allowable between lead and frame)
Insulation resistance:10M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+/-20%
Life expectancy(sleeve bearing):30,000hrs rain at 25 degree C relative humidity 65%+/-20%
Operation temperature:-10℃ to 70℃
Storage temperature:-40 to 75℃
