Product Main

Quick Details

Brand Name: XUSHENG
Temperature of Media: Medium Temperature
Material: Stainless Steel
Pressure: Medium Pressure
Standard or Nonstandard: Standard
Model Number: D001003001D
Place of Origin: China (Mainland)
Port Size: 1/2", 3/4"
Media: Water
Power: Pneumatic
Structure: Check
Material Quality: 304, 304L, 316L (1.4301, 1.4307, 1.4404)
Connection Ends: Threaded Triclamp, Welded
Size: 1/2", 3/4"
Gasket: EPDM, Silicone, PTFE in Accordance with FDA 17
Max. Pressure: 10bar 145psi
Temperature: 20degree Celsius~135degree Celsius

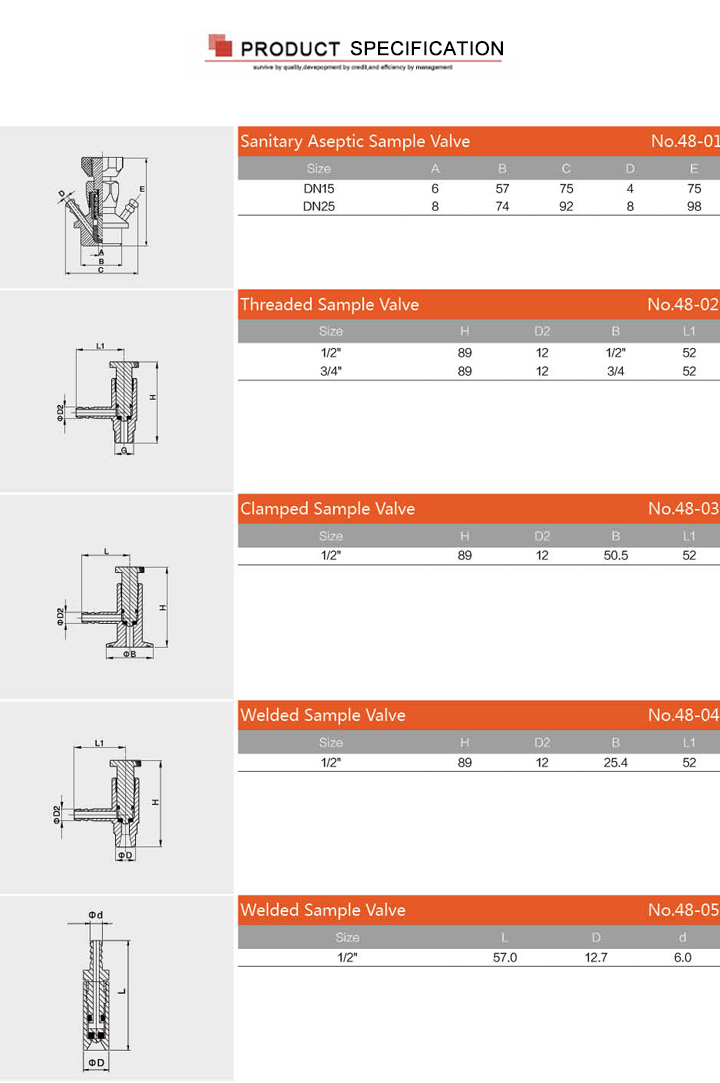

Specifications

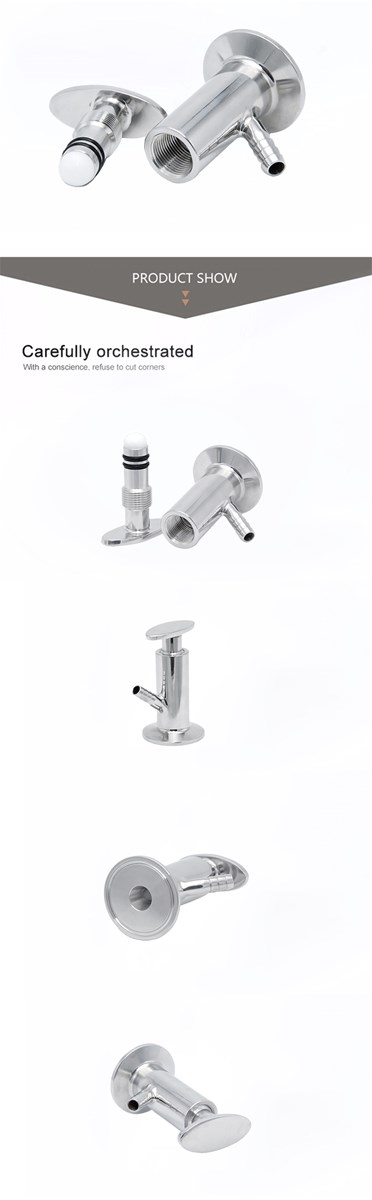

        Products Name:Sanitary Stainless Steel Ss304 Triclamp Sample Valve

        Ss304 triclamp sample valve
        Sanitary stainless steel ss304 sample valve




    Ss304 Triclamp



      Technical Parameter:

      Material of Product Wetted  316L (DIN-1.4404)
      Material of Non-product Wetted  304 (DIN-1.4301)
      Seal material PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2)
      All seal materials comply with FDA 177.2600.
      Continuous working temperature  -20oC +135oC (EPDM)
      Sterilization temperature  150oC (Max 20min)
      Working pressure  0~10bar
      Internal surface  Ra0.8μm
      External surface  Shot blasting
      Size 1/2" 3/4"


    Ss304 Triclamp

      Applications

      Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.



      Aseptic sampling valve has two configurations.

      1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.
      2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.



      Feature:

      1. 304 stainless steel,316L stainless steel
      2. Silicone O-ring plus plunger to assure a leak proof connection
      3. Surface finish polish to sanitary standards
      4. Recommended usage in wineries
      5. End connections available: clamp and NPT
      6. Sizes available: 1" clamp and 3/8" NPT



    Ss304 Triclamp

    Ss304 Triclamp

    Ss304 Triclamp

      Our Service:

      on Samples Buyer bear the air fee, but this fee will be reduced from order directly
      on after Sales Free replacement if there is any quality problem
      on Delivery Never delay delivery time
      on Materials Ensure material pure
      Ensure material pure Welcome  to order our products

      We specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer, pharmaceutical and other fields.We can quote you favourable
