Diaphragm Membrane Valve

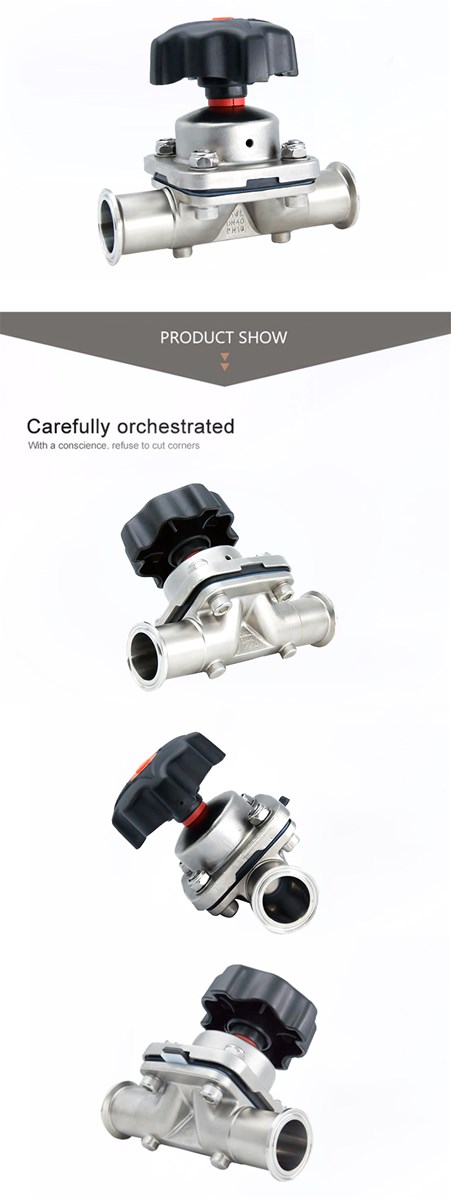

Manual Diaphragm Valve

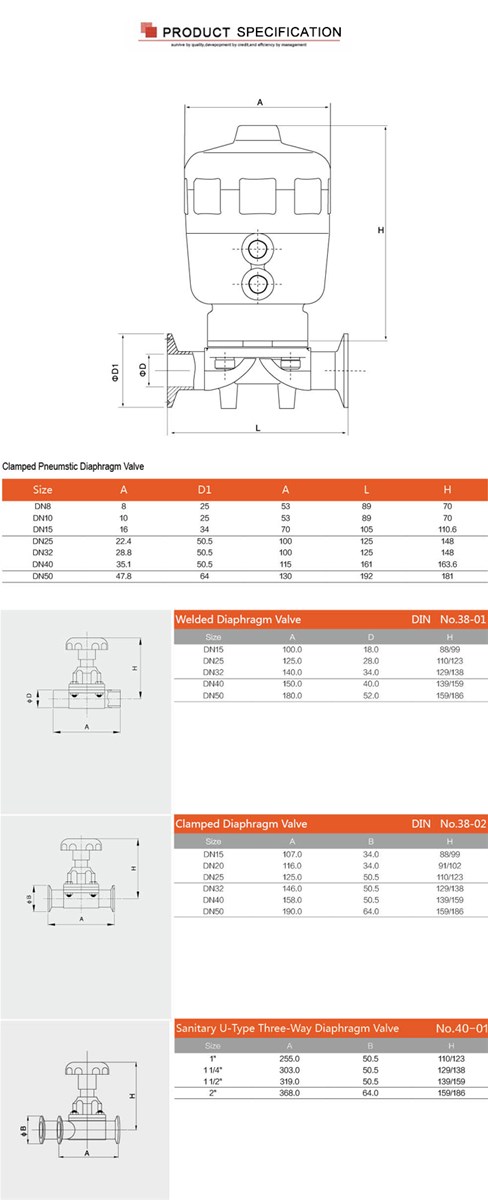

Technical Parameter:
| Valve Body Material |
SS316L |
| Availably standard |
3A/BPE/DIN/ISO/IDF/SMS |
| Availably size |
1"-3",DN20-DN65 |
| Seal Material |
PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON) |
| Availably connection |
Clamp/weld/thread/special connection |
| Operated |
Manual,Pneumatic |
| Max. Working Pressure |
10Bar |
| Availably structure |
Straight, tee, U-type, tank bottom |
| Max. Working Temperature |
120 degree C |
| Application scope |
Dairy,food, beverage, pharmacy, cosmetic, etc |
Applications
It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
Diaphragm seals the valve body and seat.the is no way to contact the environment.so this valve is suitable for asepsis process.When the valve is off.the pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.Forced towards to seat area of body center.so that to shut off the flow path to valve body.the relevant of valve body and pressure plate prevents the diaphragm pressing.the valve can be manual and air actuated,also can be operated by control top and soleniod valve.
