| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12months |
| Certification: | ISO9001 |
| Brand Name: | YH |
| Condition: | New |
| Weight: | 500KGS |
| Dimension(L*W*H): | 1400mmx550mmx850mm |
| Rated Power: | 4KW |
| Voltage: | Three phase 220VAC/380VAC 415VAC or customized |
| Model Number: | GQ40 GQ50 GQ60 |
| Place of Origin: | China (Mainland) |
| Motor Speed: | 2880rpm |
Quick Details
Specifications

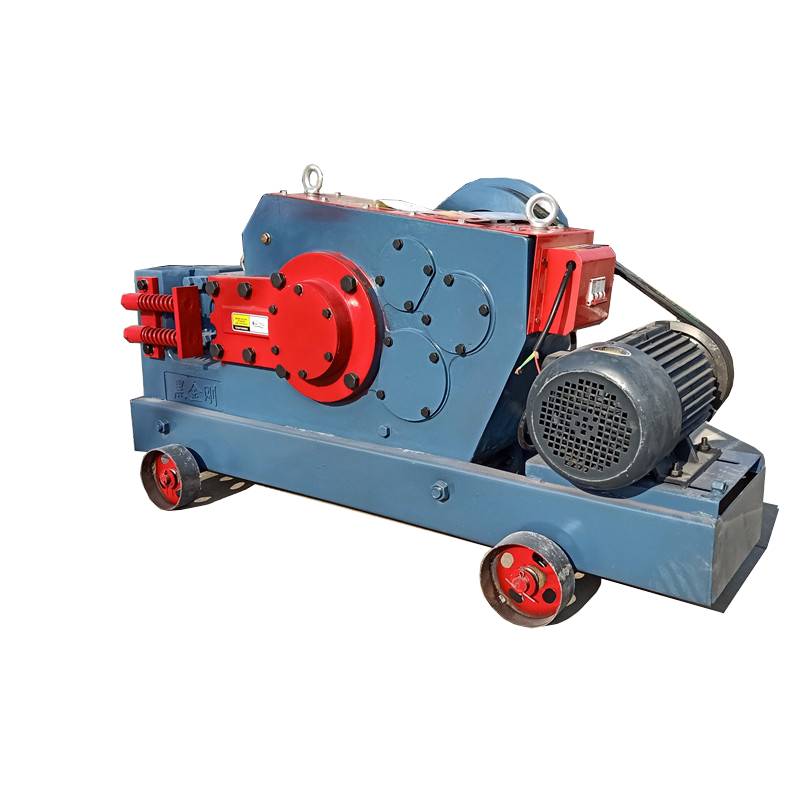

Steel Bar Cutting Machine is suitable for all kinds of ordinary carbon steel in reinforced concrete construction, hot rolled round steel, rebar, and also can cut off the flat steel, Angle steel and square steel.
Advantage
1.Small size,light weight,compact structure,solid and reliable
2.Good lubrication performance
3.the function small loss
4.Easy to move
Any questions of steel bar cutting machines,please contact with Lucy+8613165183070
Technical Parameter
| the DIA. of CUTTING REBAR | Φ6- Φ40/Φ6- Φ42/Φ6- Φ45/Φ6- Φ50/Φ6- Φ55/Φ6- Φ60mm | ||||||
| the SIZE of FLAT STEEL | 70X15mm /80X18mm | ||||||
| the SIZE of SQUARE STEEL | 32X32mm / 40X40mm | ||||||
| the SIZE of ANGLE STEEL | 50X50mm / 63X63mm | ||||||
| FREQUENCY of CUTTING | 32time/min | ||||||
| MOTOR POWER | 3KW | ||||||
| MOTOR SPEED | 2880r/min | ||||||
| DIMENSION | 1190mmX450mmX680mm | ||||||
| NET WEIGHT | 500KGS | ||||||
