| Brand Name: | COmpass |
|---|---|
| Temperature of Media: | Normal Temperature |
| Material: | Stainless Steel |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | CM-BV332 |
| Place of Origin: | China (Mainland) |
| Port Size: | 38.1mm |
| Media: | Water |
| Power: | Pneumatic |
| Structure: | Butterfly |
| Material Quality: | SS304, SS304L ,SS316, SS316L |
Quick Details
Specifications

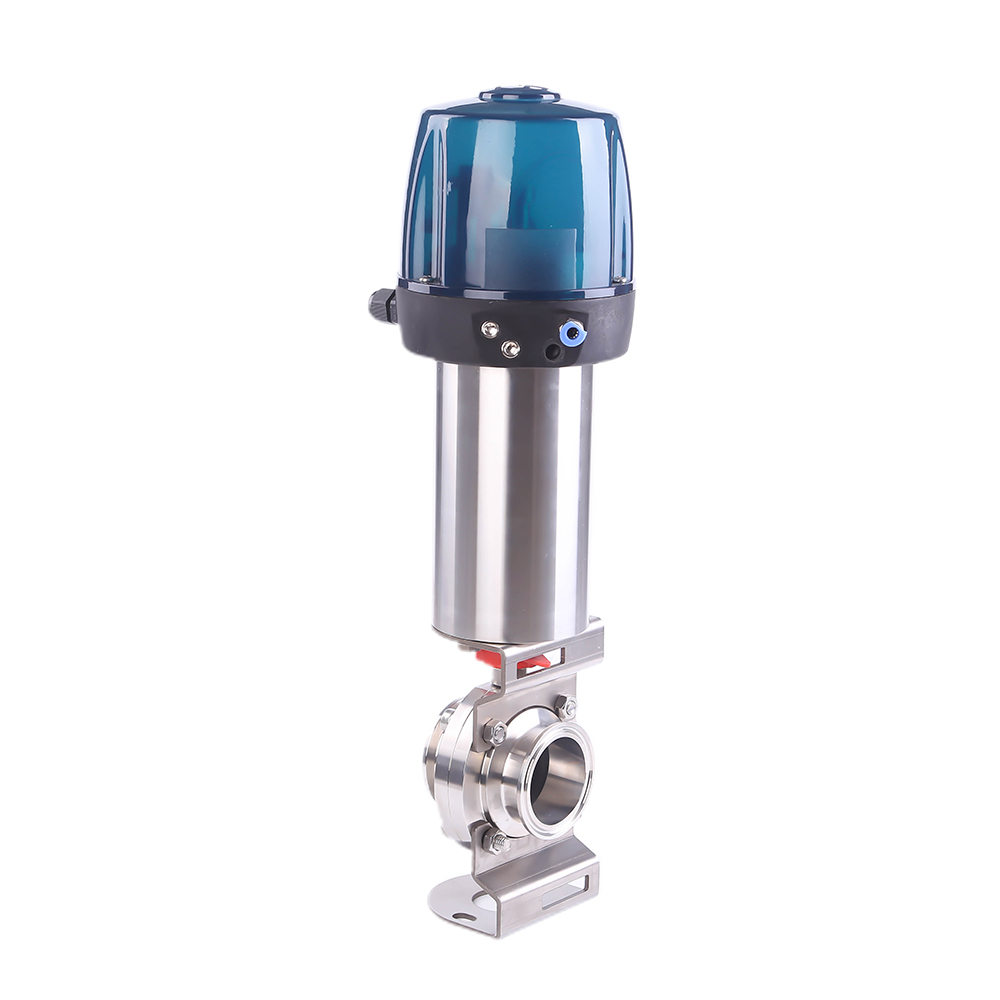

DIN Stainless Steel Pneumatic Clamp Butterfly Valves with C-top Head
Applications:
Butterfly valves, no matter manually or automatically, can be used in most fluid product applications in the food-processing, pharmaceutical and chemical industries.
Technical Data
| Standard | DIN, 3A, SMS, RJT |
| Flow Medium Parts | 304, 304L, 316L(1.4301, 1.4307, 1.4404) |
| Port Size | Dn10-150 or 1/2"-150 |
| Way of Connection | Weld, Male, Clamp, Flange |
| Gasket for butterfly valve | Silicone, EPDM, Viton, NBR |
| Application | It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc |
| Working principle | Remote-controlled operation by the driving gear or manual operation by handle. |
| Three drive forms | Normally closed, normally opened and opened and closed by two air flues seperately. |
| Handle | Metal handle, reinforced nylon handle |
| Adjustable handle, built to order according to users' request. | |
| Advantage | 1. Sanitary condition passed FDA Certification |
| 2. with strong resistance to acid, alkali and high temperature | |
| 3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages | |
| 4. Appearance desigh: Keep pace with international latest designs | |
| 5. Service life: Comparable to imported butterfly valve, with 18months warrenty for normal use |
