| Brand Name: | Compass |
|---|---|
| Temperature of Media: | Normal Temperature |
| Material: | Stainless Steel |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | CM-BV240 |
| Place of Origin: | China (Mainland) |
| Port Size: | 4 Inch |
| Media: | Water |
| Power: | Manual |
| Structure: | Ball |
| Stainless Steel: | AISI304, AISI316L |
| Size: | Dn25-100 & 1"-4" |
| Connection Standard: | welding Threading Clamping |
| Working Principal: | Manual Operation or Driving Device Operation |
| Temperature: | 100 Celsius Degree |
| Type: | Flexible Ball Valve |
| Working Pressure: | 8bar,0.08MPa |
| Temperature Range: | -20 Degree Celsius to 120 Degree Celsius |
| Types: | Bypass-Valve |
Quick Details
Specifications

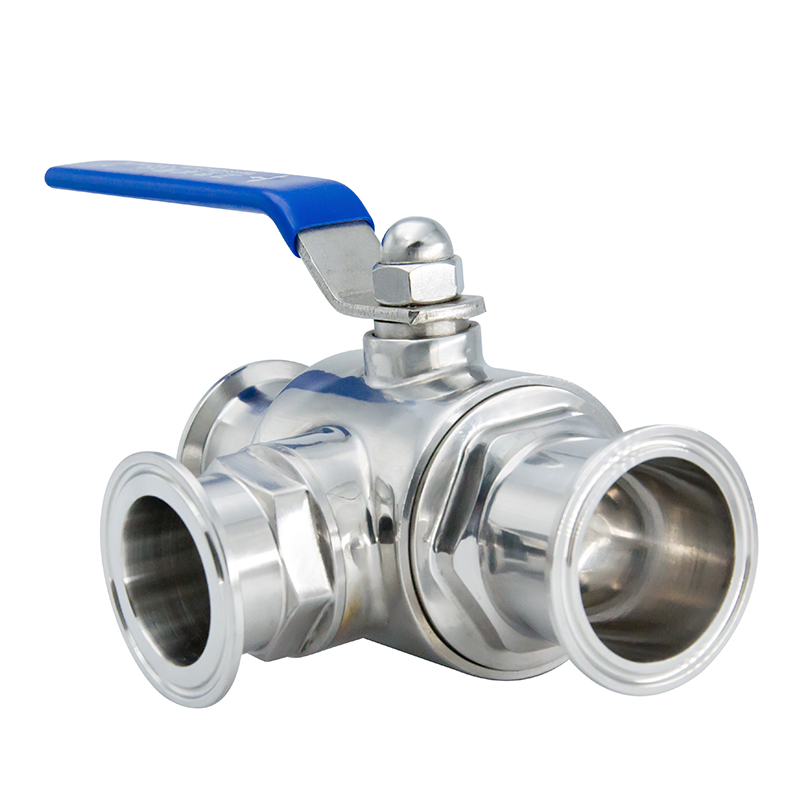

SMS 101.6mm Food Grade Stainless Steel Three Ways Ball Valves with Tri-clover Ends
Applications:
Sanitary Stainless Steel Ball Valves is widely applied to pipeline and equipment control.It is widely used in brewing industry.
Technical Data
| Material | AISI304 AISI316L |
| Specification | DN25-100 & 1"-4" |
| Standard | ISO, DIN, 3A,SMS etc |
| Connection | Welded, Clamped, Threaded, Flanged |
| Working Principal | Manual operation or driving device operation |
| Flow pattern | Straight |
| Seat material | PTFE, PCTFE, PEEK or upon your request |
| Orifice size | 2mm to 4.8mm |
| Body construction | 3-piece precision cast body |
| Temperature | -20degree celsius~135degree celsius |
