| Brand Name: | Firstar |
|---|---|
| Material: | Alumina Ceramic |
| Application: | Industrial Ceramic |
| Type: | Ceramic Parts |
| Color: | White |
| Model Number: | 69091200 |
| Place of Origin: | China (Mainland) |
| Al2O3: | 92/959/99% |
| G/Kg.H: | <0.03 |
| Density: | >3.90 |
| Gpa: | >1400 |
| Shipping Way: | Fob, CIF, DDP, DDU etc |
| Size: | Customzied |
| Certificate: | ISO |
Quick Details
Specifications
Wholesale Wear Abrasion Resistant High Alumina Rubber Ceramic Lining
Product description:
Also named wear ceramic parts, wear rubber ceramic plate, wear-resistant ceramic pads.

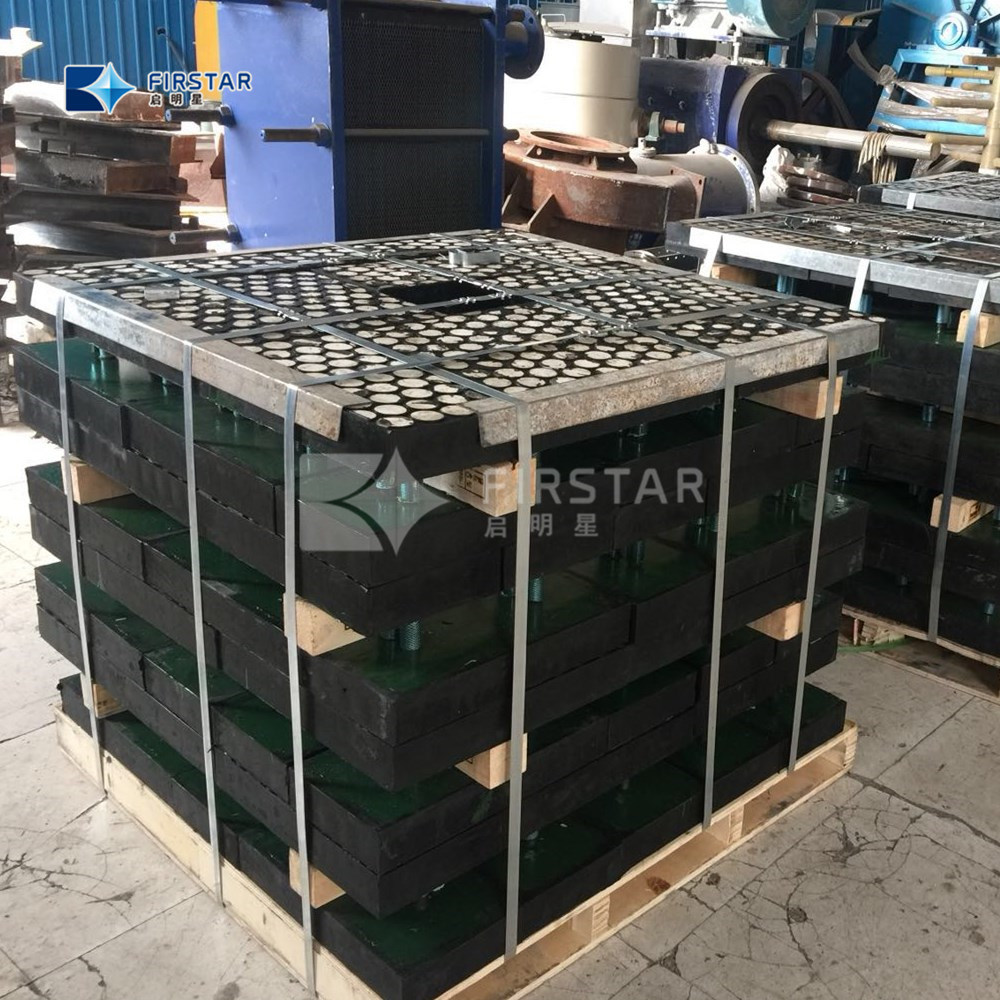

Ceramic rubber composite pads&plate is the use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of the equipment with the adhesive paste. As customers' requirement, it also can be vulcanized together with a steel plates, with bolts or not.
Features:
It combines wear-resistance of ceramic and impact-resistance of rubber, apply to convey systems equipment work under normal temperature,and can bear some impact.
Applications:
Ppes and tanks
Deflectors
Launders
Spill Face Sloping Walls&Loading Chutes
Bins&Hoppers
Mill feed components
Different kinds of products:Ceramic Mosaic Pieces, Ceramic Pipe Tiles, Ceramic Curved Tiled(with or witout holes), Ceramic Tapered Tiles, Ceramic Cylinders, Stell Lined with Ceramic Tiles, Irregular Shaped Tile, Clipping Ceramic Tiles Interlocking Bricks.
We have so many kinds of size.and we are also accept customized.
Mineral Processing equipment operates in some of the harshest and remote locations. It is crucial to the Mineral Processing industries that this equipment continues to operate efficiently and its lifecycle is maximised to minimise down time. by appropriately protecting equipment from the extreme wear caused by the high speed and flow rates of ore when processed as a slurry ensures better equipment longevity. Slurry is highly abrasive and can not only cause wear damage to wet processing equipment but also with the inclusion of chemicals and heat, there is constant risk of corrosion and dangerous leakage.
Wear Protection ceramic Linings are used throughout Mineral Processing to protect the steel surfaces of equipment from wear and corrosion. They are used on a range of equipment including pipes, tanks, chutes, pumps, flotation cells, thickeners, launders and feed spouts or chutes.
Also named wear ceramic parts, wear rubber ceramic plate, wear-resistant ceramic pads.
Ceramic rubber composite pads&plate is the use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of the equipment with the adhesive paste. As customers' requirement, it also can be vulcanized together with a steel plates, with bolts or not.
Features:
It combines wear-resistance of ceramic and impact-resistance of rubber, apply to convey systems equipment work under normal temperature,and can bear some impact.
Applications:
Ppes and tanks
Deflectors
Launders
Spill Face Sloping Walls&Loading Chutes
Bins&Hoppers
Mill feed components
| S.No. | Material | Attributes | Properties |
| 1 | Ceramic Tiles |
Material | 92%, 95%, T95%,96%, ZTA |
| 2 | Rubber | Component | Natural rubber, nitrile-butadiene rubber ,Flame Retardant ,others |
| Density | ~1.4g/cm3 | ||
| Tensile strength at break | ≥15Mpa | ||
| Elongation at break | ≥250% | ||
| Shore Hardness | 45-65 | ||
| Adhesive between tile and rubber | 1.2-3.0 Mpa | ||
| Adhesive between rubber and equipment | ≥3.5 Mpa | ||
| Thermal conductivity.(normal temperature) | 2w/mk | ||
| Aging period | ≥15 Years | ||
| Working temperature | -50C - 200C | ||
| 3 | Steel plate | Material | Q235A |
| Density | 7.85g/cm3 | ||
| Thickness | 5-6mm | ||
| 4 | Adhesive | Appearance | Brown glutinous liquid |
| Solid content | 20±3% | ||
| Viscosity | ≥2.5 Mpa | ||
| Peel strength | 48h N/2.5cm≥120 | ||
| Compressive strength | ≥850 Mpa | ||
| Working temperature | -20C - 100C |
| Whole Plate (mm) | 150x300, 300x300, 450x000, 500x500, 600x450 etc. |
| Ceramic Size (mm) | Square Tile: 10x10, 20x20, 33x33, 50x50, 100x100, 150x100,etc. |
| Hexagonal Tile: 12x3, 12x6, 19x7, 19x12.5, 19x25,etc. | |
| Locking block with lock and groove: 38x38, 40x40, 30x30,etc. | |
| Dimple Tile: 20x20 with 5 dimples, 20x30 with 18 dimples, 20x30 with 13 dimples, 20x20 with 1 semi-spherical surface | |
| Ceramic Thickness (mm) | 3-75mm |
| Alloy Steel Size (mm) | Thickness: 3-10mm |
| Rubber Thickness (mm) | Depends on the impact stress expected. |
Different kinds of products:Ceramic Mosaic Pieces, Ceramic Pipe Tiles, Ceramic Curved Tiled(with or witout holes), Ceramic Tapered Tiles, Ceramic Cylinders, Stell Lined with Ceramic Tiles, Irregular Shaped Tile, Clipping Ceramic Tiles Interlocking Bricks.
We have so many kinds of size.and we are also accept customized.
Mineral Processing equipment operates in some of the harshest and remote locations. It is crucial to the Mineral Processing industries that this equipment continues to operate efficiently and its lifecycle is maximised to minimise down time. by appropriately protecting equipment from the extreme wear caused by the high speed and flow rates of ore when processed as a slurry ensures better equipment longevity. Slurry is highly abrasive and can not only cause wear damage to wet processing equipment but also with the inclusion of chemicals and heat, there is constant risk of corrosion and dangerous leakage.
Wear Protection ceramic Linings are used throughout Mineral Processing to protect the steel surfaces of equipment from wear and corrosion. They are used on a range of equipment including pipes, tanks, chutes, pumps, flotation cells, thickeners, launders and feed spouts or chutes.
