| Brand Name: | YRT |
|---|---|
| Wavelength: | 1320 |
| Data Rate: | 300 |
| warranty: | 12month |
| Connector: | sc/st/fc/lc |
| Model Number: | sm |
| Place of Origin: | China (Mainland) |

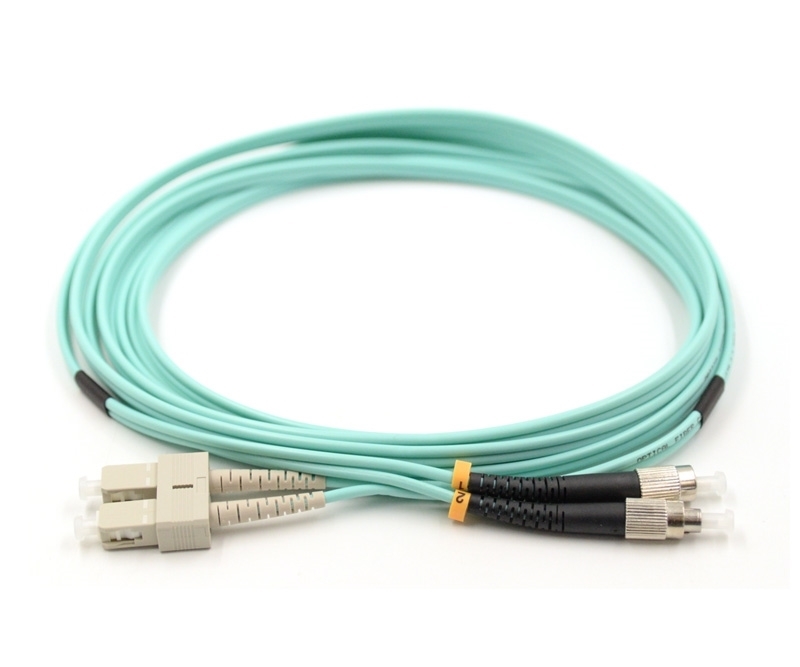

| Item: | Om3 patch cord(simplex/duplex) |
| Fiber type: | Multimode OM3 (50/125) |
| Jacket material: | LSZH/PVC |
| Connector type: | SC/FC/LC/ST APC/UPC |
| Ferrule materials: | ceramic |
| Cable dimension: | 2.0mm,3.0mm |
| Package: | Poly bag |
Quick Details
Specifications
0M3 patch cord
Item: Om3 patch cord(simplex/duplex)
Fiber type: Multimode OM3 (50/125)
Jacket material: LSZH/PVC
Connector type: SC/FC/LC/ST APC/UPC
Specification
Item |
Om3 patch cord(simplex/duplex) |
Fiber type |
Multimode OM3 (50/125) |
Jacket material |
LSZH/PVC |
Connector type |
SC/FC/LC/ST APC/UPC |
Ferrule materials |
Ceramic |
Cable dimension |
2.0mm,3.0mm |
Cable color |
aqua |
Testing wavelengths |
850±30/1300±30nm |
Insertion Loss(dB) |
≤ 0.3dB |
Return Loss(dB) |
≥35dB |
Operating Temperature (° C) |
-10~ + 70 |
Storage Temperature (° C) |
-40 ~ +85 |
Package |
Poly bag |
Feature
01Low insertion loss
02Good reproducibility
03High return loss
04Good mutual insert performance
05Good temperature stability
