2 LAN port high speed 4G Router 4G SIM WiFi Router

with the advanced 4G LTE technology, what you need is to insert relevant SIM card, then you can transmit 3G/4G signal to WiFi dignal and, there are ADSL Internet access wired a variety of ways. It applies a variety of application environment provides network connections and data for industrial application. Application Electronics, Oil industry, Mineral, Finance, Communication, Public security, Heating, Industrial control, Meteorology, Water conservancy, Public transportation, Local council and so on.





Product picture:





WHY CHOOSE OUR 3G 4G Industrial WiFi Router

1,3G/4G Signal to LAN insert relevant SIM card, then you can transmit 3G/4G signal to LAN

2,3G/4G Signal to WiFi Signal  insert relevant SIM card, then you can transmit 3G/4G signal to WiFi dignal

3,Hardware Watch Dog Design support anticrash functions. Protect equipment work stable and reliable

4,Support 3G/4G 3G 4G (WCDMA/CDMA/TD-SCDMA/LTE5/LTE7)

5,Support VPN  VPN, VPDN, PPTP Client, L2TP Client

6,Support Multiple Interfaces add UART port, GPIO port and micro USB port, multi interface to meet your different needs

7.Data Cat 4 Cat9 150mbps/450mbps options

   Antenna:Dual 4G Antenna+1 WiFi Antenna



FEATURES

 Adopt high grade industrial wireless module.

 Support 3G/4G (WCDMA/CDMA/TD-SCDMA/LTE5/LTE7)

 Adopt metal case IP30 protection grade.

 Wide voltage and current input:DC7-35V/2A.

 Anti-reverse power connection protectionsurge protection, ESD antistatic protection.

 Software and hardware watch dog design, support anticrash functions. Protect equipment work stable and reliable.

 Automatic detection when network disconnect, automatically restart when dailing fails scheduled reboot etc.

 Serial transparents transmission function, it can access to order control mode by serial port, control router and other equipment.

 SMS contol dialing, offline and restart function.

 Support socket server and customer end mode.

 Support different types of DDNS service.

 Port mapping, DMZ host function.

 Support VPN, PPTP client, L2TP client.



4G Frequency options:



Module: Quectel	Quectel 4G EC-20/21/25A/E/C/CE
4G frequency band:	EC25-E FDD LTE: B1/B3/B5/B7/B8/B20 2100/1800/850/2600/900/800MHZ TDD LTE: B38/B40/B41 2600/2300/2500MHZ WCDMA: B1/B5/B8 2100/850/900MHZ GSM:B3/B8 900/1800
	EC25-A FDD LTE: B2/B4/B12 1900/1700/700MHZ WCDMA: B2/B4/B5 1900/1700/850MHZ
	EC25-AU FDD LTE: B1/B3/B4/B5/B7/B8/B28 2100/1800/1700/850/2600/900/700MHZ TDD LTE: B40 2300MHZ WCDMA: B1/B2/B5/B8 2100/1900/850/900MHZ GSM:B2/B3/B5/B8 1900/1800/850/900MHZ
	EC25-J LTE: B1/B3/B8/B18/B18/B19/B26 2100/1800/900/850/800/850 MHZ TDD LTE: B41 2500MHZ WCDMA: B1/B6/B19 2100/850/800MHZ GSM:B3/B8 900/1800
	EC25-V FDD LET:B4/B13 1700/700MHZ
Specifications	LTE LTE-FDD Max 150Mbps (DL) Max 50Mbps (UL) LTE-TDD Max 130Mbps (DL) Max 35Mbps (UL) DC-HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL) UMTS Max 384Kbps (DL) Max 384Kbps (UL) TD-SCDMA Max 4.2Mbps (DL) Max 2.2Mbps (UL) EDGE Max 236.8Kbps (DL) Max 236.8Kbps (UL) GPRS Max 85.6Kbps (DL) Max 85.6Kbps (UL)

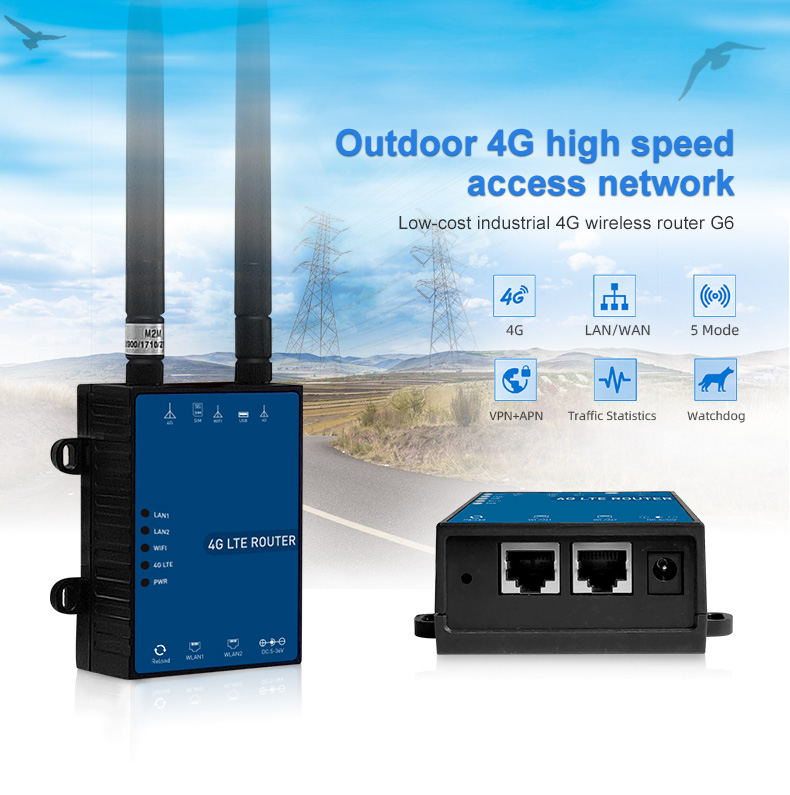

4G Router G6 (support SMS function)



1. THe drop ANd REcharge FUnction:

Network disconnection self-test repair function: When the device is off the public network, it will be detected every 2 minutes, and it will automatically reconnect to the registration dial (if the SIM card has no traffic, it will automatically detect the dial without manual restart after the SIM card recharged) )



2. NEtworking MOde SElection:

2:1 automatic networking mode (in the automatic networking mode, if WiFi and 4G exist at the same time, it will automatically set up the WiFi network priority. If it detects that the WiFi network does not go to the Internet, it will automatically connect to the 4G network)

2:2 3G/4G mode: fixed 3G/4G Internet access

2:3 WiFi mode: You can choose the WiFi account and enter the password, it will automatically connect to the Internet on the WiFi network.



3. SSID can be set to be hidden or enabled, and the SSID name password can be modified.



4.Relay function (INTERNET WiFi) function, this function is when external WiFi Internet access, and directly use external WiFi to access the Internet, then it will not use 4G network. Function introduction:

You can use WiFi, WLAN or USB connect to the computer, then enter the browser: 192.168.100.1





Feature:

WiFi	Protocal standard WiFi:2.4G WiFi rate:IIEEE 802.11 b/g/n Wireless standard Encryption security:64/128-bit WEP(Wired Equivalent Privacy) WPA&WPA-PSK&WPA2-PSK
Hardware perfomance	CPU:Qualcomm Qua9531-BL3A Flash/RAM:8M/64M OS:Linux

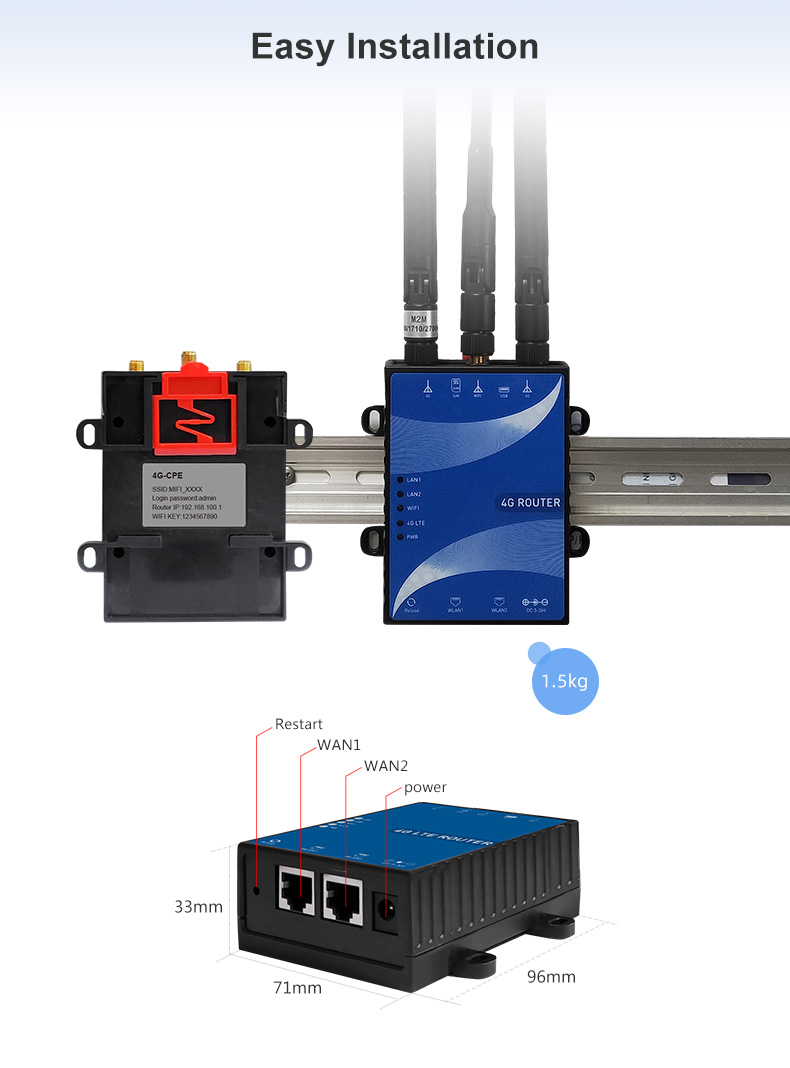

Interface	WAN:10/100M WAN/LAN(RJ45 Gatewayx2) Reset: A reset button Antenna:3G/4G(SMA)/WiFi(SMA) LED: Power-SYS-LAN-WiFi-3G/4G SIM Card:1.8/3.3V SIM
Characteristics	Advanced firewall:Network Address Transiation(NAT) STATE full Packet Inspection Media access control: CSMA/CA with ACK VPN protocol: support PPPTP,L2TP Dhcp service: Build-in DHCP(Dynamic Host Configuration protocol) Other agreement: ppp,ppoe,ddns,icmp,vrrp
Power supply	Default input voltage: DC12V2A Input Valatge range: 5-35VDC Power consumption:<260mA@12VDC  >500mA@12VDC  320mA@12VDC

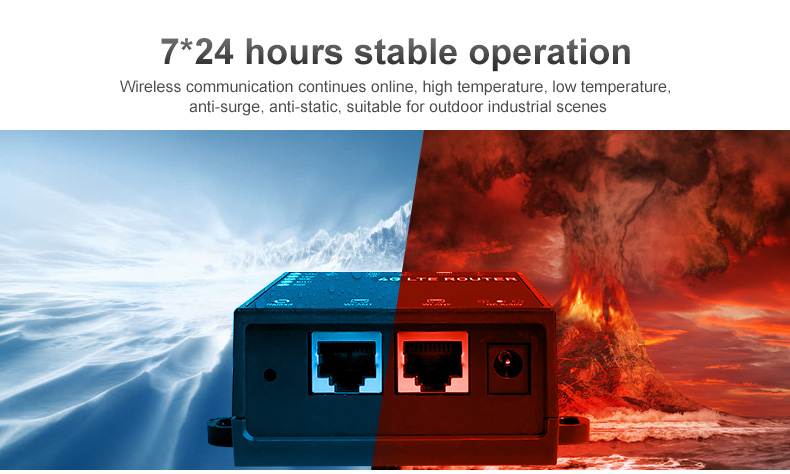

Physical Characteristics	Operating temperature:-40 to 70 degrees Relative humidity:95% Size:66x83x180mm Weight:220g
