| Brand Name: | Firstar |
|---|---|
| Material: | Alumina Ceramic |
| Application: | Industrial Ceramic |
| Type: | Ceramic Plates |
| Color: | White |
| Model Number: | 69091200 |
| Place of Origin: | China (Mainland) |
| Al2O3: | 92/959/99% |
| G/Kg.H: | <0.03 |
| Density: | >1.4 |
| Ceramic Mohs Hard Ness: | 9 |
| Shipping Way: | Fob, CIF, DDP, DDU etc |
| Size: | Customzied |
| Certificate: | ISO |
| Key Words: | Ceramic Rubber Liner |
| Quality: | High Quality |
Quick Details
Specifications
Chute lining, composite wear liner, ceramic rubber liner, ceramic wear panel, ceramic wear plate, ceramic lining, ceramic rubber lining, wear liner, rubber lining, rubber ceramic liner, conveyor skirt liner, rubber wear plate, rubber wear plate, rubber wear lining, ceramic impact panel, rubber sheet.
Product description:
Also named wear cermaic parts, wear rubber ceramic plate, wear resistant ceramic pads.

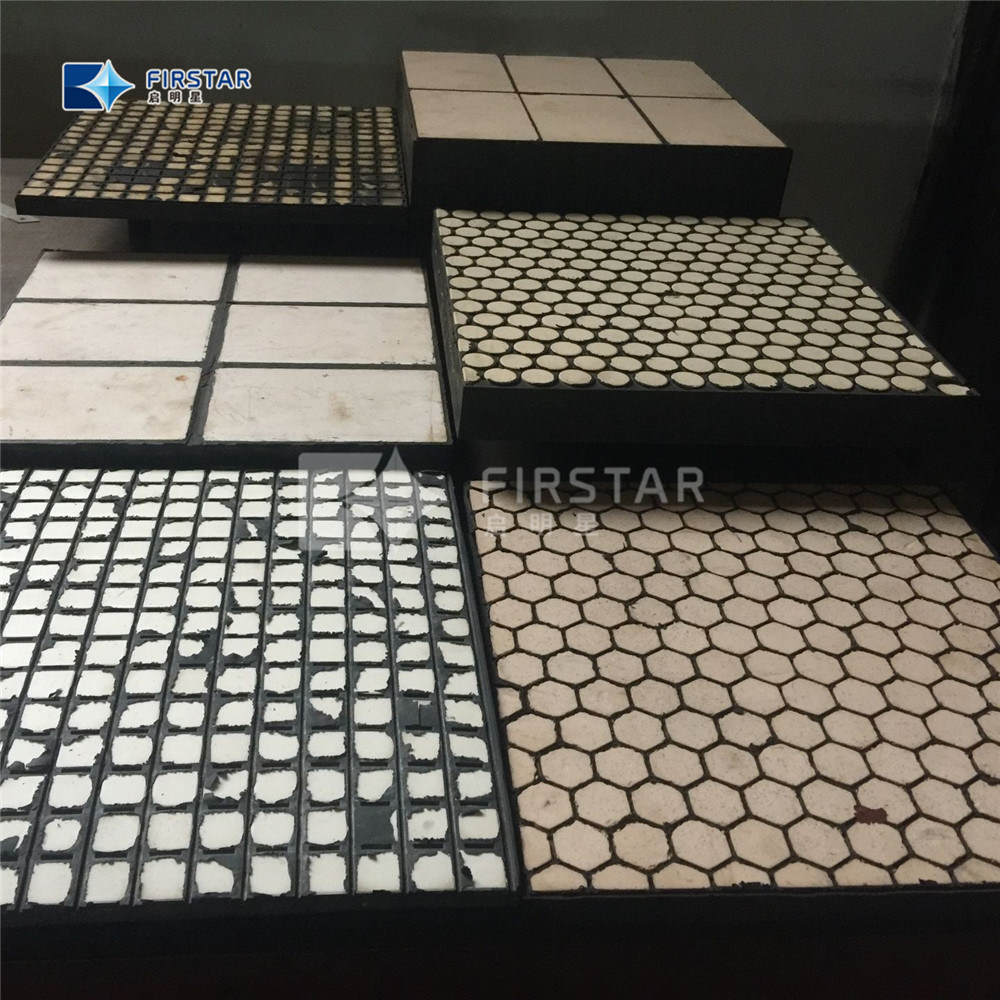

Ceramic rubber composite pads&plate is use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of equipment with the adhesice paste.As customers' requirment, it also can be vulcanized together with steel plate, with bolts or not.
Features:
It combines wear-resistance of ceramic of ceramic and impact-resistance of rubber, apply to conveying systems equipment work under normal temperture,and can bear some impact.
Applications:
Ppes and tanks
Deflectors
Launders
Spill Face Sloping Walls&Loading Chutes
Bins&Hoppers
Mill feed components
| S.No. | Material | Attributes | Properties |
| 1 | Ceramic Tiles |
Material | 92%, 95%, T95%,96%, ZTA |
| 2 | Rubber | Component | Natural rubber, nitrile-butadiene rubber ,Flame Retardant ,others |
| Density | ~1.4g/cm3 | ||
| Tensile strength at break | ≥15Mpa | ||
| Elongation at break | ≥250% | ||
| Shore Hardness | 45-65 | ||
| Adhesive between tile and rubber | 1.2-3.0 Mpa | ||
| Adhesive between rubber and equipment | ≥3.5 Mpa | ||
| Thermal conductivity.(normal temperature) | 2w/mk | ||
| Aging period | ≥15 Years | ||
| Working temperature | -50C - 200C | ||
| 3 | Steel plate | Material | Q235A |
| Density | 7.85g/cm3 | ||
| Thickness | 5-6mm | ||
| 4 | Adhesive | Appearance | Brown glutinous liquid |
| Solid content | 20±3% | ||
| Viscosity | ≥2.5 Mpa | ||
| Peel strength | 48h N/2.5cm≥120 | ||
| Compressive strength | ≥850 Mpa | ||
| Working temperature | -20C - 100C |
| Whole Plate (mm) | 150x300, 300x300, 450x000, 500x500, 600x450 etc. |
| Ceramic Size (mm) | Square Tile: 10x10, 20x20, 33x33, 50x50, 100x100, 150x100,etc. |
| Hexagonal Tile: 12x3, 12x6, 19x7, 19x12.5, 19x25,etc. | |
| Locking block with lock and groove: 38x38, 40x40, 30x30,etc. | |
| Dimple Tile: 20x20 with 5 dimples, 20x30 with 18 dimples, 20x30 with 13 dimples, 20x20 with 1 semi-spherical surface | |
| Ceramic Thickness (mm) | 3-75mm |
| Alloy Steel Size (mm) | Thickness: 3-10mm |
| Rubber Thickness (mm) | Depends on the impact stress expected. |
