| Brand Name: | XUSHENG |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Stainless Steel |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | D001011001D |
| Place of Origin: | China (Mainland) |
| Port Size: | Dn15,20mm,19mm,25mm,32mm |
| Media: | Water |
| Power: | Manual |
| Structure: | Control |
| Material Quality: | Ss304, Ss304L ,Ss316, Ss316L |
| Connection Ends: | Clamping,Threading,Welding,Union,Flange |
| Diameter: | Dn15,20mm,19mm,25mm,32mm |
| Working Pressure: | 0.6(MPa) |
| Working Temperature: | -20~180celsius Degree |
| Total Length: | 200-6000(mm) |
Quick Details
Specifications

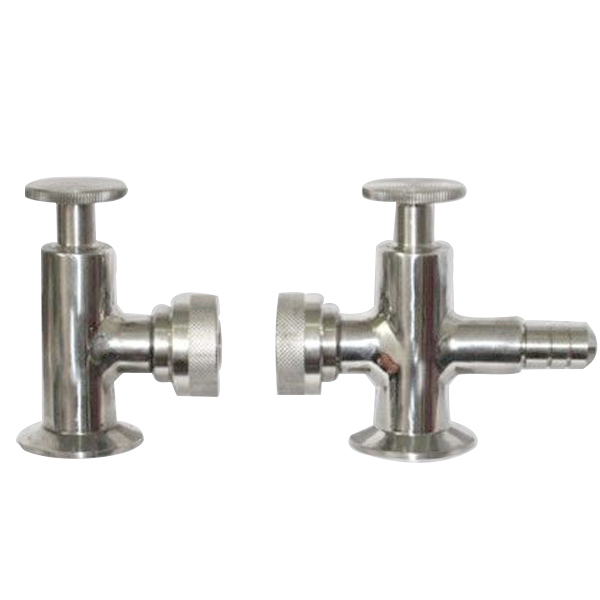

Products Name:Stainless Steel Sanitary Level Gauge Cock Valves
Glass tube liquid level gauge and is called liquid level valve, is a Kind of liquid level measuring instrument, which is mainly installed in the tank, so as to observe the flow of liquid in the tank. It is Suitable for the industrial production process of the liquid position of the general storage equipment in the field test, the structure is Simple, accurate measurement, is a traditional measurement tools. by Welding the quick assembly of the container, and the container, through the glass tube, the liquid level height of the container is directly Displayed.
Technical Parameter:
| Material Quality | Ss304, Ss304L,Ss316, Ss316L |
| Connection Ends | Clamping,Threading,Welding,Union,Flange |
| Diameter | DN15,20MM,19MM,25MM,32MM |
| Working Pressure | 0.6(Mpa) |
| Working Temperature | -20~180Celsius Degree |
| Scope of application | Food machinery, pharmaceutical machinery, stainless steel tank; |
| Total Length | 200-6000(MM) |
| Gasket | Silicone, EPDM, Viton, NBR, PTFE |
| Valve thread size | 1/4", 3/8", 1/2", 3/4" |
| Medium | Water, oil, gas, and other corrosive media |
| Max.Pressure | 10Bar |
| Packaging | Carton Case or Plywooden Cases |
| Function | Arranged in the tank body to observe the liquid the flow of liquid in the tank |
Component of Stainless Steel Sanitary Level Gauge Cock Valves:
| 1. | Glass tube |
| 2. | the scale |
| 3. | the protective sleeve |
| 4. | the upper and lower valve |
| 5. | the connection quick installation |
Applications
this valve has two styles:eletric-pneumatic control valve and manual Control valve,used in automatic control system to control Pressure,capacity,temperaure and tank level.
Our Service:
| on Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| on after Sales | Free replacement if there is any quality problem |
| on Delivery | Never delay delivery time |
| on Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
