| Brand Name: | XUSHENG |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Stainless Steel |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | D002001001D |
| Place of Origin: | China (Mainland) |
| Port Size: | 50-80m |
| Media: | Water |
| Power: | Solenoid |
| Structure: | Control |
| Max.Head: | 50-80m |
| Max.Capacity: | >200-300 L/min |
| Driving Type: | Motor |
| Impeller Number: | Single-Stage Pump |
| Working Pressure: | Middle Pressure Pump |
Quick Details
Specifications

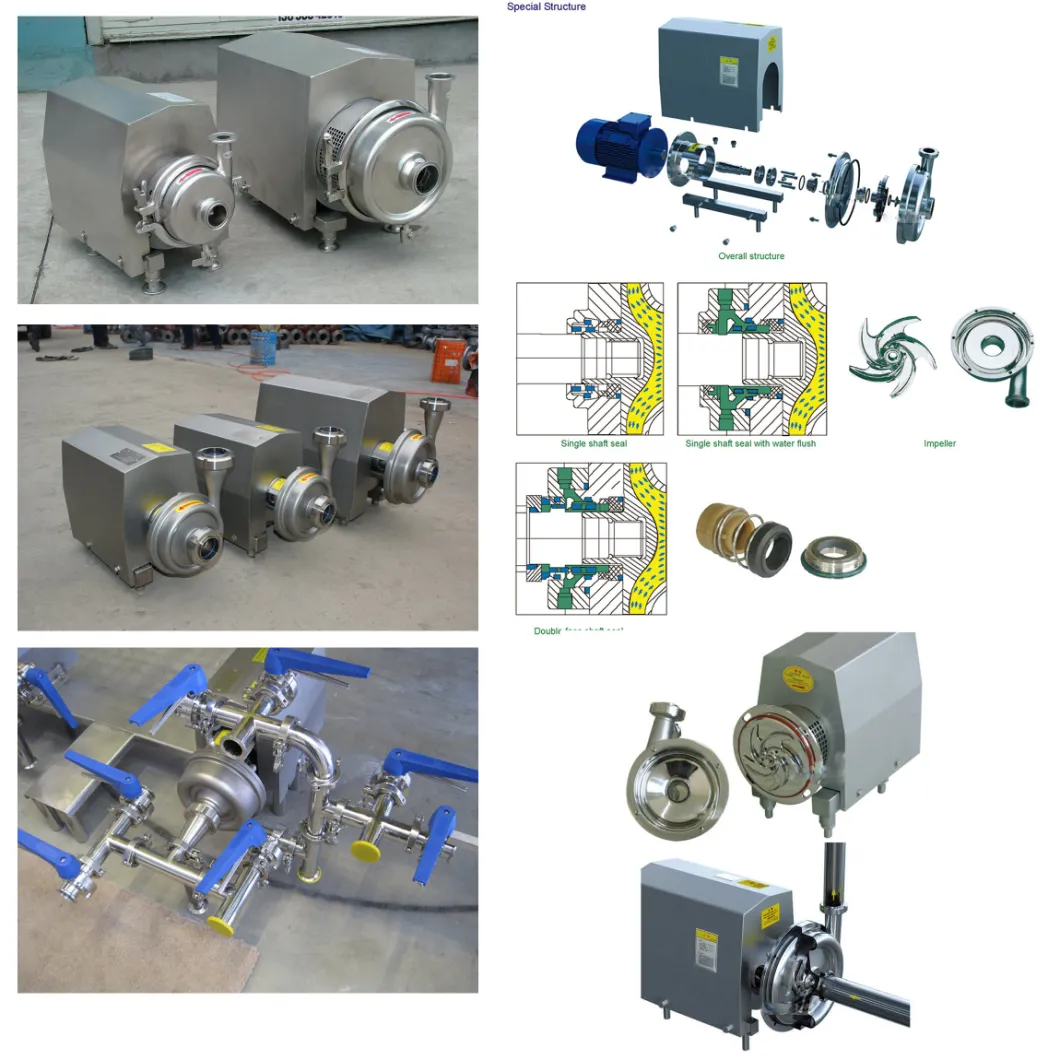

Products Name:Stainlss Steel Sanitary Milk Centrifugal Pump with Closed Impelle
Milk Centrifugal Pump with Closed Impelle
Stainlss Steel Sanitary Milk Centrifugal Pump impelle
Technical Parameter:
| Flow Medium Parts | AISI304/AISI316L(1.4301/1.4404) |
| without Flow Medium Parts | AISI304(1.4301) |
| Outside Surface | Semi bright |
| Inside Surface | Polished Ra0.4 |
| Product Wetted Seals | EPDM,Silicone,FPM.NBR |
| Max.Inlet Pressure | 0.5MPA |
| Temperature Range | -10C~140C |
| Noise Level(at 1m) | 60-80dB(A) |
| Capacity | 1.5~200ton/hour |
| Motor | ABB Motor and China motor,Siemens |
| Voltage | 220V,380V,440V,480V,ect |
| Impeller Type | Closed Impeller,Open Impeller,Semi-Open Type Impeller |
| Connection ends | Triclover,butt weld,threaded,union and flange |
| Machanical seal(standard) | Plumbago&silicon carbide |
Applications
Sanitary centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical,food industry, dairy industy.
Sanitary (hygienic )centrifugal pump is one type of centrifugal pump
Which mainly used for pharmaceutical, food industry,dairy industry,
Winery,turnkey project.the pumps are made of Stainless steel 316L or
SS 304,which with a surface polished, can be used to the above
Industry for sanitary purpose
