| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CE |
| Weight: | 1000-10000KG |
| Brand Name: | YTCT |
| Condition: | New |
| Warranty: | 1 YEAR |
| Dimension(L*W*H): | 1 |
| Power(W): | 1 |
| Place of Origin: | China (Mainland) |
| Model Number: | YTCT |
| Power Type: | Diesel |
| Application: | FOR EXCAVATOR . |
| OEM: | YES |
| MOQ: | 1 SET |
| MADE IN CHINA: | YANTAI CITY |
Quick Details
Specifications

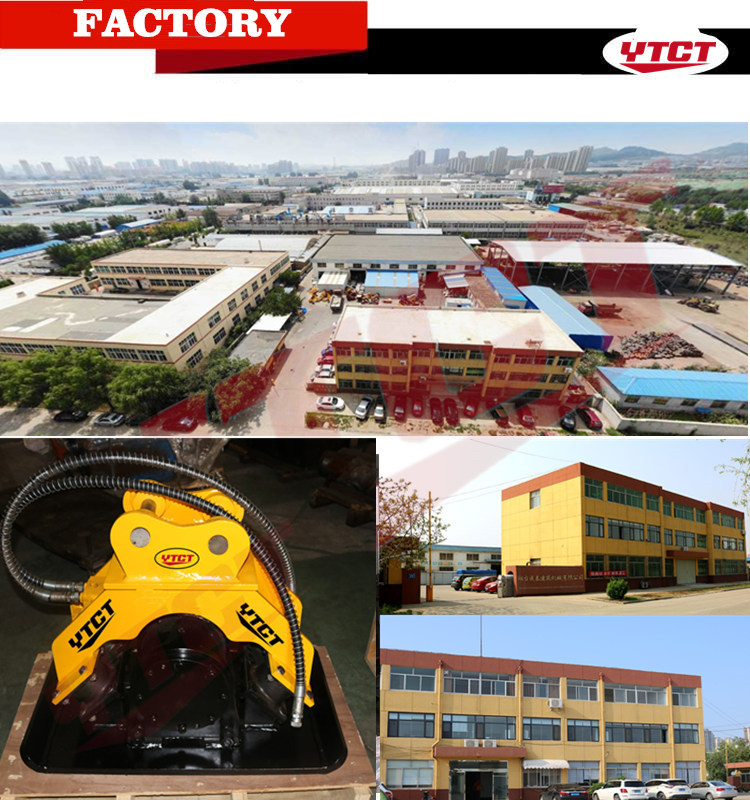

WE ARE A FACTORY in YANTAI CITY,CHINA.

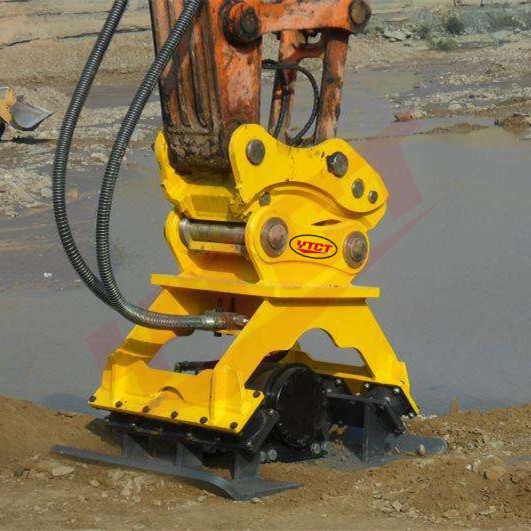

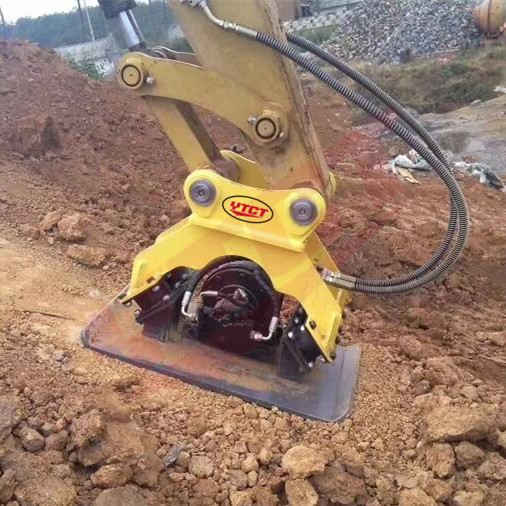

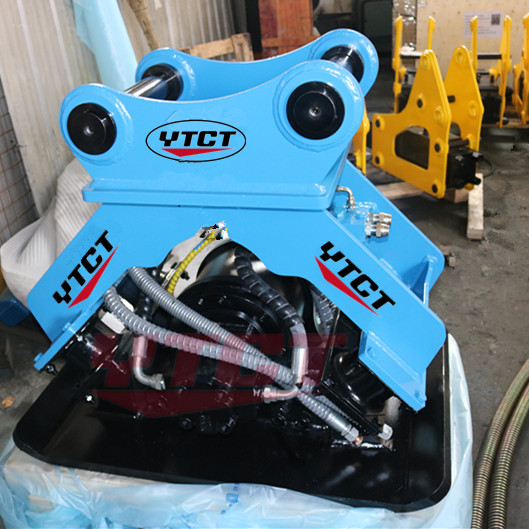

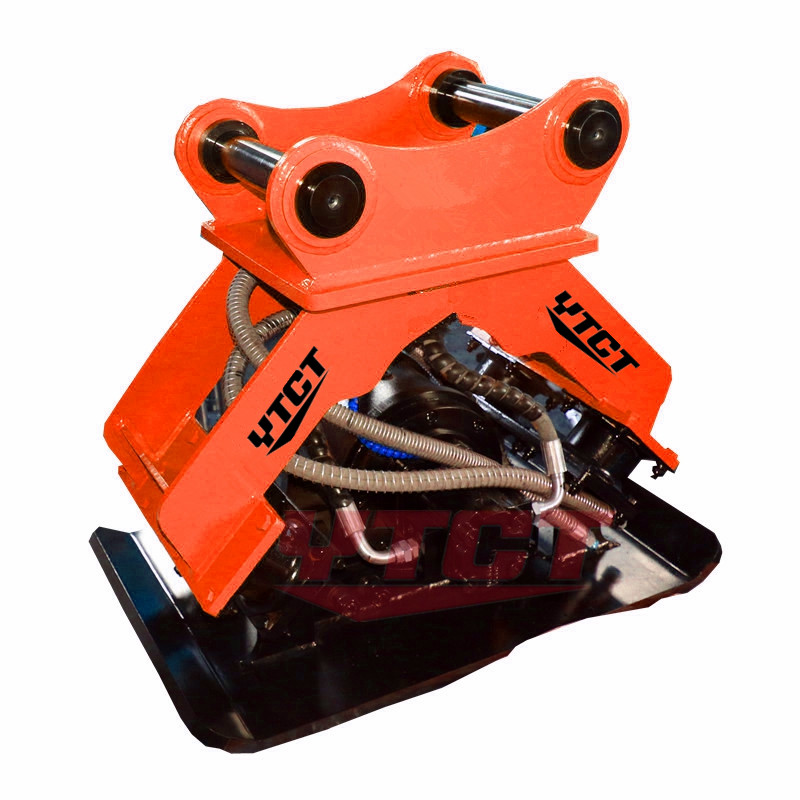

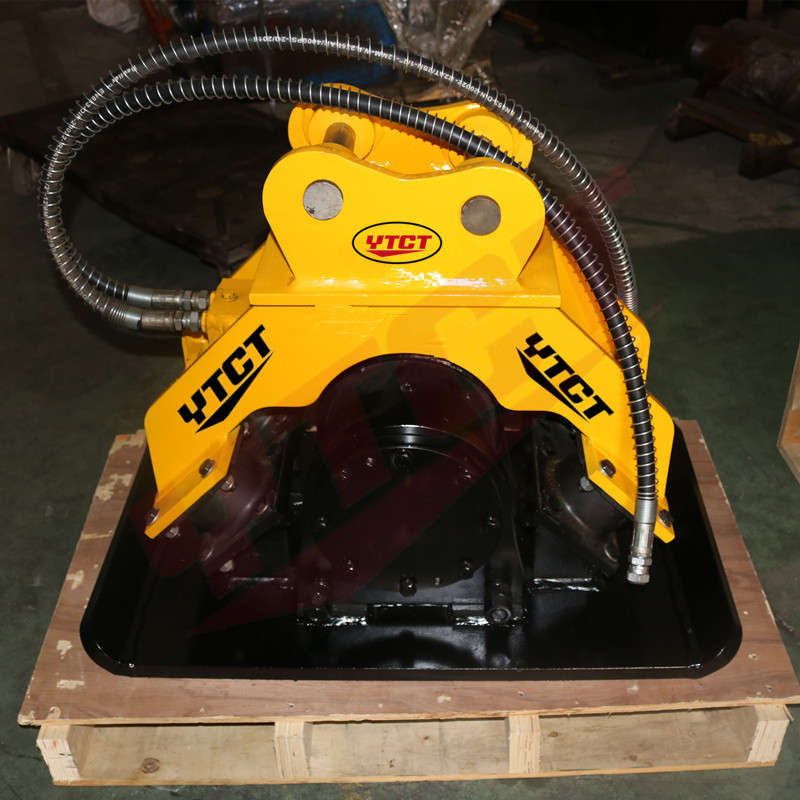

| HYDRAULIC PLATE COMPACTOR | |||||
| Application | |||||

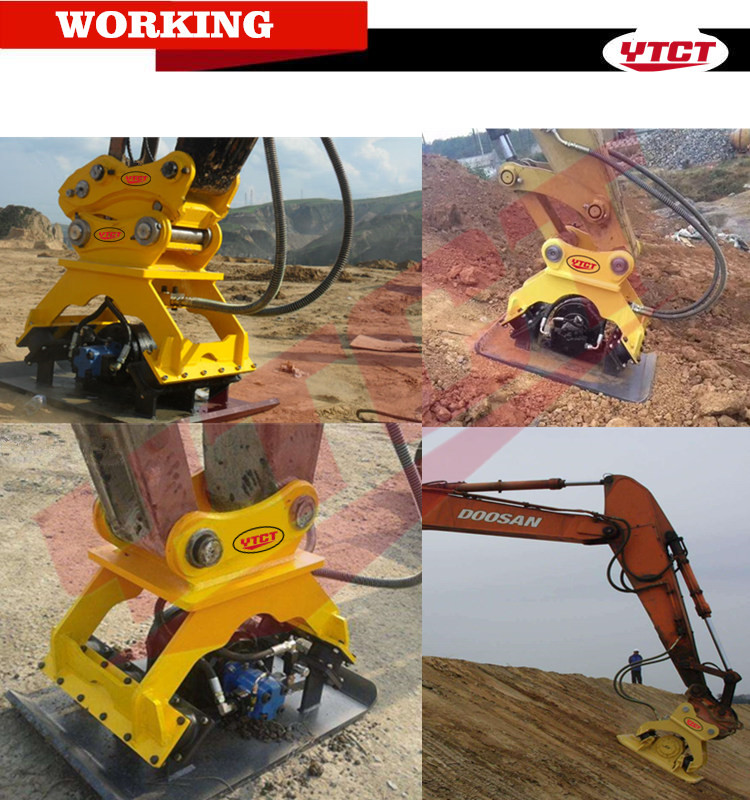

| Lebeling of high speed way and railway slopes,roads,contruction sites and buliding floors. | |||||
| Main future | |||||

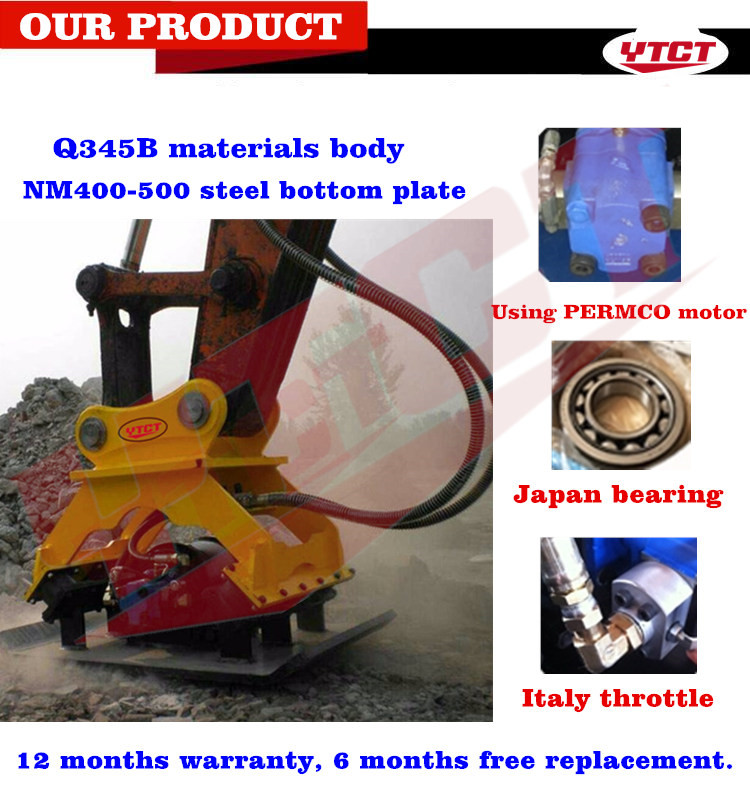

| Imported bearing (Japan)throttle(Italy) and safe valve (USA),Stable and high effcient performance. | |||||
| YTCT04 | YTCT06 | YTCT08 | YTCT10 | ||
| Category | UNIT | ||||
| Height | mm | 750 | 930 | 1000 | 1100 |
| width | mm | 550 | 700 | 900 | 900 |
| impulse force | ton | 4 | 6.5 | 11 | 15 |
| Vibration frequency | rpm | 2000 | 2000 | 2200 | 2200 |
| oil flow | l/min | 45-85 | 85-105 | 120-170 | 120-170 |
| Operating pressure | Kg/cm2 | 100-130 | 100-150 | 150-200 | 150-200 |
| Bottom measurement | mm | 900*550 | 1160*700 | 1350*900 | 1500*1000 |
| weight | kg | 550-600 | 750-850 | 900-1000 | 1100-1300 |
| carrier | ton | 4--10 | 12--16 | 18--24 | 30-40 |
