| Dimensions: | 38*38*38mm |
|---|---|
| Technique: | Mould |
| Surface Treatment: | Smooth, Gritted, Concave or Embeded Gritted |
| Application: | Walkways,Platforms,Trench covers,Swimming pool,Staircase,Floorings,Foo |
| Brand Name: | wthc |
| Place of Origin: | China (Mainland) |
| Cerificate: | ISO9001, SGS, CNAS |
Quick Details
Specifications
Fiberglass Reinforcement Polyester Grating
Due to the High bearing capacity and anti-corrosion performance, Mouled gratings are becoming more and more popular for the different types of market, it can be used as a structural material, and needed for flooring,corrosion environment, trench cover, platform, ship deck, stair, catwalks, etc. It has a long service life, low cost, safe and reliable, free maintenance, as well as beautiful, compare to steel at the installed cost stage, their free maintenance and long life means a significantly lower life cycle cost than that of steel.
We do offer customized Fiberglass molded gratings to our clients on special request. You just need to provide your requirements to us.We will pleasant to design a solution to meet your demand.
Advantages
1. Corrosion Resistant |
|
2. Aging Resistance |
Theoretically, the service life is more than 20 years. |
3. Free Maintenance |
Steel gratings have low initial cost than FRP Grating, but considering the life cycle costs and replacement costs, FRP Gratings becomes more economical and does not require sandblasting, scraping or coated for many years. |
4. Light Weight |
Glass grille is lighter than steel grill. which reduces the weight on structure and also increases safety during handling & no heavy lifting equipment are required for installation. |
5. High Strength |
Resin content is 35%,fiberglass content is 65%,FRP Moulded Grating have a high content of glass fiber, Compared to Steel materials, it exhibits improved strength and stiffness. |
6. Inflaming Retardant |
the fire retardant effect is of 1 to 25,or oxygen index is above 26, FRP Gratings have the advantage of anti-conduct of electricity, fire prevention and non-magnetic properties. |
Specifications
Part of our FRP grating Size as below.for more size information,pls contact with us.
Thickness/Height |
Panel Size |
Mesh Size |
|
1.22*3.66 |
38X38 |
1.22*4.04 | ||
1.22*3.66 |
40X40 | |
1*4.04 |
40X40 | |
1.22*4.025 | ||
30 |
1.22*3.66 |
38X38 |
1*4.04 | ||
1.22*4.04 |
40X40 | |
38 |
1.22*2.44 |
38X38 |
1.22*3.66 | ||
1.22*4.04 | ||
1*4 | ||
1*4.04 | ||
1.22*3.66 |
40X40 | |
1.22*4.92 | ||
1*4.04 | ||
50 |
1.22*3.66 |
|
1.22*4.015 | ||
1*4.04 | ||
30# |
1.22*3.66 |
25X25 |
38# |
1.22*3.66 |
19X19 |

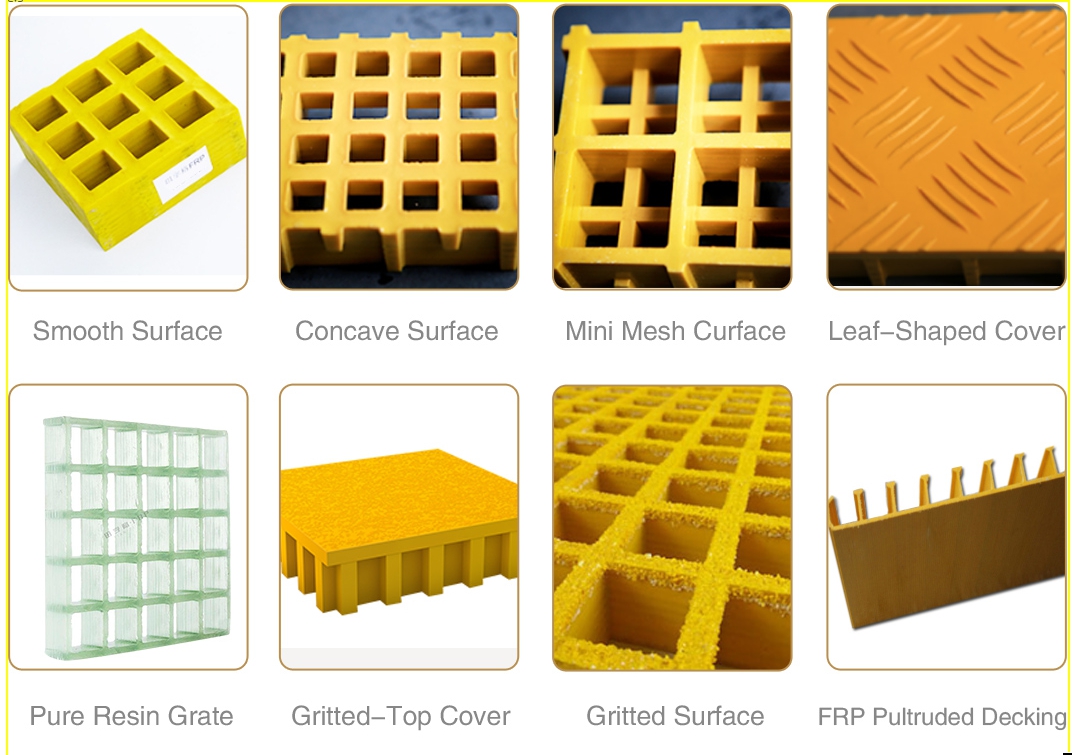

Types of Surface
Meniscus(Concave) surface
Smooth surface
Gritted surface
Mini/micro mesh
Leaf shaped cover
Diamond top surface
Gritted top cover
Application
Walkways,Platforms,Trench covers,Swimming pool,Staircase,Floorings,Foot Bridges,Fencing, car parking,Step Treads,Chemical,Food & Beverage Marine,Oil & Gas,Telecommunications,Industry,Buildings,Constructions,Pharmaceuticals,,Water & Waste Treatment,ShippingTransportation,Architectural

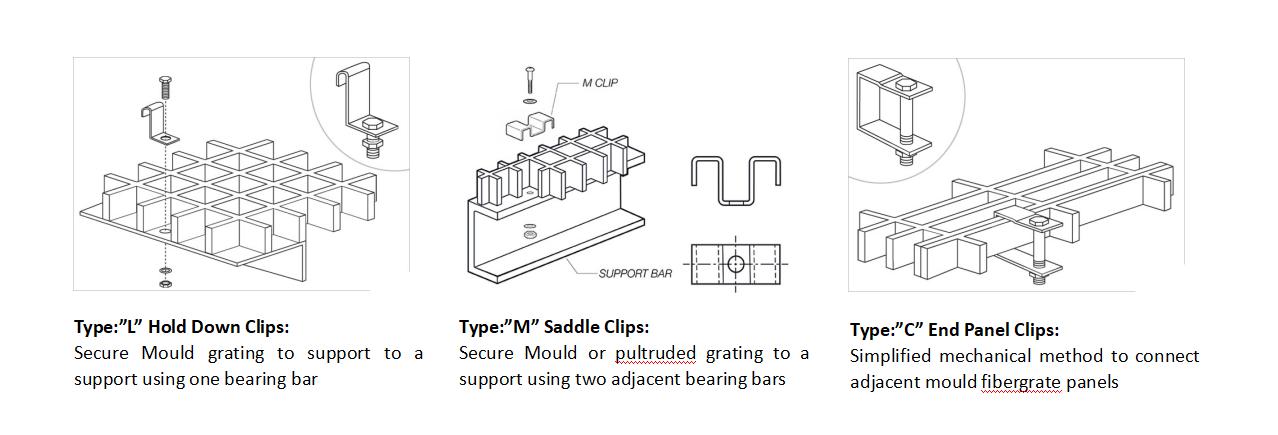

Clips
"L" Clip
for securing grating to support frames for moderate load
"M" Clip
to position grating on a support structure & restrain all movement.
"C"Clip
to connect two adjacent unsupported grating bars
We are generally packaging moulded grating with pallet, winding film,and packaging belt, if you have other requirement,please feel free to tell us
