| Application: | led emergency lighting |
|---|---|
| Type: | Standby |
| Protection: | Short Circuit |
| Phase: | Single Phase |
| Brand Name: | Qihui Lighting |
| Output Voltage: | ac85-265v |
| Weight: | 0.255 |
| Model Number: | FAT-LED-F1A cb |
| Place of Origin: | China (Mainland) |
| Power: | for 3-40W (60W max.) led |
| Input Voltage: | AC85-265V 50/60HZ |
| Output Voltage: | DC10-138V |
| Battery: | Lithium 3.7V 2400mAh |
| Emergency power: | 2.5-4W |
| Emergency time: | >120mins |
| Charge time: | 24 hours |
| Dimension: | 130x58x22mm |
| Certification: | CB CE RoHS |
| Warranty: | 2 Years |
Quick Details
Specifications

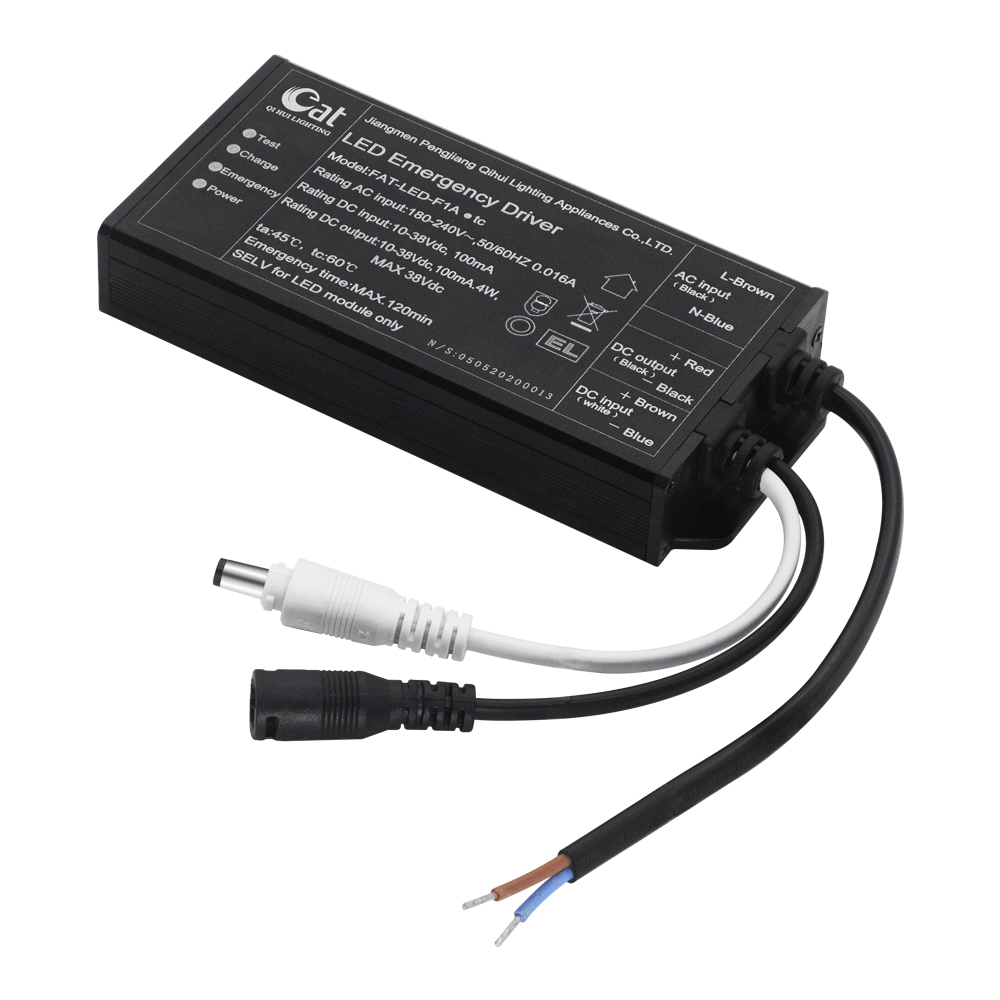

LED emergency kit for panel downlight spot light CB certificated 3-40W
Direct source with patented design
Updated version with the latesT IEC 61347-1:2015
Features:
There will be more than 120mins emergency power supply during power outages. It can be used in public places to ensure LED lights work normally even when there is a power failure which may be caused by fire, earthquake, electric circuit malfunction etc. this emergency driver would not affect its surrounded environment and power when it works.
Technical details: Model FAT-LED-F1A CB Material ABS+Aluminum Emergency Power 4W Emergency Switch Time <2s Charge Time 12Hours Emergency Time Emergency Time Battery Lithium battery, Working Voltage AC85V-265V 50/60Hz AC Protection 1A 250V DC Protection 5A 250V Battery cycle time >500 times Working Temperature -10℃-55℃ IP Rank IP30 Luminous Flux >100lm Battery cycle time >500 times Dimension 1305822mm Type of Lamp All 3-40W LED lamps with external driver,such as LED panels,down light,spot light
3.7V 2400mAh
Operation method of useage:
Certificate:
