| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | ecvv |
| Automatic Grade: | Semi-Automatic |
| Type: | Horizontal |
| Condition: | New |
Quick Details
Specifications
Double axis automatic CNC wood lathe Is designed for cylindrical workpiece, tubular sharp and vehicle wood crafts such as baseball bats, pillar, columns, chair legs, etc.
Features of Double Axis Automatic CNC Wood Lathe:
1. Heavy Cast iron lathe bed avoid shaking when the spindle rotates fast or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.
2. DSP handle controller with USD interface, it is easier for allign cutters than computer.
3. Taiwan PMI helical guide Germany ball screw,high precision and durable.
4. Spindle divided into the single axial and biaxial, the chuck can be mounted to the system and biaxial can produce two pieces at the same time.
5. Double axis automatic CNC wood lathe use domestic famous brand stepper motor to ensure the precision.
6. Spindle speed data is shown on the cabinet panel.
7. Only one time tool setting.
Applications of SCT baseball bat CNC wood turning lathe:
Double axis automatic CNC Wood lathe is used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children' s bed column, etc

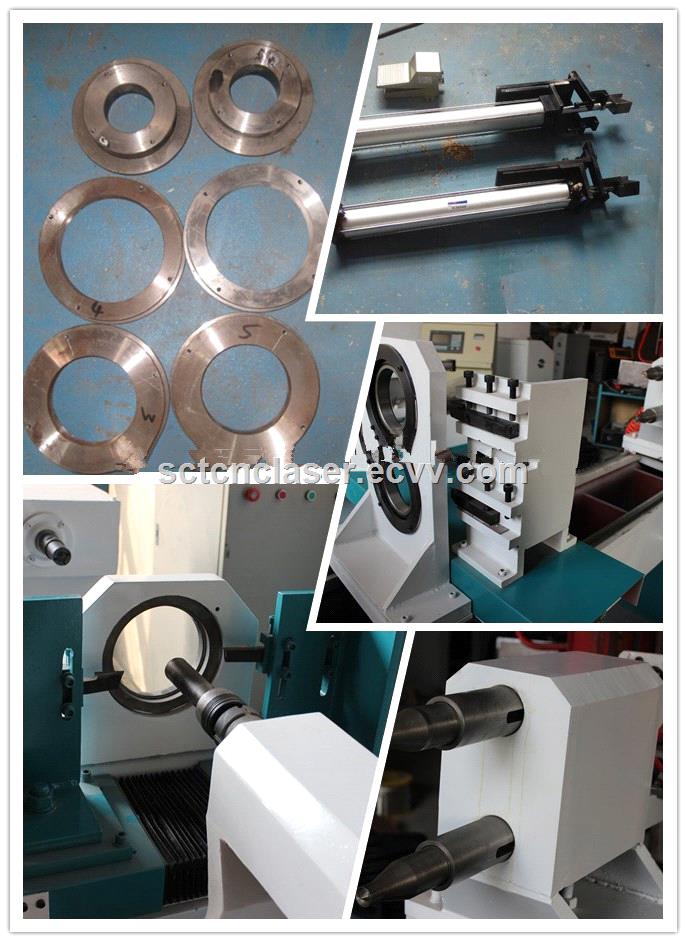

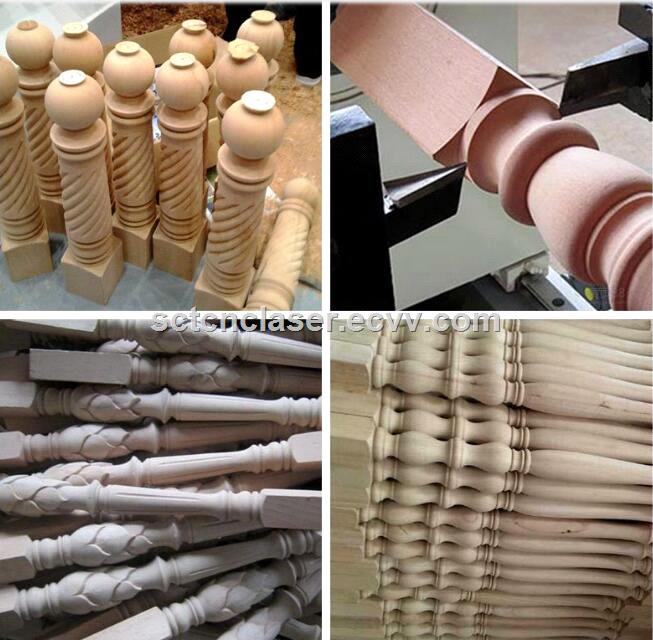

Samples of automatic double axis CNC wood lathe:
Specifications of SCT Double Axis CNC Wood Lathe:
BRAND |
Double axis automatic CNC wood lathe SCT-1516 Professional manufacturer for CNC wood engraving engraving cutting CNC furniture machine,CNC wood lathe machine |
Max turning length |
100mm-1500mm |
Max turning diameter |
20mm-160mm |
Number of axis and blades |
Double axis, double blades |
Maximum feed rate |
200cm/min |
Minimum setting unit |
0.01cm |
Spindle motor power |
3.5kw air cooling spindle China brand |
Control System |
CNC,PC+12"LCD or DSP |
Power supply |
AC380v/50hZ |
Overall dimensions |
3000*1100*1700mm |
Weight |
1700kgs |
Command Language |
G Code |
Software |
Coreldraw,Artcam,Type3,Ucancam,Caxa,UG,Mastercam,AutoCAD |
Packaging & Shipping
1. SCT Woodworking CNC Lathe Router machine and accessories are first covered by plastic sheet, water-proof and dampproof.
2. All the things are packed by plywood case used for export.
3.SCT Furniture Making CNC Router machine Can be delivered by sea, by train, or by plane according to your designated place.
at SCT we strive to make your buying experience as convenient as possible. We work directly with shipping companies to ensure the best price for the shipment and we pass those savings on to you. Please notify salesperson at the time of your quote request if you wish to arrange for your own shipping method.
