Working principle:

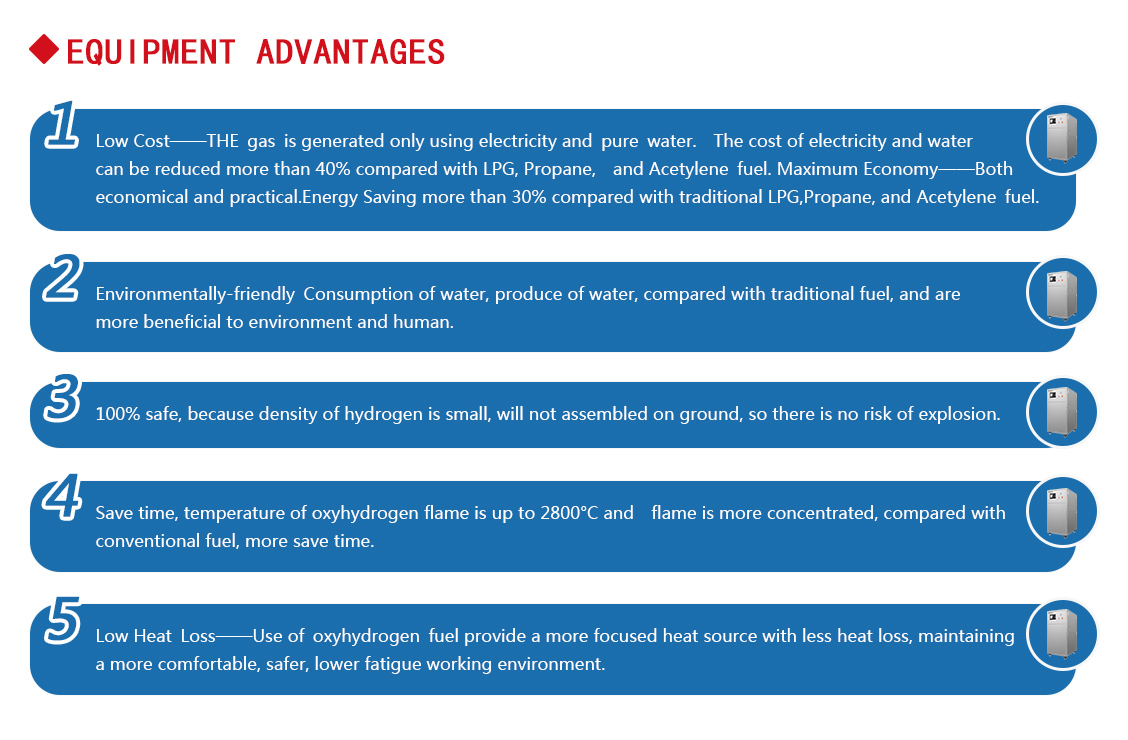

Brown gas generator uses sodium hydroxide (NaOH) or potassium hydroxide (KOH) aqueous solution as electrolyte, and uses the electrochemical reaction of water electrolysis to decompose hydrogen and oxygen from water. Hydrogen is used as fuel combustion and oxygen combustion support. It is a new high-tech environmental protection energy equipment, commonly known as "water welder". As long as the power switch is turned on, the water welding machine has a continuous supply of hydrogen and oxygen fuel, which can replace the existing acetylene, propane, liquefied gas and other gas, with a wide range of applications.Equipment superiority:

Device parameters:

Model Number	T50K	T25K	T8K	T6K	T2K
AC Voltage Requirement	380V±10%	380V±10%	380V±10%	380V±10%	220V±10%
Power Consumption	50KW	25KW	9KW	7KW	2.5KW
Working pressure	<0.2MPa		<0.1MPa
Max. Water Consumption	7L/H	4L/H	1.5L/H	1.2L/H	0.5L/H
Max.Gas Output	12500L/H	7000L/H	2500L/H	2000L/H	800L/H
Dimensions-L*W*H(mm)	1940*800*1345	1080*650*1440	840*630*1220	830*630*1220	830*500*1000
Gross Weight	800KG	400KG	200KG	180KG	115KG
Elenc.Motors	1000mm2	500mm2	180mm2	100mm2	25mm2
Gasification Capacity of Additives	Adjustable
Welding Speed	7.98mm 1.4s
	9.50mm 2.6s
Cooling Mode	Wind cooling/water cooling		Wind cooling
Configure	Stainless steel case,over pressure,over temperature, Warning of lack water,Fire Retardant,PLC+Touch screen		Carbon steel case,over pressure,over temperature, Warning of lack water,Fire Retardant,PLC+Touch screen(T2K not)
