Product Introduction:

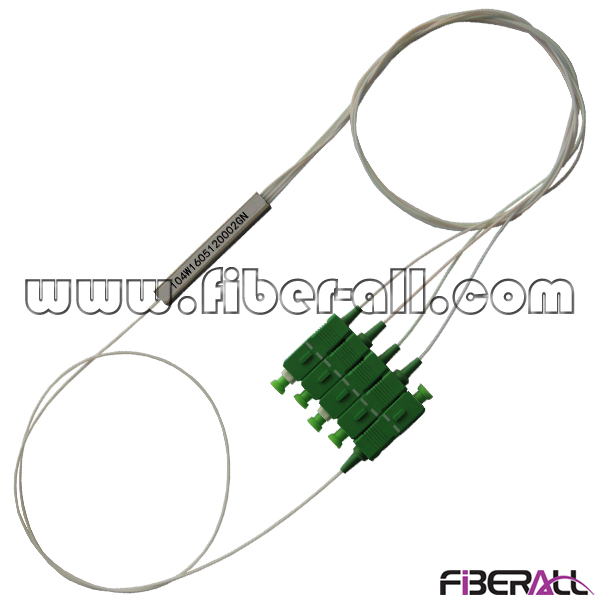

Fiberall Fiber Optical PLC(Planar Lightwave Circuit) Splitter is a type of optical power Management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (OLT) to multiple premise Locations (ONU). It features small size, high reliability, wide operating Wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting as a low-cost solutions. Fiberall has ability to provide all arrange of 1xN and 2xN PLC splitters that Are tailored for specific applications.

Applications:
1.CATV/CCTV Links
2.FTTX Systems (FTTB, FTTC, FTTD, FTTH, FTTO, FTTP, FTTZ etc)
3.PON Networks (EPON, BPON, GPON)
4.Access/Metro Networks

5.Optical Signal Distribution

6.Long Haul Telecommunication

Performance Features:
1.Low insertion loss
2.Low PDL (Polarization Dependent Loss)

3.High Polarization Extinction
4.Excellent channel-to-channel uniformity
5.Compact size
6.Wide operating wavelength: 1260nm~1650nm
7.Wide operating temperature: from -40°C to 85°C
8.High reliability and stability (-40°C~85°C)

9.Bend Sensitive G657A fiber

Standard Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

YD/T 2000.1-2009 (China National)

Technical Specifications:

Parameter		Unit		1x4
Premium Grade
Insertion Loss		Max.	dB	7.4
Channel Uniformity		Max.	dB	0.6
Polarization Dependent Loss (PDL @1310nm/1550nm)		Max.	dB	0.2
Operating Wavelength		1260~1650 nm
Return Loss	UPC/APC	Min.	dB	≥50/55
Directivity		Min.	dB	≥55
Operating Temperature		℃		40~85
Storage Temperature		℃		40~85
Connector Type		/		SC, LC, ST, FC, MU, SMA etc.
Fiber Type		/		G.657A1/A2 or Customized

Order Information:

Items	Options
Channel	1X2, 1x3, 1X4, 1x6, 1X8, 1x12, 1X16, 1x24, 1X32, 1X64, 1x128; 2X2, 2X4, 2X8, 2X16, 2X32, 2X64, 2x128.
Encapsulation Type	Round Steel tube, Mini rectangle steel package, ABS box, Card type (LGX box), Fiber Splice Tray (Pallet), Fiber Distribution Box (FBD), Rack Mounted Patch Panel, Fiber Splice Closure
Wavelength	1260-1650nm
Optical Ratio	Average/balanced or unbalanced (can be customized)
Input/output Diameter	Ribbon Fiber, 0.9mm, 2.0mm, 3.0mm
Jacket of input/output Cable	PVC or LSZH or TPU
Connector Type	SC, LC, FC, ST, MU, DIN, SMA and so on or without connector
End Polishing	PC, UPC(SPC) or APC
Cable Length	Customized
Fiber Type	SM G657A1, G657A2, G652D can be customized
Test Report	YES
RoHS	YES

Available Customized Options:

1, Customized print on cable ( 2.0mm or 3.0mm);

2, Customized packing;

3, Customized label;

4, Customized marking ring;

5, Customized fiber type;

6, Customized cable diameter;

7, Customized cable color;

8, Customized cable length;

9, Customized optical ratio;

10, Customized input/output type;

Many Others...
