1.Brief Introduction:

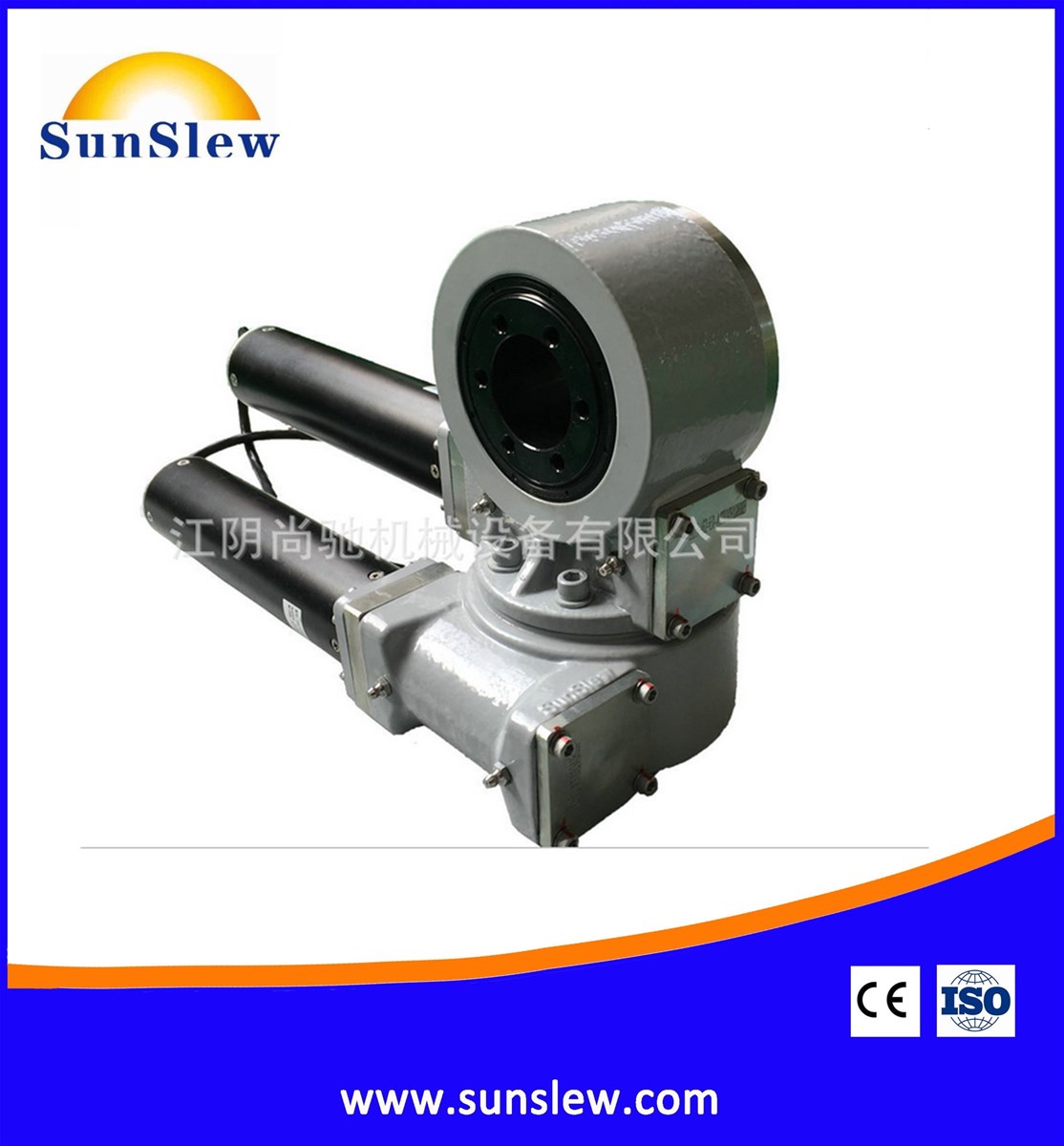

  SDD series products are our combined rotary drive reducer.the two-axis design solves the problem that the single-axis system can only rotate in the horizontal or pitching direction, and realizes the synchronous operation in the horizontal pitching direction.this series of products lay the foundation for the solar energy precise tracking system and improve the power generation efficiency of the solar power generation system.



2.Techincal parameters:

Rated Output Speed: 3 rpm
Output Torque: 400N.M
Titling Moment: 500N.M
Holding Torque: 2000N.M
Static Axial Rating: 30kN
Static Radial Rating:15kN
Dynamic Axial Rating: 9.6kN
Dynamic Radial Rating: 8.4kN
Gear Ratio: 62:1
Precision: ≤0.2°  C≤0.15°   B≤0.12°  A≤0.08°
Efficiency: 30%

3.Performance features:

SDD series products are easy to install, customers do not need to do additional bracket connection vertical and horizontal products, improve the installation efficiency and reduce the customer's maintenance cost.
