| Item Type: | Explosion-proof Lights |
|---|---|
| Light Source: | LED |
| Brand Name: | Green Lighting |
| Certification: | CCC,CE,FDA,RoHS,SAA,UL |
| Color Temperature(CCT): | Pure White |
| Light Source: | Cree |
| Item Type: | Green Lighting |
| Model Number: | GL12-A |
| Place of Origin: | China (Mainland) |
| Base Type: | EU11 |
| Emitting Color: | Cold White |
| IP Rating: | IP68 |
| Working Temperature(℃): | |
| Lamp Luminous Efficiency(lm/w): | 260 |
| Lamp Luminous Flux(lm): | 348lum |
| Lamp Power(W): | 3 |
| Input Voltage(V): | 3.7 |
| LED Light Source: | Cree |
| Brightness Of The Main Light: | 25000 Lux |
| Lighting Levels: | Strong , Middle , Auxiliary , SOS |
| Customized Lamp: | Yes, Available |
| Material: | Fire - Proof PC Material |
Quick Details
Specifications
1. Date specification
| Battery Type | Rechargeable 10.4Ah Li-ion Battery |
| Power of the strong light | 3W |
| Power of the working light | 1.8W |
| Working current of strong light | 850mA |
| Working current of working light | 450mA |
| Working time | More than 13 hours for working light |
| MOQ | Small quantity is available |
| Customized lamp | ODM, OEM orders are available |
2. Usage of Mining Cap Lights
this caplamp can be used in Mine, underground working, Patrolling, Overhauling and Emergency in electrical power company,Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.

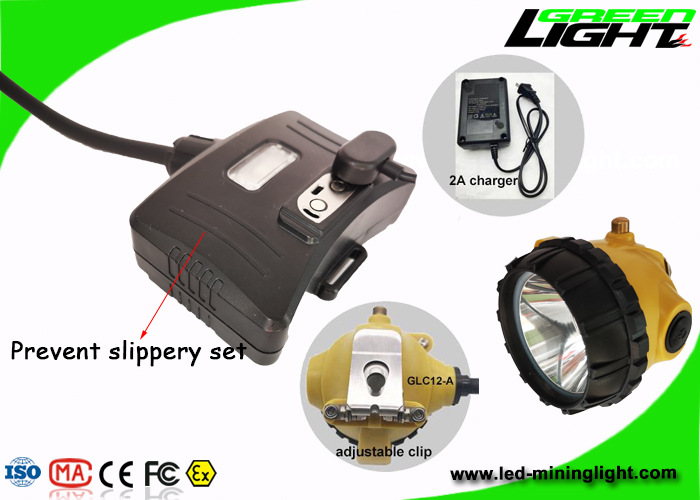

3. Advantages od GL12-A Corded Mining Cap Lights
Material: It uses Special material instead of PC, ABS as tradition lamps
Brightness of Main Light: 25000Lux strong brightness than traditional lamps
Waterproof degree: IP 68
Weight: 520g, more lightweight than others
Appearance: Yellow and black, unique than others.
Charger: 2A single charger, fast charge than other corded lamps.
4. Shippment way
by sea, air, express
5. Customized Service
Appearance Design:
Strong ID Team, According to client's market positioning, use condition to design product shape, pattern and colour.
Electronic Circuit Design:
10 Software and Hardware Engineers, PCB's Design and Layout. LED Driver, Charging circuit, Battery Protection Circuit and so on.
Structural Design:
Professional MD Team, provide IP68 Waterproof, ATEX explosion-proof,Dust-proof Products, 10 years work experience in underground field. Very familiar with miner's lamp industry products.
Function Design:
in addition to the basic function(Illuminance, Working Time, Life Span) of lamps, Green Lighting can according to client's requirements and use condition to design some additional function, Such as coal mine personnel position system, wireless charging, USB charger, SOS, OLED Screen to display company information and miner's serial number.
Optical Design:
According to LED Luminous Flux, Light cup curve and current to design the Light Beam.
Brand Design:
1. BRAND ORIENTATION, according to clients requirements for market research, analyze, diagnose and provide a tailor-made solutions
2. BRAND INTEGRATION, follow brand orientation to naming the brand, designing LOGO with Product Identity and Corporate Identity
3. BRAND PROMOTION, Green Lighting also can assist clients to promote brand, such as publicity and advertising. to achieve a successful brand for clients.
