| Ash Content (%): | 0.3 |
|---|---|
| S Content (%): | 0.05 |
| Product Type: | Carbon Electrode Paste |
| Shape: | Carbon Plate |
| Brand Name: | jinsun |
Quick Details
Specifications

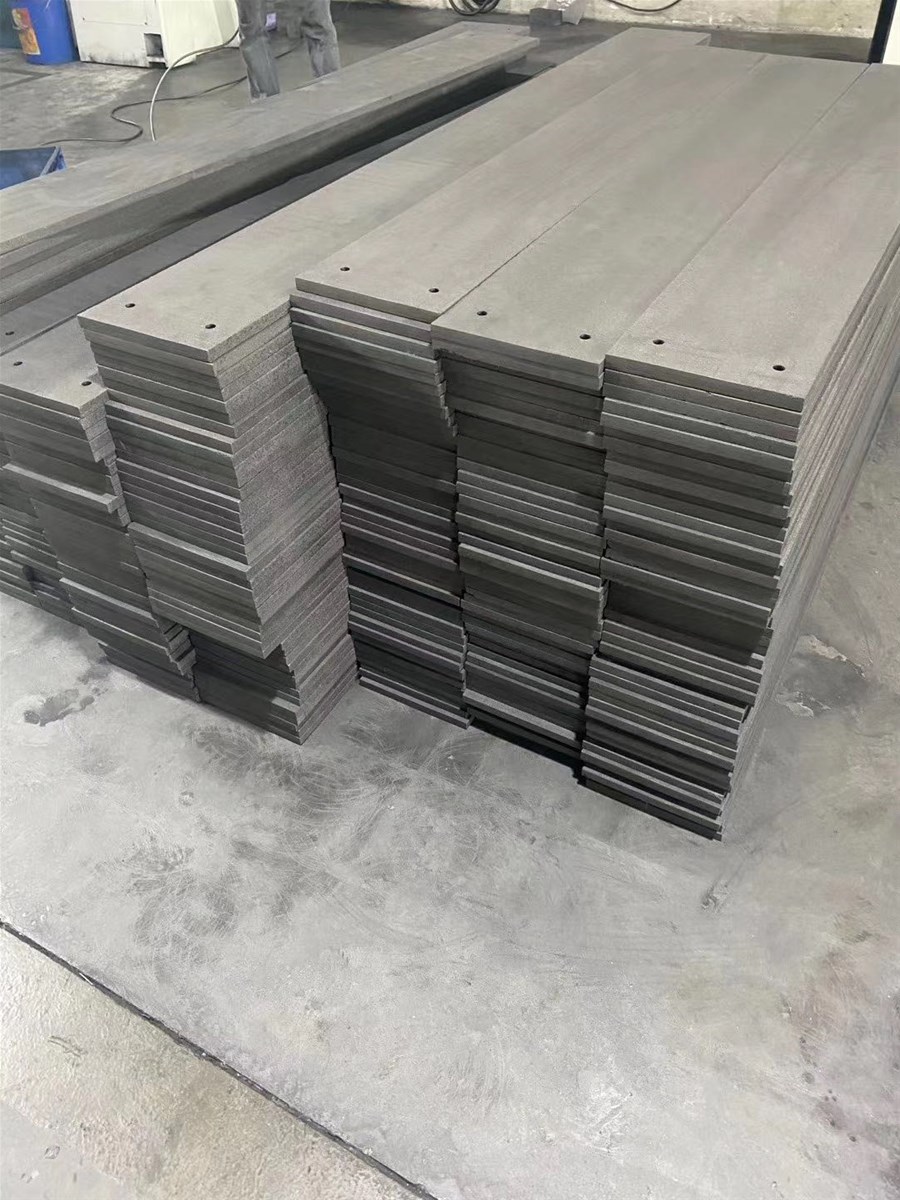

Graphite sheet
Is made form the domestic petroleum coke and widely used in the metallurgy, machinery, electronics and chemical industry, etc. the graphite block include molded, extruded, vibrated and isostatic. Our main and most preponderant graphite block is molded formed.
Our products own the following characteristics: low electric resistance, good electric and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, high machining accuracy and so on.
Items |
Medium Graphite Block | ||
Project |
DEG1 |
DEG2 |
DEG3 |
Bulk Density |
≥1.60g/cm3 |
≥1.70g/cm3 |
≥1.75g/cm3 |
Compressive Strength |
≥28Mpa |
≥37Mpa |
≥48Mpa |
Bending Strength |
≥12Mpa |
≥18Mpa |
≥23Mpa |
Resistance |
≤10uΩm |
≤8uΩm |
≤8uΩm |
Ash |
≤0.15% |
≤0.15% |
≤0.1% |
Size&Weight |
740*400*2300mm 740*360*2300mm 650*400*2000mm 650*360*2000mm 510*510*1980 mm500*400*1950mm | ||
Application |
Graphite Block,Graphite Plate,Graphite Rolls, Graphite Cracible,Graphite Tube, Graphite Boat,Graphite Rotor, Carbon Vane,Graphite Bearing, Graphite Column,Graphite Seal Products, Graphite Mould,ohter Graphite Products. | ||
