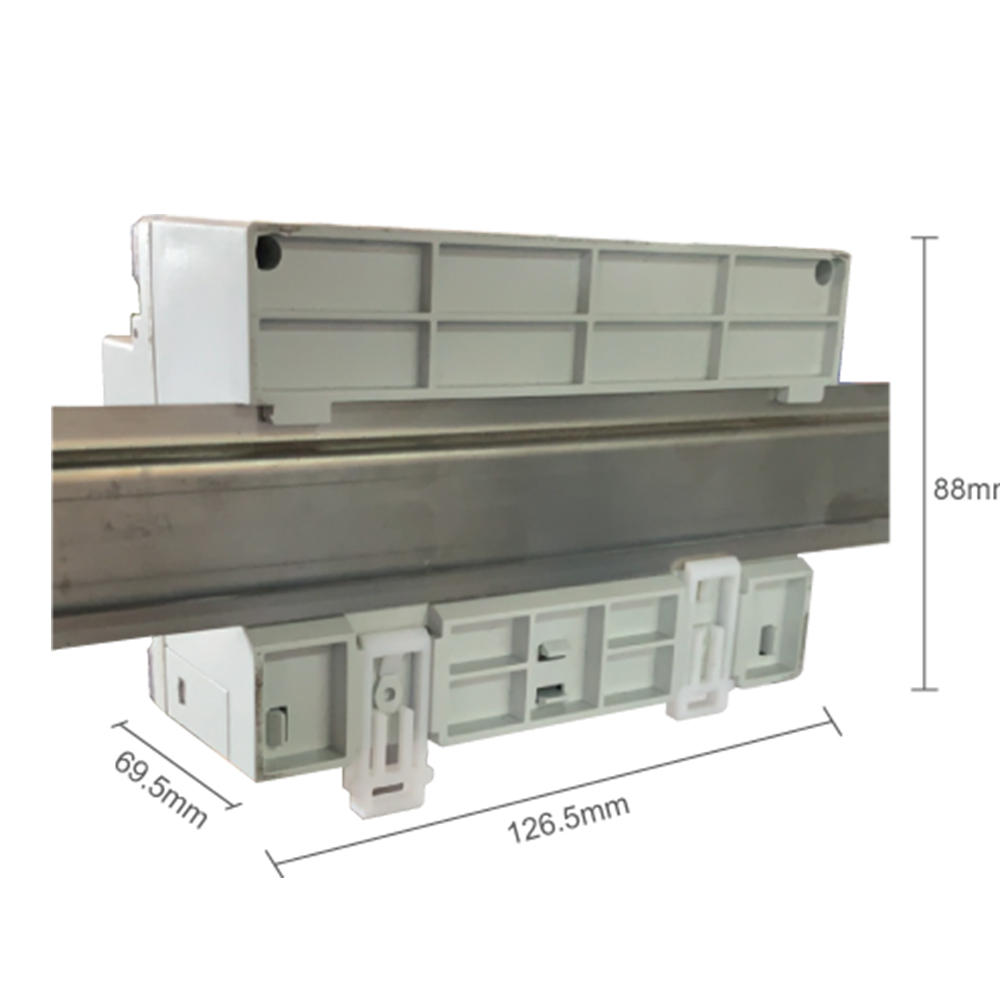

| Dimensions: | 126*88*70mm |
|---|---|
| Accuracy Class: | 0.5S |
| Phase: | Three Phase |
| Display Type: | Analog and Digital |
| Brand Name: | ACREL |
| Operating Temperature: | -20 +60 |
| Output Voltage: | AC100V/220V/380V |
| Measuring Energy Range: | 0-999999.99 KWh |
| Model Number: | ADL3000-E |
| Place of Origin: | China (Mainland) |
| Electricity pulse output: | 80ms plus and minus 20ms |
| Installation method: | TS35mm guide rail |
| Certificate: | CE IEC |
| Reference frequency: | 50Hz |
| Product Keywords: | 3 phase modbus energy meter |
Quick Details
Specifications
Product Overviews
ADL3000E power analyzer specializes in measuring the data of all kinds of AC networks. It can be used for local display, or it is connected with the control equipment in measuring and controlling system. They comply EN 61326:2006 and EN 61010-1:2001.
They are a kind of programmable analyzer. with the 2 key on the front, we can choose to read the data that we need. They can be equipped RS-485 communication Modbus-RTU and DLT645-2007.
They are a kind of analyzer with excellent cost performance, since they regroup the functions of traditional electric transmitter and digital meters. Therefore they are widely being used in kinds of control system, SCADA system and power management system.

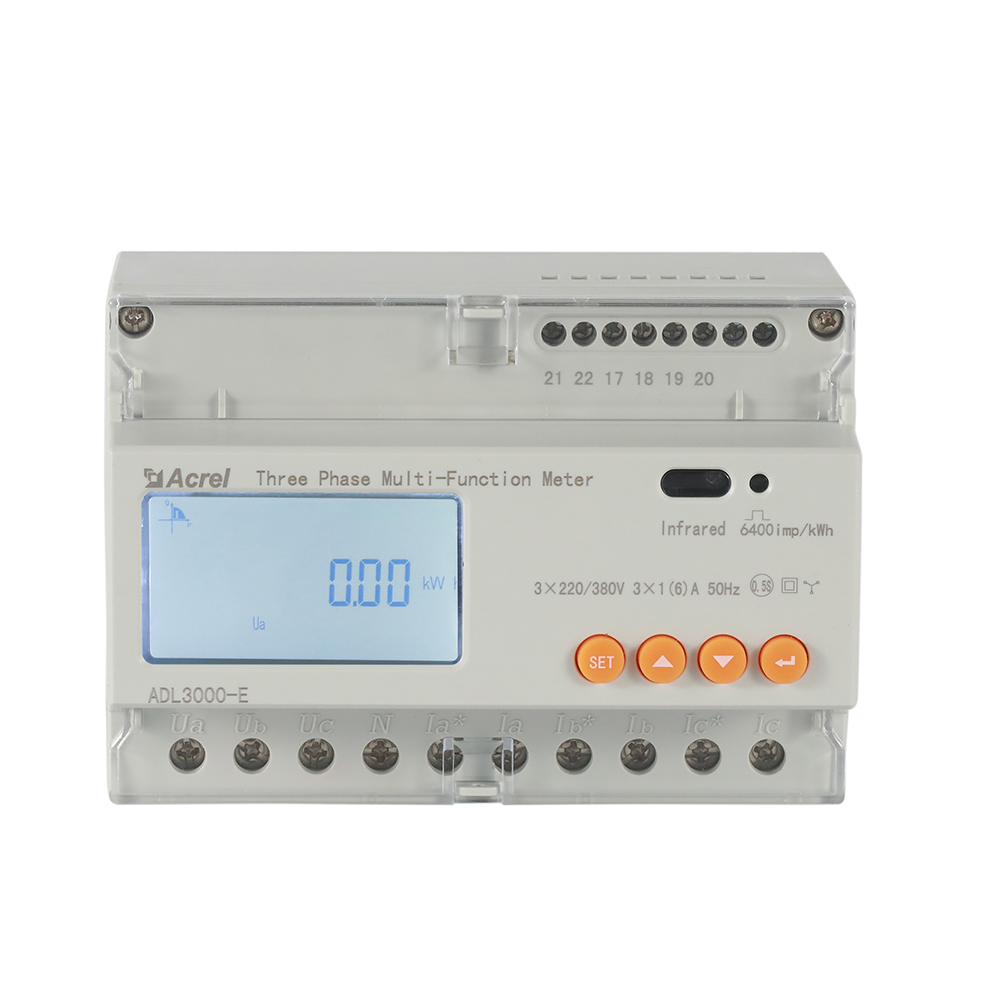

| ADL3000-E Three Phase Multi-Function Energy Meter |
AC 3220V/380V,3380V,357.7V/100V,3100V |
31(6)A,310(80)A |
U,I,P,Q,S,PF,kWh,kvarh |
RS485,MODBUS-RTU |
LCD display |
Frozen data |
2-31st Harmonics |
Alarm |
| kWh Class 0.5S,kVarh Class 2 |
