Product Main

Quick Details

Type: Headlamps
Lamp Power(W): 2
Warranty(Year): 2
Certification: CE,UL
Battery Type: Lithium Ion
Brand Name: Asttar
Base Type: AR70
Lamp Body Material: ABS
IP Rating: IP65
Light Source: HID
Power Source: Rechargeable Battery
Usage: Emergency
Model Number: KL4LM(B)
Place of Origin: China (Mainland)
Place of Origin: Shaanxi, China
Brand Name: ASTTAR
Model Number: KL4LM(B)
Usage: mining, tunnel, oil, confined space, construction, sewage
Battery capacity: 4000mAh
Max illumination: 6000lux
Working time: 16 hours

Specifications

Product Description
KL4LM(B) Miners Cap Lamp

Using Li-ion battery, battery capacity is 4000mAh, max illumination can reach to 6000lux, with one main light and four auxiliary light.
Intrinsically safe, can be used in underground mine, tunnel, confined space, sewage, oil, underground construction...

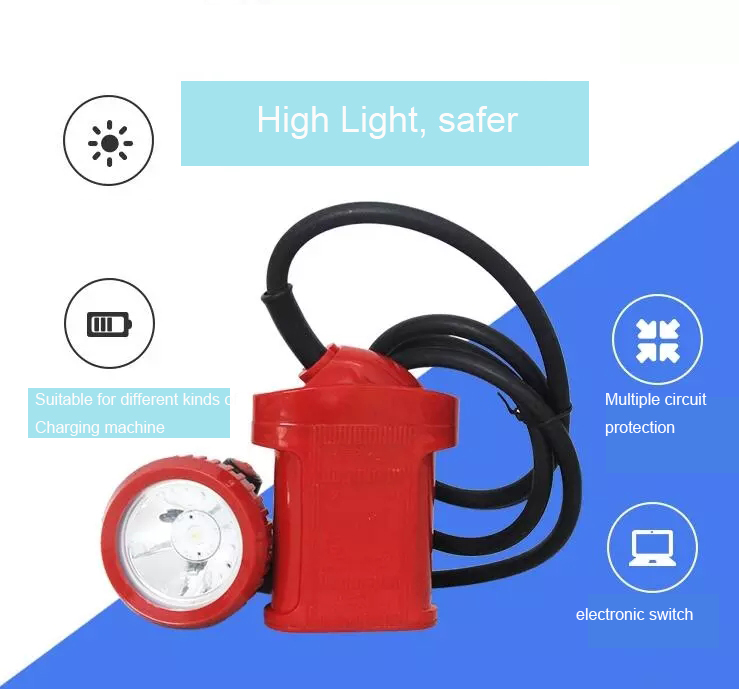

Asttar UL Certified KL4LMB mining led head lamp
Specification
Battery
Li-ion, 4000mAh
Rated voltage
3.7V
Lighting time
> 16 hours
Main
Light
Source
Working current
0.2A
Max luminance
(at 1m apart from the lamp)
When lighting begins
6000Lux
after lighting for 11h
6000Lux
Rated power of auxiliary lights
0.2W
Lamp lifespan
2 years
Charging voltage
(6-8)V
Charging time
< 8 hours
Explosion protection
Ex ia I Ma
Protection grade
IP68
Dimension
Head piece
 Φ71*75 mm
Battery pack
(95*37*126) mm
Weight
600g
