| Brand Name: | Asttar |
|---|---|
| Flow rate: | 5 |
| Product name: | CJG100 |
| Max flow rate: | 5 |
| Material of case: | steel |
| Model Number: | CJG100 |
| Place of Origin: | China (Mainland) |
| Place of Origin: | Shaanxi, China |
| Brand Name: | GOKANG |
| Model Number: | CJG100 |
| Measuring range: | (0~10)% |
| Accuracy of differentiate plate: | 0.5% |
| Range of dial scale: | (0~1)% |
| Accuracy of dial scale: | 0.02% |
| Bulb voltage / current: | 2.5V/0.3A |
| Explosion protection: | Exib I |
Quick Details
Specifications
Application

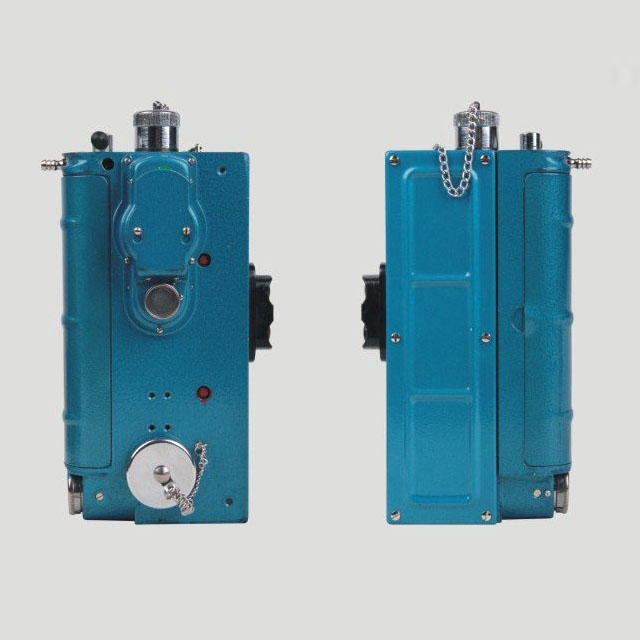

It is based on the peinciple of optical interference and can quickly and exactly detect the methane concentration in the working environment where flammable and explosive mixed gases exist, has the characters of accurate measure, legible and convenient to adjust and use.
Main specification
Model |
CJG10 |
CJG100 |
Measuring range |
(0~10)% |
(0~100)% |
Tolerance |
±0.3% |
±3% |
Accuracy of differentiate plate |
0.5% |
5% |
Range of dial scale |
(0~1)% |
(0~10)% |
Accuracy of dial scale |
0.02% |
0.2% |
Bulb voltage / current |
2.5V/0.3A | |
Explosion protection |
Exib I | |
Battery |
2R20 Zn-Mn battery | |
Dimensions |
22513570 mm | |
Weight |
1.8 kg | |
