Dimensions: 18*88*70mm
Accuracy Class: Class1
Phase: Single Phase
Display Type: Analog and Digital
Brand Name: Acrel
Operating Temperature: -25~55 centigrade degree
Measuring Energy Range: 0-99999
Model Number: ADL10-E/C
Place of Origin: China (Mainland)
Product name: singel phase energy meter
Brand: OEM ODM
Reference voltage: AC 220V
Reference frequency: 45~65HZ
Maximum: 60A
Accuracy: Class 1

Specifications

Product Description
Whatsapp 0086-18860990013

ADL10-E Single Phase Electric Energy Meter
ADL10EC din rail mounted single phase energy meter with RS485 CE approval
General
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. this power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features
AC 220V
10(60)A
RS485, MODBUS-RTU
LCD display
KWh Class 1, Kvarh Class 2
U, I, P, Q, S, PF, kWh, kvarh
DIN 35mm

Technical Parameters
Voltage
Reference voltage
AC 220V
Reference frequency
45-65 Hz
Consumption
<10VA( Single phase)
Current
Maximum
60A
Starting current
0.004 Ib
Consumption
<4VA(Maximum current)
Measurement performance
Accuracy of active kWH
Class 1
Standards complicant
IEC 62053-21:2003
Pulse
Pulse width
80+20 ms
Pulse constant
3200 imp/kWH
Communication
Interface
RS485
Protocol
Modbus-RTU
Outling
L*W*H(mm)
18*88*70
Environment
Temperature
Operating:-25℃~55℃; Storage:-40℃~70℃
Humidity
≦95% (No condensation)
Altitude
<2000m

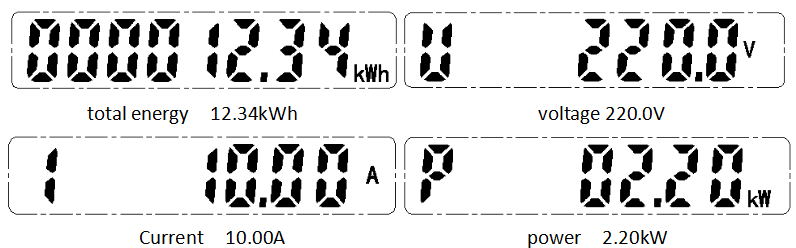

LCD Display
ADL10EC DIN rail mounted single phase energy meter with RS485 CE approval

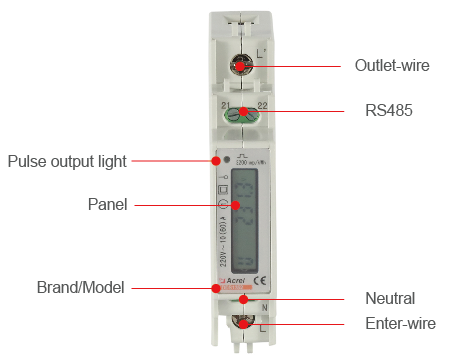

                                                                          Wiring
ADL10EC DIN rail mounted single phase energy meter with RS485 CE approval
Typical Connection
ADL10EC DIN rail mounted single phase energy meter with RS485 CE approval
ADL10EC DIN rail mounted single phase energy meter with RS485 CE approval
ADL10EC DIN rail mounted single phase energy meter with RS485 CE approval
