| Dimensions: | 72mm*87.8 mm*71.5mm |
|---|---|
| Accuracy Class: | CLASS 0.5 |
| Phase: | Three Phase |
| Display Type: | Analog and Digital |
| Brand Name: | ACREL |
| Operating Temperature: | -20 +60 |
| Output Voltage: | 3380V |
| Measuring Energy Range: | 0-999999.99 KWh |
| Model Number: | ADW300 |
| Place of Origin: | China (Mainland) |
| Reference frequency: | 45-65Hz |
| harmonic: | 2-31st voltage and current harmonic |
Quick Details
Specifications
Product Overviews

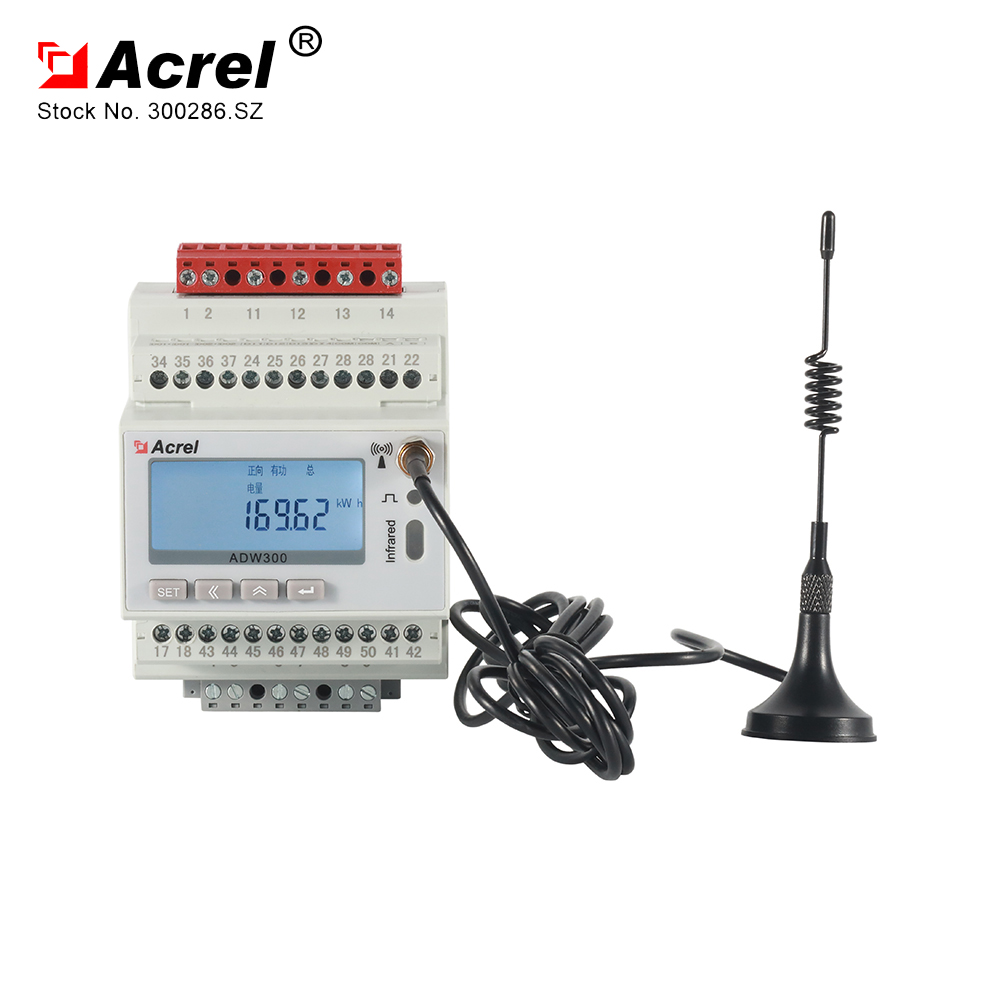

ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads
| Specification | Accuracy | Resolution | Measuring Range |
| Active energy(Kwh) | Class 0.5S | 0.01 Kwh | 0-999999.99Kwh |
| Reactive energy(Karh) | Class 2 | 0.01Kvarh | 0.01 Kvarh |
| Voltage | 0.2% | 0.1V | 50-285V |
| Current | 0.2% | 0.01A | 0.01-80A |
| Active power | 0.5% | 0.001 Kwh | 0-22.88kw |
| Reactive power | 0.5% | 0.001 Kwh | 0-22.88kw |
| Apparent power | 0.5% | 0.001VA | 0-22.88kw |
| Power Factor | 0.2% | 0.001 | |
| Frequency | 0.2% | 0.01HZ | 45-65HZ |
| Active energy(Kwh) | Class 0.5S | 0.01Kwh | 0-999999.99Kwh |
FAQ
Thank you very much for your interest in Jiangsu Acrel MFG Co.,Ltd. products and visit our website, below are few questions you may ask answers.
1. Q: Where is your factory located ? how can I visit here ? Can your factory arrange transportation for me?
A: Our production base is located in Jiangyin City, Jiangsu Province, China;
Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.
2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?
A: the staffs in our R&D department are well experienced in the Electric industry, with more than 10 years' experience.
We can make customized products especially for you; please kindly contact us for more
3. Q: how long could I get my order?
A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.
4. Q: how is your production management and quality control system?
A: All our product process follows up ISO9001. the strict implementation of ISO9001 assures to provide errorfree products to our customers. We will show you these in our workshop during your visiting.
5. Q: how can I get a sample to check the quality?
A: We are glad to offer you samples for test. Leave us message of the item you want and your city address.
We will offer you detail sample packing information, and select the best way to deliver it.
