| Dimensions: | 7.15X7.22X9.77 cm |
|---|---|
| Accuracy Class: | class 1 class 0.5 |
| Phase: | Three Phase |
| Display Type: | Analog and Digital |
| Brand Name: | ACREL |
| Operating Temperature: | -20 +60 |
| Output Voltage: | 380v |
| Measuring Energy Range: | 0-999999.99 KWh |
| Model Number: | ADW210-D10-4S |
| Place of Origin: | China (Mainland) |
| Reference frequency: | 45-65Hz |

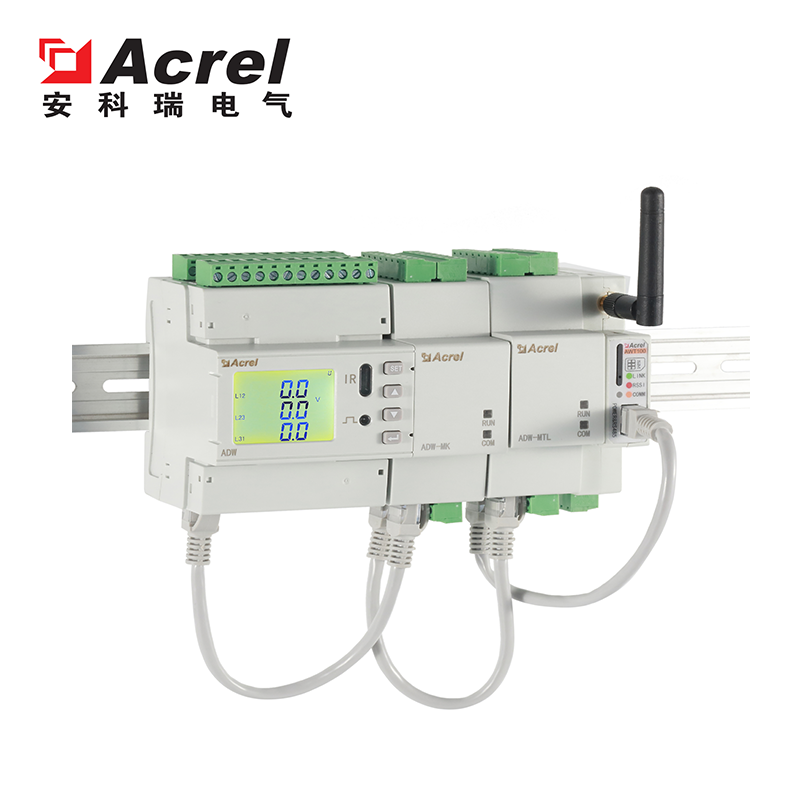

| Installation method: | din35mm guide rail |
| Display Mode: | LCD |
| Communication: | RS485 MODBUS-RTU |
| Circuit: | 4 Circuit |
Quick Details
Specifications
Product Overviews

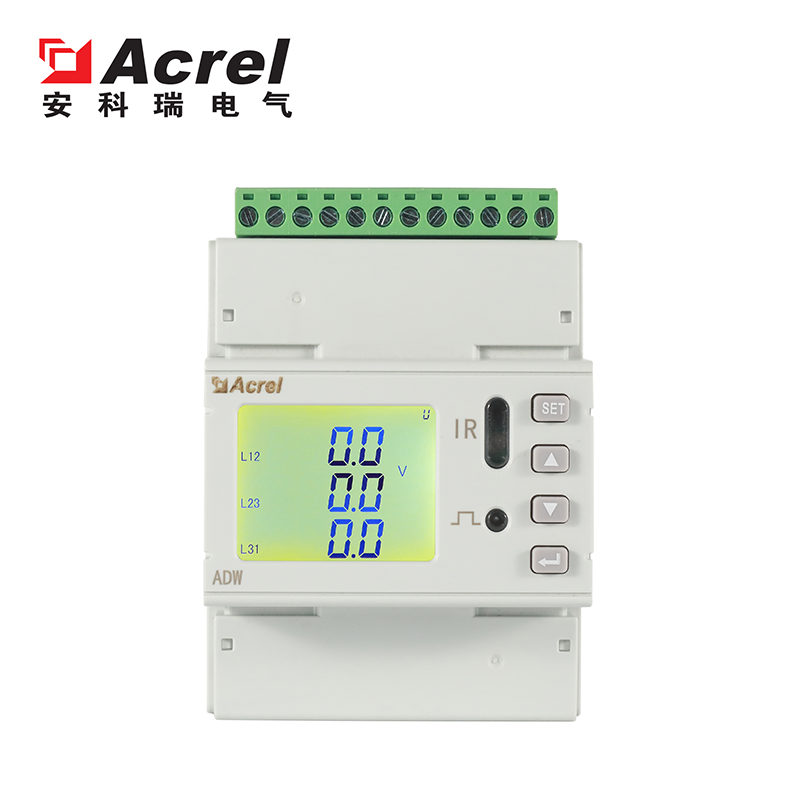

ADW200 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit. Colleagues can select the current input of the maximum four circuits.
| Instrument type | Size(mm) | Note | ||
| ADW200 | D10 D16 |
1S 2S 3S 4S |

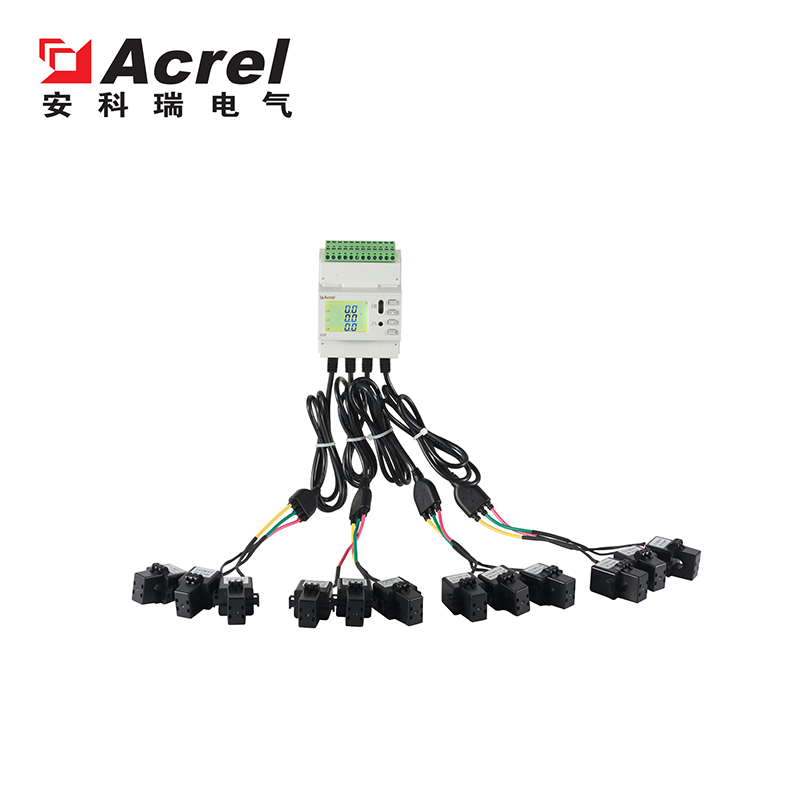

71.5*72.2*97.7 | Equipped with N(1,2,3,4) Groups of open type current transformers, each group with 3 current transformers.
D10:apertured φ10mm 5A
D16:aperture φ16mm 100A
|
| ADW210 | D10 D16 |
1S 2S 3S 4S |
71.5*72.2*97.7 | |
| ADW220 | D10 D16 |
1S 2S 3S 4S |
71.5*72.2*97.7 | |
