| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE |
| Brand Name: | LST |
| Condition: | New |
| Dimension(L*W*H): | 1200*700*1500mm (After package) |
| Weight: | 450kg (After package) |
| Power(W): | 3KW |
| Voltage: | 110/220V-single phase 50/60HZ(or customize) |
| Application: | Chocolate |
| Model Number: | M2D8O2 |
| Place of Origin: | China (Mainland) |
| Material: | SSS304 |
| ITEM NO.: | M2D8O2 |
| Productivity: | 20- 150kg/h 1-5molds/min |
| PLC: | Standard DELTA PLC,(Siemens PLC available) |
| Mold Size: | 275*175mm/275*135mm |
| Function: | mini chocolate depositor |
| Feature: | muti- function |
Quick Details
Specifications

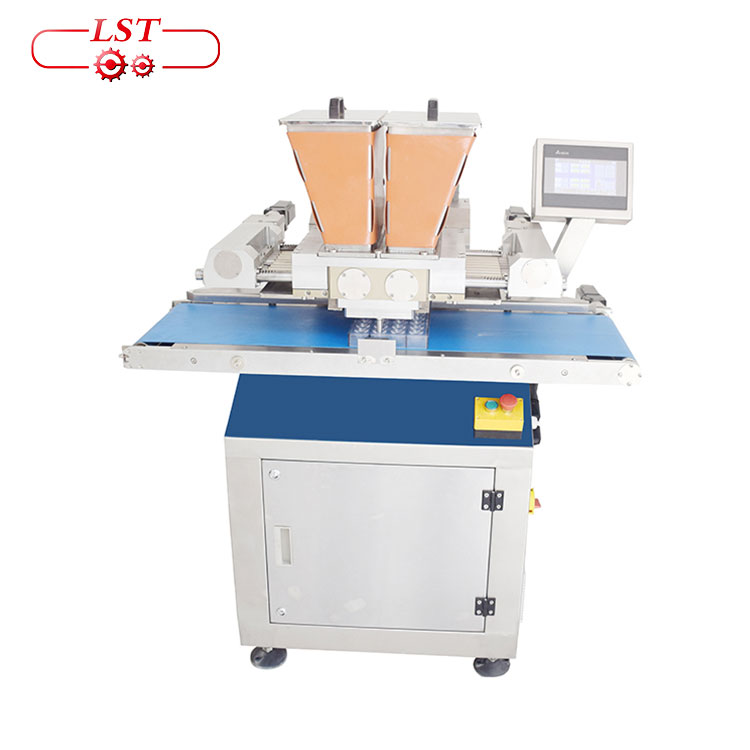

M2D8O2 Model Mini One Shot Chocolate Despositor Machine Machines
1.Brief Introduction:
1.Brief Introduction:
M2D8O2 mini one-shot depositor is able to producemany different
Kinds of high quality chocolate candies,such as chocolate blocks,
Nuts mixing, center filling etc. and quantity of filling is up to 90% .
IT is mainly for small and medium production, customized are available.
the compact structure and advanced technologies makes it popular at
Home and abroad.
2.Techincal parameters:
Molds 275*175mm,275*135mm PIstons StandardΦ20mm Pistons Heating Separated heating for hoppers and valves Conveyor Belt Removable conveyor belt Cleaning Automatic hopper cleaning Drive Motor All movements are activated by 4 sets of 0.4kw servo motors PLC Standard DELTA PLC, Siemens PLC available Productivity 20- 150kg/h Power 110/220V-single phase 50/60HZ, or customized
3.Performance features:
Quality of filling is up to 90%.Various
Small and flexible,the single machine or whole line combination is popular at
Domestic and abroad.
Casting forms suitable for different mold production, muti-function and muti-products
Advantaged PLC program control, easy operation
Quick installation and quick disassembly, easy to clean, to ensure food safety
AvAilable remote control, good for after-sale service
Pure and compound chocolate on same depositor work well
