Weight: | 32500 |
---|---|
Power(W): | 145000 |
Voltage: | 380V |
Brand Name: | Xianheng |
Condition: | New |
After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 12 months |
Certification: | CE |
Dimension(L*W*H): | 4360*2048*2550 |
Model Number: | CSM5250CNN |
Place of Origin: | China (Mainland) |
Production Capacity: | 45pcs per year |
Application: | Metal |
Quick Details
Specifications

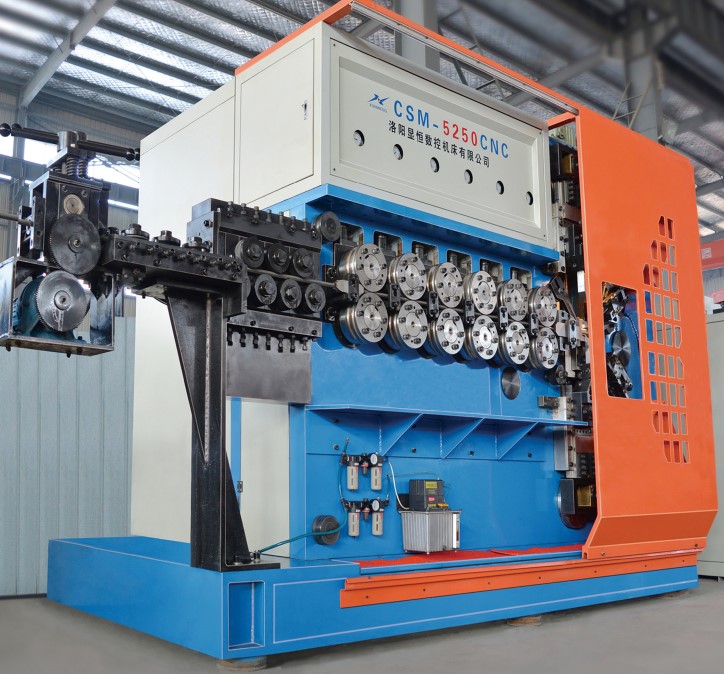

High technology advanced CE 5 axes CNC compression spring coiling machinery with Japan motor---CSM5250CNN
Product name |
8~25mm CNC compression spring coiling machine | |
Model number |
CSM5200CNC | |
Suitable for |
Copper,aluminium,alloy,carbon steel,stainless steel | |
Color |
Grey/Blue | |
Numbers of axis |
5 axes(wire feeding,space,cam,upper-cutting,lower-cutiing) | |
Numbers of wire feeding wheel/roller |
4 pairs | |
Rotation |
Left or right | |
Rated voltage |
3 phase,AC380V/50Hz | |
Wire diameter |
Φ8~Φ25mm | |
Outside diameter |
Max.Φ280mm | |
Wire feeding lenght |
Unlimited | |
Wire feeding speed |
0~30m/min | |
Wire feeding accuracy |
±0.1m | |
Power of motor |
Wire feeding servo motor |
55KW |
|
Upper cutting servo motor |
22KW |
|
Lower cutting servo motor |
22KW |
|
Diameter servo motor |
11KW |
|
Pitch servo motor |
11KW |
Total power of motor |
121KW | |
Net weight |
23500KGS | |
Machine measurements |
4360*2048*2550mm |
01), Located in China heavy industrial base --- Luoyang city,and enjoyed a high reputation;
02), Top 10 suppliers in China;
03), Has been engaged in this line more then 8 years,over 120 skilled staffs, 36 professional technicians and 18 senior engineers;
04), Military standard machine frame;
05), Using Japan Sanyo and Yaskawa motor matching famous controlling panel;
06), Advanced technology,high quality with competitive price;
07), Multi axes,five axes can work single-step or synchronously;
08), 6-grade gear ensure the high precision;
09), Planet gear speed reducer elongate the life time of servo motor;
10), Elastic coupling improving 10% produce rate;
11), Mandrel is controlled by motor,convenient and energy-saving;
12), Circuit protection system just in case of wireless feeding etc accident operation;
13), Adjustable wire feed force;
14), Tweak cutting function;
15), Detecting probe and mandrel automatic telescoping mechanism can be order separately;
16), Samll order and trial order are acceptable;
17), Customized service is welcome;
18), Free samples;
19), Short delivery/leading time;
20), Vacuum packing with fumigated wooden box;
21), Prompt reponse, within 12 hours;
22), Permanent technical service and supporting;
