| After-sales Service Provided: | No overseas service provided |
|---|---|
| Brand Name: | Hongjian |
| Automatic Grade: | Automatic |
| Type: | HJ-TPJ |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 2800kg |
| Dimension(L*W*H): | 3650*1600*1230mm |
Quick Details
Specifications

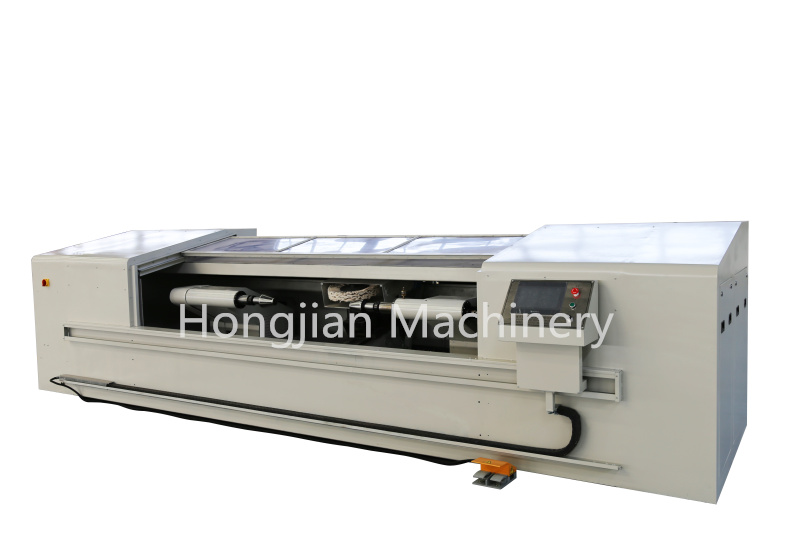

Copper Plated Gravure Cylinder Polishing Machine is designed for mirror polishing on copper layer of the gravure cylinder with high efficiency, precision, easy operation. the brightness will be enhanced 10 times which will satisfy the high requirement of engraving.
High efficiency
High Precision
Easy Operation
Durable.
Main Technical Parameters
Cylinder length: 400-1400mm
Cylinder diameter: Φ85-350mm
Cylinder rotation speed: 100-400rpm
Fabric wheel diameter: 400mm
Fabric wheel rotation speed: 2900rpm
Fabric wheel moving speed: 520-800mm/min
Power Supply: 7.9 KW
Dimension: 365016001230mm
Weight: 2800 kg
Customer Responsibility: 380/440V AC,3 phase
