Product no:Xk200

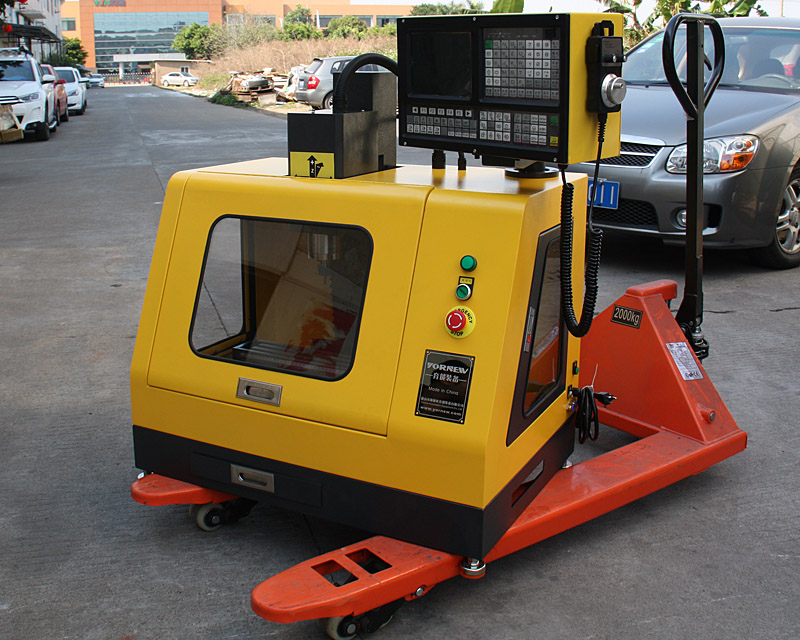

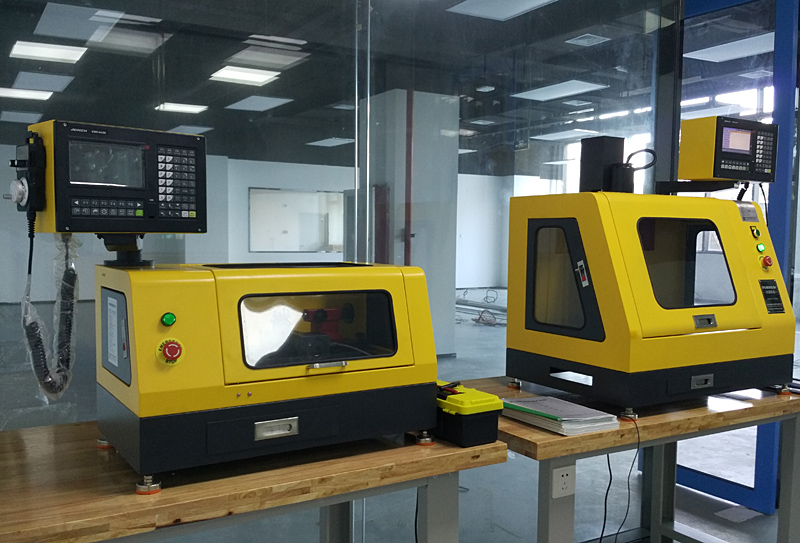

Product name: Desktop CNC CNC Milling



Features

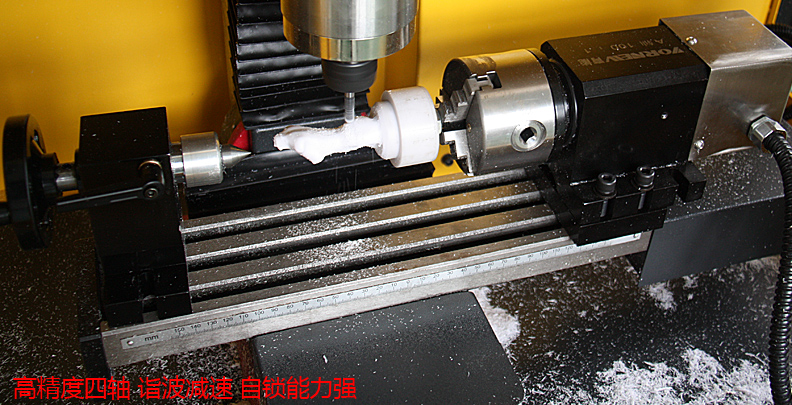

1.High performance 4 axis milling CNC controlle.
2.the standard spec includes electronic hand wheel.
3.Selection of high -quality casting materials, more compact.
4.X, y, z, a four axis micron level interpolation accuracy controlling;
5.USB/u dis/rs232com etc many kinds of communication mode, to help users achieve different data transmission and softwareupgrades easily.
6.Network interface, supporting for remote monitoring and dnc file transfer processing
7.Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
8.Macro variable, macro definition programming, realizing a variety of logical relations.Support macro program with parameters, convenient to the user programming
9.Dxf+g code template function, converting dxf automatically to g code for processing.
10.with the automatic aligning instrument.
10.Teaching function:Teaching+ simplified instruction programming, teaching methods in table format, that is simple and intuitive.
12.Graphic simulation function:Show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine, to exam if the preparation process is correct.
13.Multi interface selection:Support multi language interface display, automatic fault alarm.Processing information display, processing time, the number.
14.Parameter tabular:Input / output address number setting, only need to fill in the corresponding value in the configuration table.
15.7 inch super large colorful(800*480) LCD screen.
16.Applicable industry:Technology development, advertising design, art, ocational technical college education & training CNC and DIY enthusiasts.


Technical parametes
X axis travel:210mm
Y axis travel:95mm
Z axis travel:200mm
Spindle taper:Mt3/r8
Tool dia.Range:4-16mm
Control system:Adtech 4640, optional siemens 808d or gsk980mdc CNC controller
Instruction:Dxf+g code template function, converting dxf automatically to g code for processing
Mpg handwheel:4 axis
Spindle motor:350w(1.5kw optional)
Spindle speed:100-3500r/min(24000r/min optional)
the max moving speed:1200mm/min
the max feeding speed:500mm/min
Power of x:1.35 nm
Power of y/z:2.2nm
Positioning accuracy:0.03mm
Repeatability accuracy:0.02mm
Transmission:Ball screw
Table size:39092mm
T slot (amountwidth):312mm
Max.Load:30kg
Table structure:Full cast iron
Power:230/120v
Weight(nw/gw):140/160kg
Overall dimension:845580850mm
Packing size:9306501100mm
