| After-sales Service Provided: | No overseas service provided |
|---|---|
| Certification: | CCC CE |
| Voltage: | 36V |
| Dimensions: | 900mm*1900mm*1576mm |
| Brand Name: | Xionggu |
| Warranty: | one year |
| Power(W): | 380v |
| Usage: | Pipeline Welding Machine |
| Motor Type: | DC Motor |
| Rated Duty Cycle: | 60% |

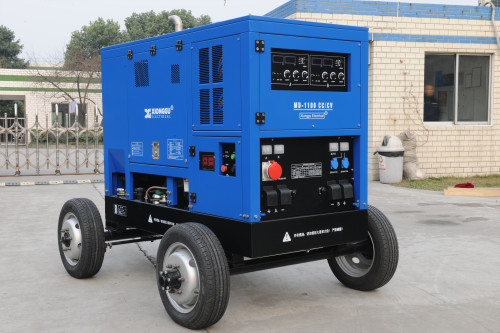

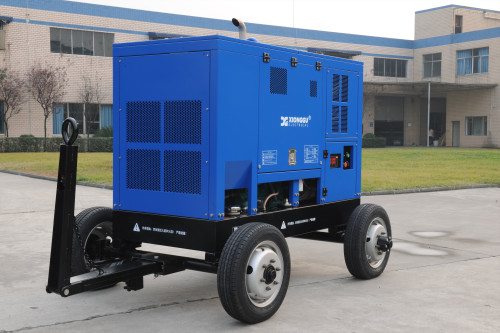

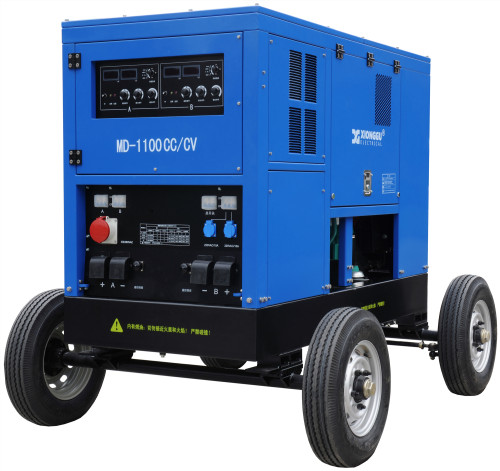

| Model Number: | MD-1100CC/CV |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Color: | Blue |
Quick Details
Specifications
Function: FCAW-SS, SMAW (cellulose stick), SMAW (low hydrogen stick), GTAW
Features:
Double welding power sources, two welding output;
Diesel engine driven, one click operation, microcomputer monitoring, automatic protection and alarm;
Dust-proof, sand-proof, water-proof and vibration-proof with good adaptability to the environment;
Digital preset and display of welding current (CC) and voltage (CV).
Main Technical Parameters:
Model |
MD-1100CC/CV | ||
Product ID |
4123000000 | ||
Electrode Holder |
1 |
2 | |
40A | |||
Rated Output Current/Voltage |
400A/36V | ||
Rated Duty Cycle |
60% | ||
Max. Open-Circuit Voltage |
CV |
79V | |
CC |
83V | ||
Output Voltage Range |
17.5~34V(CV) | ||
Output Current Range |
50~400A(CC) | ||
Engine Rated Output Power |
50kW | ||
Auxiliary Power Supply |
1380V/30kVA/50Hz | ||
2220V/1kVA /50Hz | |||
Fuel Tank Capacity |
60L | ||
Load Fuel Consumption |
0.568L/kWh | ||
Ambient Temperature |
~55℃ | ||
Altitude |
4000m | ||
IP Rating |
IP23 | ||
Accessories |
XG-90LN wire feeder, MOG-350Self-shielding torch | ||
Weight |
1000kg | ||
Dimensions (W*L*H) |
900mm*1900mm*1576mm | ||
