| Brand Name: | WALI |
|---|---|
| Cover Material: | material |
| Type: | Single-Span Agricultural Greenhouses |
| Size: | Small |
| Layer: | Painting |
| Place of Origin: | China (Mainland) |
| Model Number: | WL-500H |
| engine: | gas engine |
| gear box: | 3+1*2 |
| dump type: | hydraulic |
Quick Details
Specifications

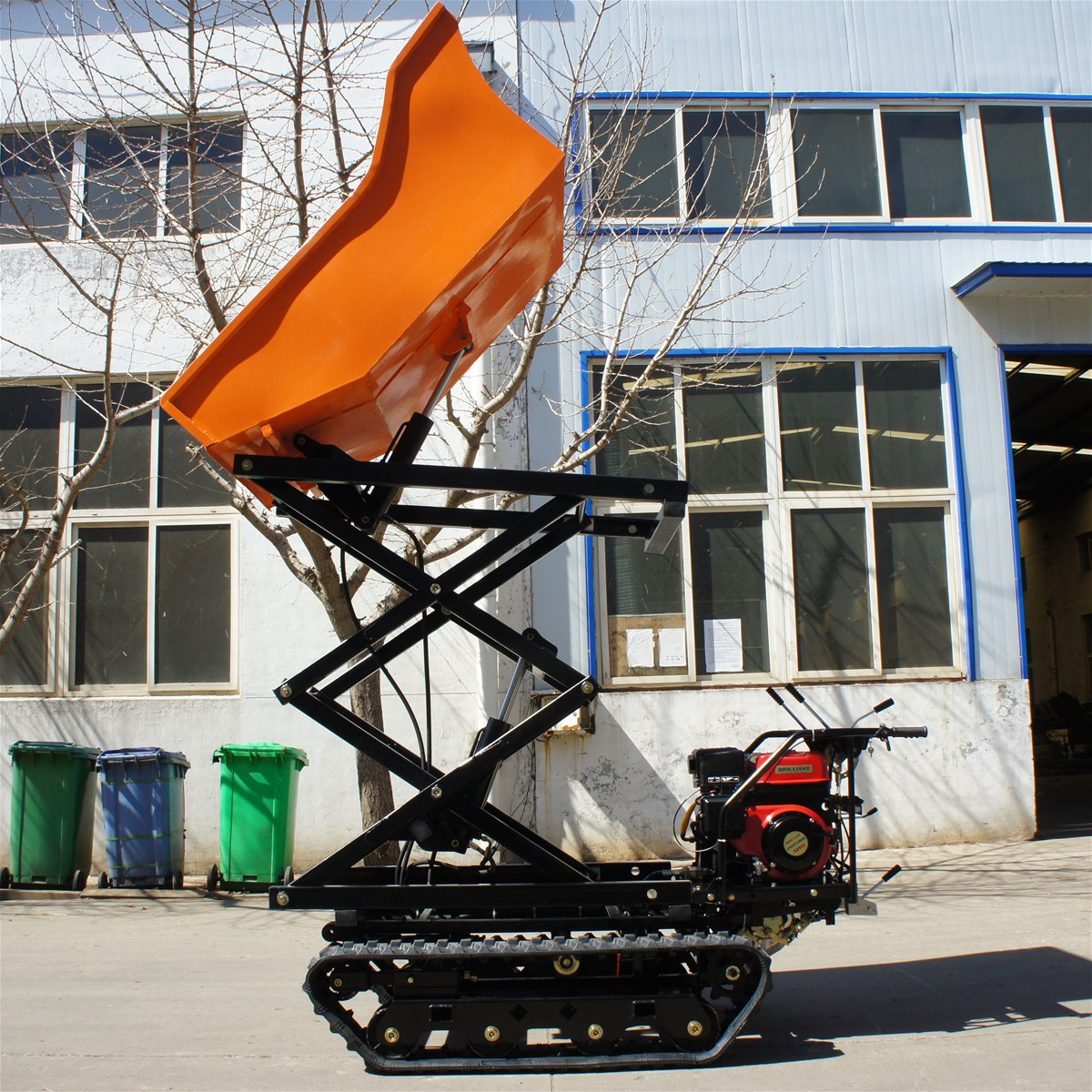

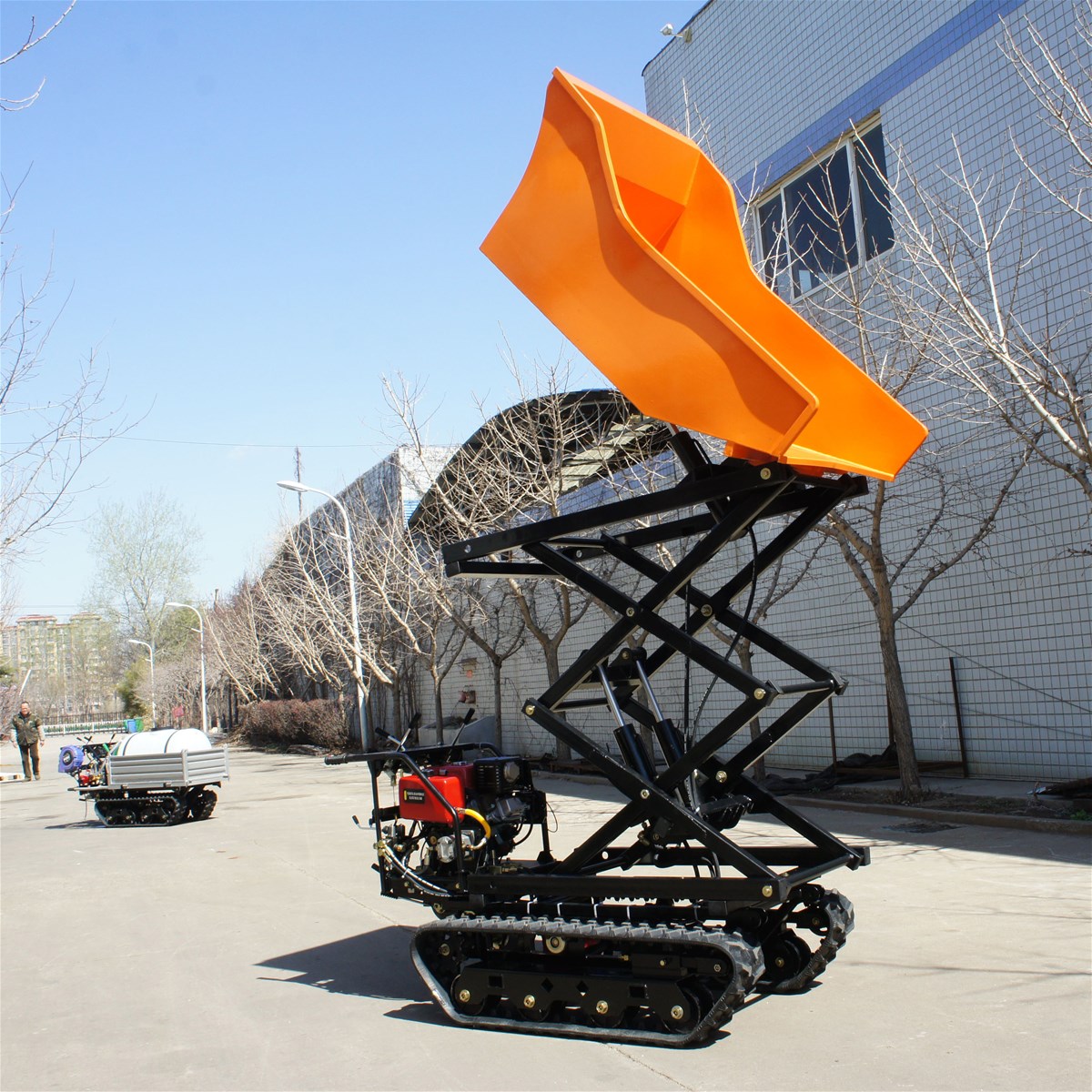

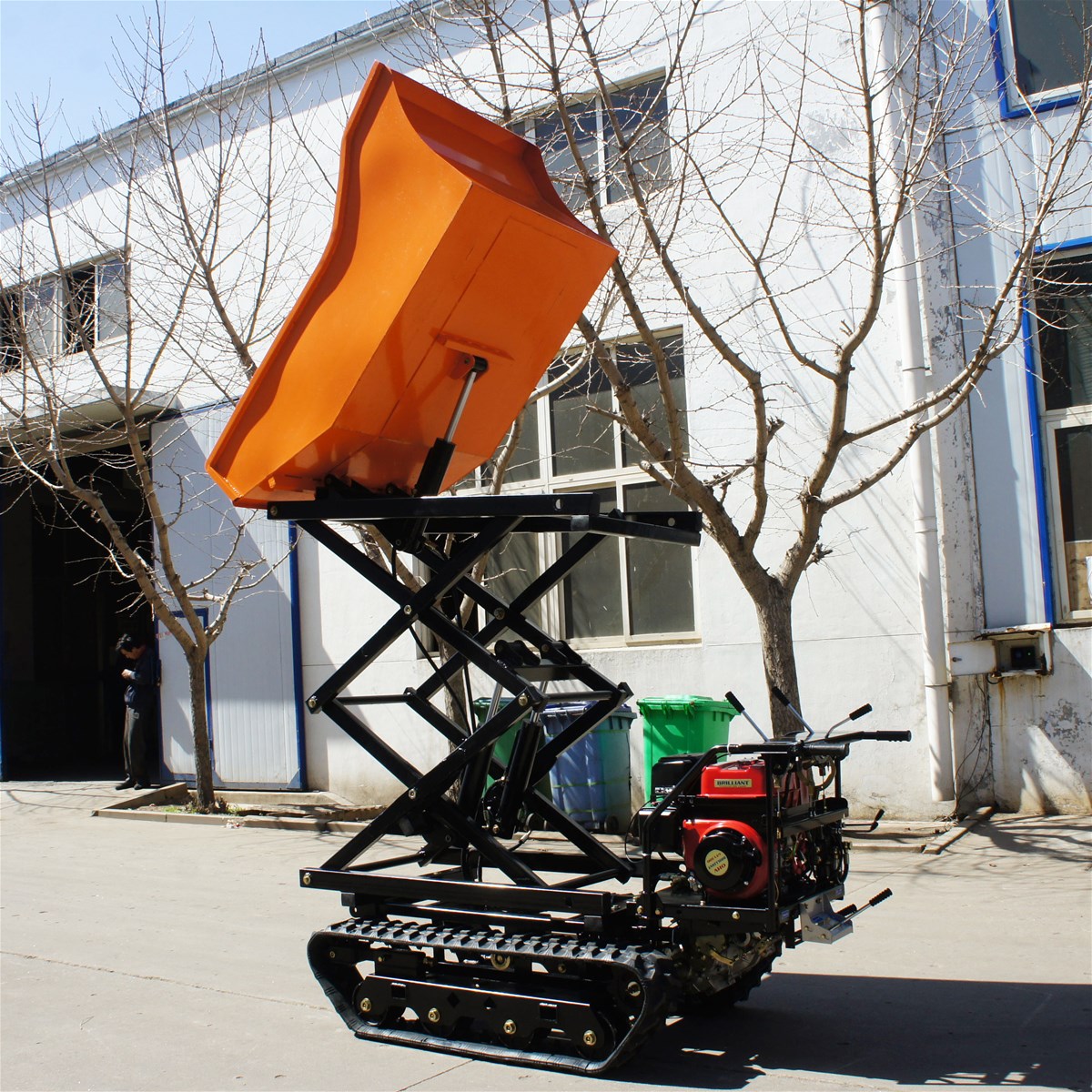

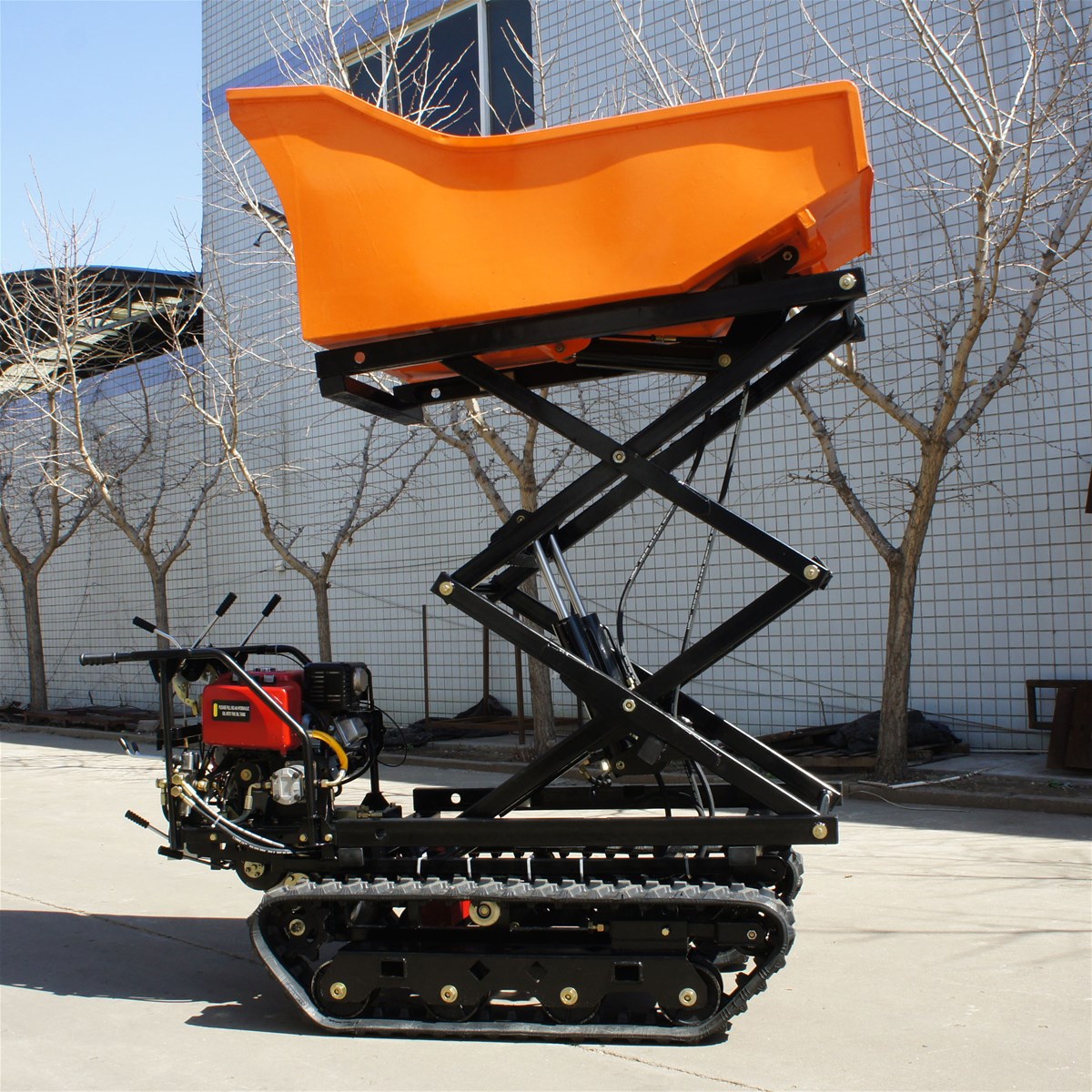

Mini crawler type orchard truck dumper with lift container
Engine:Changfa diesel engine engine 8.5KW
Dump type: Vertical lifting + hydraulic tipper
Gear box: 3+1*2 (high and lower)
Loading weight: 500 KG
Model |
WL-500H |
Engine |
Changfa diesel engine186F/10HP |
Track grounding length |
800 mm |
Track gauge |
600 mm |
Track width |
230 mm |
Start type |
Electric |
Loading weight |
500 KG |
Gear box |
(3+1) * 2 configuration high low |
Drive speed |
F 1.8-6.1/R1.8-3.6 km/h |
Container size |
1400x900x700 mm |
Package size |
2160x1100x1430 mm |
Overall size |
2060x1000x1280 mm |
Net weight |
632 KG |
Ground distance |
140 mm |
Slope angle |
20 degree |
Lift height |
1800 mm |
Control type |
Hydraulic hand hold |
Lift container /dumper |
Hydraulic cylinder |
