Product introduction:

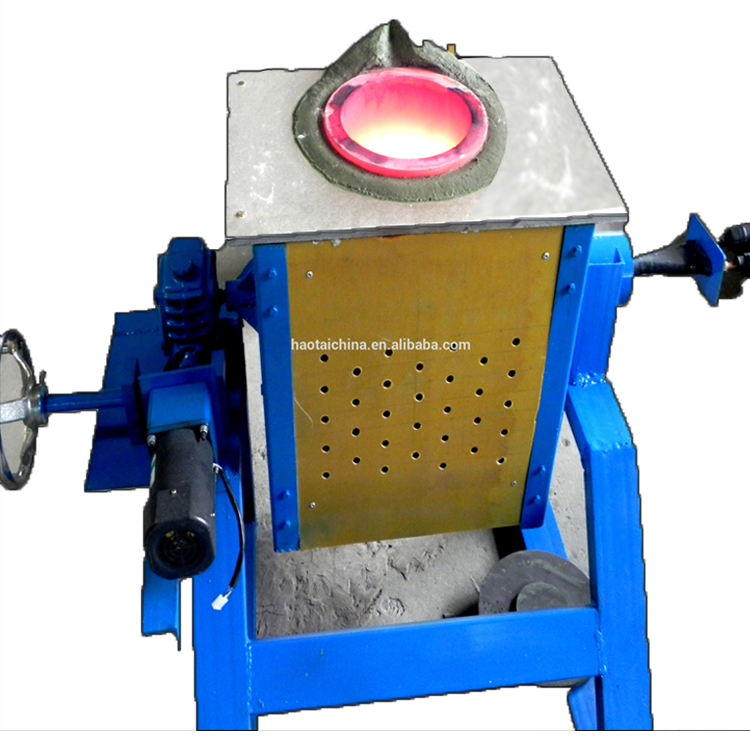

Induction Melting furnace Is widely applicable to melting stainless Steel, copper, aluminum, zinc, gold, silver,platinum and Other metal or alloy, it is characterized by speed melting, energy efficiency, small footprint, easy temperature control, low pollution, environmental friendly and other advantages.

Working Principle
IGBT frequency conversion power module technology has adopted in the melting Furnace which can guarantee the melting point. as the AC power on, machine will generate strong frequency conversion power which will finally form a strong magnetic field as the power go through electromagnetic coil. Then as the magnetic field works, heating of work table will result in prompt heating of materials to be melt.

Main features:

1. IGBT module and inverting technologies.
2. Safety and Reliability Guarantee: Short circuit and Overheating prOtection.

3. Designed to work continuously every day;

4. Simple assembly and Easy Operation: no need for additional adjustment.

5. Portable and light weight, suitablE for PARticulate metal or small Quantity metal melting

6. Environmentally sound and energy saving: over 95% heat efficiency.

7. Convenient to change induction coil or crucible.



Technical parameters

Model	GW-0.2	GW-0.4	GW-0.8	GW-1	GW-2	GW-4	GW-5	GW-10
Amount of molten metal	1-2KG	1-4KG	1-8KG	1-15KG	1-25KG	1-40KG	1-50KG	1-100KG
Power	2KW	5KW	10KW	15KW	20KW	30KW	45KW	70KW
Working Power Supply	220V	380V	380V	380V	380V	380V	380V	380V
High Frequency	30-50KHZ
Int        ermediate                    Frequency	1-15KHZ
Weight	15KG	25KG	35KG	70KG	70KG	90KG	120KG	150KG
P     process Time	≤5MIN	≤5MIN	≤10MIN	≤15MIN	≤20MIN	≤30MIN	≤40MIN	≤40MIN

ask for shipping:
1. If you have shipper in China around, we can send the machine directly to them for free.
2. If you want us sending the machine to you directly, we can send the machine to China any main ports promptly.


FAQ
1.how to install your machine?
We have paper installation instructions and videos for your reference.
2.Which place your factory is located?
We are located in Wuxi city, Jiangsu Province,China.
3.Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
4.What is your nature of your company dealer or factory?
We are a factory,warmly welcome to visit our factory and contact us.
5.how about the warranty?
One year quality warranty,and we provide life long technical support.

Our Service
1. Reply inquiry in 24 hours
2. Experienced staffs answer all questions in fluent English
3. Rational & pratical design according to customers' requirements.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs

Our Company
1. More than 15 experience in designing and manufacturing induction Melting machines. We have strict QC system and won great reputationS from our clients.
2. CE certificate.
3. OEM& ODM available.
4. Products have been exported to Canada, Australia, Georgia, Uzbekistan, Russia, Turkey, Brazil, India, Pakistan, Thailand and other countries.
