INTRODUCTION:

HDRL Scaffold produces all types of ringlock scaffolding include layher allround scaffolding types, USA type scaffolding, New Zealand Types of Ringlock Scaffolding and Spanish type multidirectional scaffolding, etc. All types of ringlock scaffolding are made from OD48.3mm scaffold tube and OD60.3mm scaffold tube for shoring heavy duty.

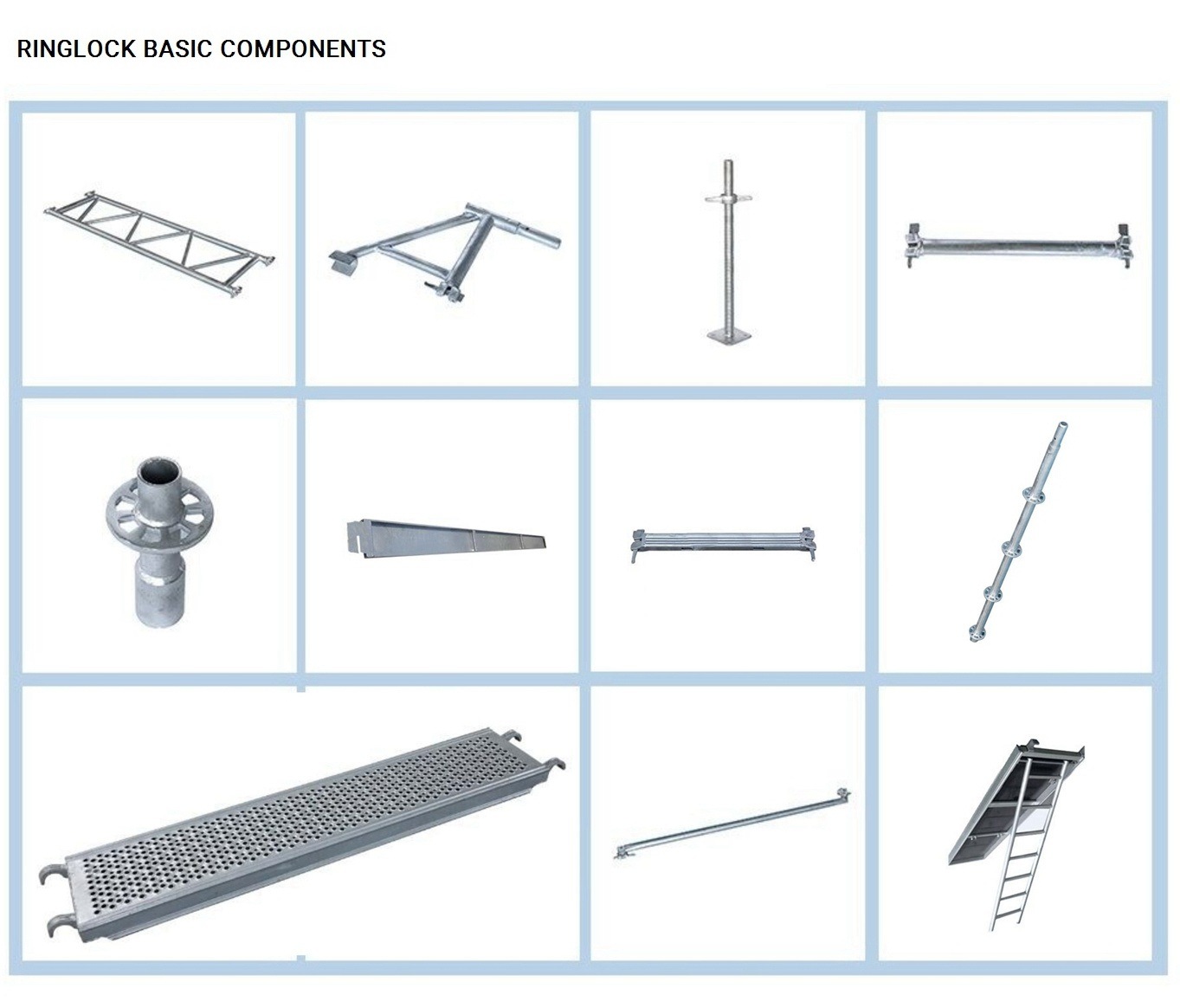

Ringlock Vertical Standard

Name	Size	Item No.	Weight(kgs/PC)
Vertical Standard	48.3x3.2x500mm	RV050	3.20
Vertical Standard	48.3x3.2x1000mm	RV100	5.70
Vertical Standard	48.3x3.2x1500mm	RV150	8.20
Vertical Standard	48.3x3.2x2000mm	RV200	10.50
Vertical Standard	48.3x3.2x2500mm	RV250	13.20
Vertical Standard	48.3x3.2x3000mm	RV300	15.40

Ringlock Horizontal Ledger

Name	Size	Item No.	Weight(kgs/PC)
Horizontal Ledger	48.3x3.2x730mm	RH073	3.45
Horizontal Ledger	48.3x3.2x1090mm	RH109	4.78
Horizontal Ledger	48.3x3.2x1400mm	RH140	5.96
Horizontal Ledger	48.3x3.2x1570mm	RH157	6.62
Horizontal Ledger	48.3x3.2x2070mm	RH207	8.50
Horizontal Ledger	48.3x3.2x2570mm	RH257	10.39
Horizontal Ledger	48.3x3.2x3070mm	RH307	12.28

Ringlock Diagonal Brace

Name	Size	Item No.	Weight(kgs/PC)
Diagonal Brace	2000x730mm	RDB073	8.03
Diagonal Brace	2000x1090mm	RDB109	8.41
Diagonal Brace	2000x1400mm	RDB140	8.85
Diagonal Brace	2000x1570mm	RDB157	9.42
Diagonal Brace	2000x2070mm	RDB207	10.10
Diagonal Brace	2000x2570mm	RDB257	11.20
Diagonal Brace	2000x3070mm	RDB307	12.38

Ringlock Base Collar

Name	Size	Item No.	Weight(kgs/PC)
Base Collar	250mm	RBC025	1.74

Ringlock Steel Plank

Name	Size	Item No.	Weight(kgs/PC)
O Hook Steel Plank	320x1.5x730mm	ROP073	6.70
O Hook Steel Plank	320x1.5x1090mm	ROP109	9.27
O Hook Steel Plank	320x1.5x1400mm	ROP140	11.34
O Hook Steel Plank	320x1.5x1570mm	ROP157	13.15
O Hook Steel Plank	320x1.5x2070mm	ROP207	16.47
O Hook Steel Plank	320x1.5x2570mm	ROP257	19.74
O Hook Steel Plank	320x1.5x3070mm	ROP307	23.04

Metal Deck

Item No.	Description	Size
1000	Metal Deck	240*45*1.2*1000M
3000	Metal Deck	240*45*1.2*3000M
4000	Metal Deck	240*45*1.2*4000M

Catwalk

Item No.	Description	Size
1219	Catwalk	500*45*1.2*1219MM
1829	Catwalk	500*45*1.2*1829MM

Ringlock Steel Toe Board

Name	Size	Item No.	Weight(kgs/PC)
Steel Toe Board	730mm	RTB073	2.10
Steel Toe Board	1090mm	RTB109	3.00
Steel Toe Board	1400mm	RTB140	3.80
Steel Toe Board	1570mm	RTB157	4.20
Steel Toe Board	2070mm	RTB207	4.40
Steel Toe Board	2570mm	RTB257	6.60
Steel Toe Board	3070mm	RTB307	7.90

Ringlock Aluminum Stair

Name	Size	Item No.	Weight(kgs/PC)
O Hook Aluminum Stair	2000x2070mm	ROS207	26.00
O Hook Aluminum Stair	2000x2570mm	ROS257	30.00
O Hook Aluminum Stair	2000x3070mm	ROS307	36.00

Ringlock Stair Handrail

Name	Size	Item No.	Weight(kgs/PC)
Stair Handrail	2570mm	RSH257	14.70
Stair Handrail	3070mm	RSH307	16.60

Ringlock Stage Bracket

Name	Size	Item No.	Weight(kgs/PC)
Stage Bracket	390mm	RSB039	4.70
Stage Bracket	730mm	RSB073	6.50

Ringlock Adjustable Base Jack

Name	Size	Item No.	Weight(kgs/PC)
Base Jack	Dia38x4.5x700mm	RBJ070	4.20

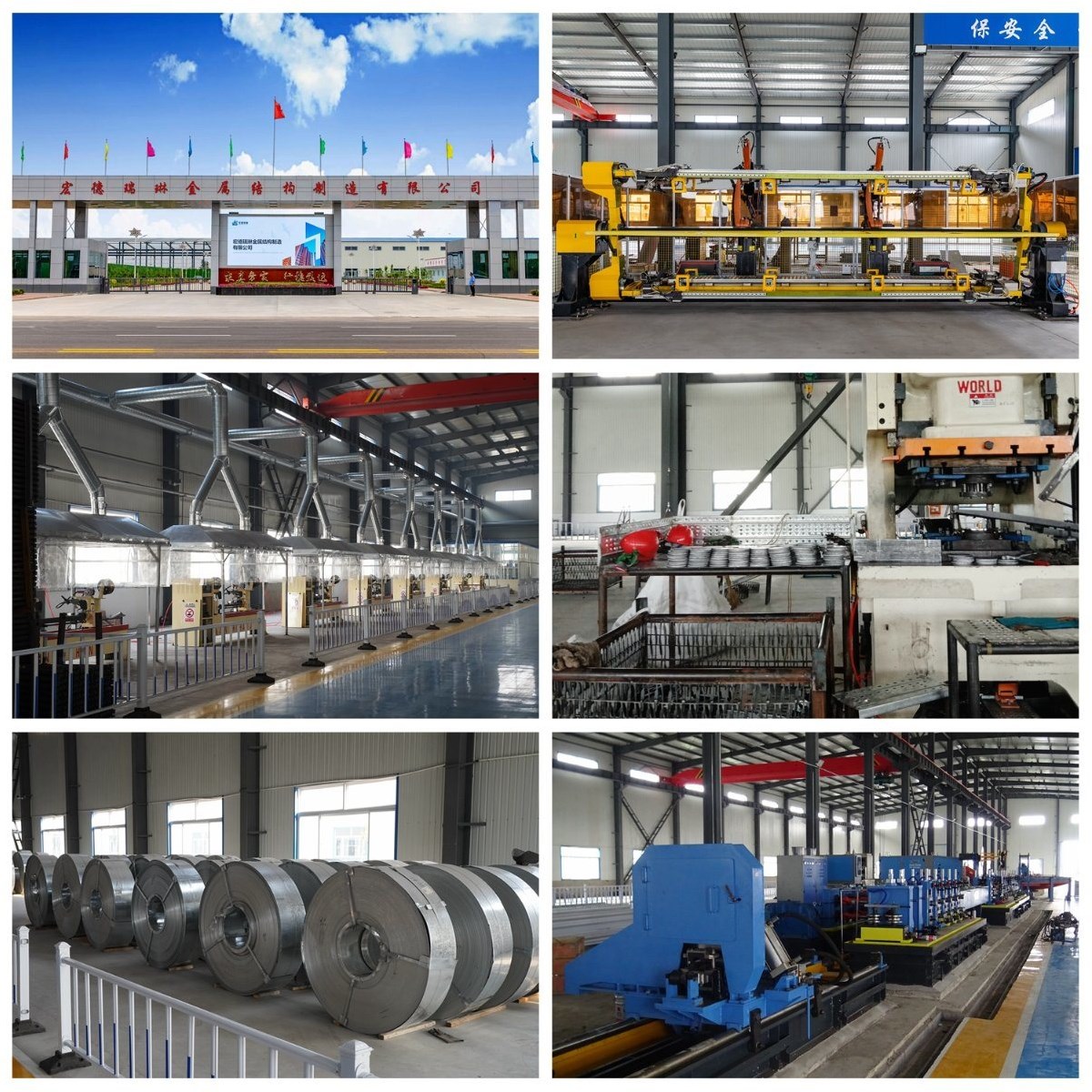

FACTORY PHOTOS:

Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Q2: Where is the loading port?
A: Qingdao port or Tianjin port
Q3: What's the MOQ of the product?
A: Different item has different MOQ. Normally one pallet is preferred.
Q4: What certificates do you have?
A: We have ISO 9001, ISO 14001, CE, SGS, and TUV certification.
Q5: Can I get some samples?
A: Yes, Sample is free, but usually the customer will pay for the shipping cost.
Q6: Do you have an OEM service?
A: Yes. We can provide OEM and ODM services as your requirements.
Q7: how long is the production cycle after ordering?
A: General it is about 20-30 days.
Q8: What is the payment methods?
A: T/T payment is preferred and other payment terms is accepted.
