Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 years
Brand Name: haotai
Usage: Melting Furnace
Condition: New
Certification: CE
Place of Origin: China (Mainland)
Type: Induction Furnace
Name: Egypt electric induction furnace 8 tons with best price

Specifications

1.Introduction

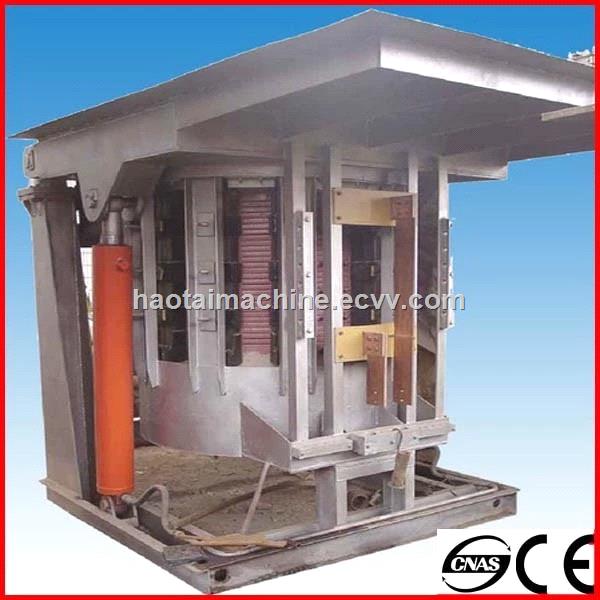

Induction furnace is widely applicable in steel melting, steel casting, and other metal alloy melting. It is composed of furnace body, hydraulic system, water cooling cable and furnace body changing switch, electrical panels.
We have induction melting furnace from 50kg to 70tons.

2.Working Principle

the induction furnace uses the medium frequency power source to establish the medium frequency magnetic field, which causes the internal induction eddy current to achieve the purpose of melting materials.

3.Main features:

1).Solid steel structure and durable;

2). Good magnetic isolation, safe and reliable;
3). Solid frequency conversion power supply, easy operation; Adjustable power rate, Easy operation and maintenance
4). Easy to start up with load or free of load
5).Energy saving design type.

Technical parameters

Type
Rated power (KW)
Transformer capacity (KVA)
Incoming voltage
(V)
Incoming current (A)
Pulse
Melting rate
(min)
Electricity consumption(kwh/t)
steel
Copper
Al
GW-0.05t
50
50
380
80
6
20-40
750
510
650
GW-0.1t
100
100
380
160
6
20-40
700
510
640
GW-0.15t
160
200
380
256
6
20-40
650
500
630
GW-0.25t
200
320
380
320
6
20-40
650
500
610
GW-0.5t
350
400
380/750
560
6
30-50
630
480
570
GW-1t
800
1000
380/750
1280/
656
6
40-50
620
450
540
GW-2t
1400
1800
750/750
1148/
574
6/12
45-60
600
440
530
GW-5t
3000
4000
750
1140
12
50-80
570
420
510
GW-10t
6000
8000
950
2280
12
50-90
560
410
490
GW-15t
8000
10000
950
1520
24
50-90
550
400
480
GW-20t
10000
12500
950
1900
24
50-90
530
400
470
GW-30t
15000
20000
950
2850
24
50-90
520
400
450
