Name: EAF/electric arc furnace for melting metal iron

Specifications

Product Description:

Electric arc furnace (EAF) is steel making equipment untilizing the thermal engergy of arc generated between electrodes and scrap of metallic material, it is widely used for production of top quality carbon steel, alloy steel, stainless steel in steelmaking works and steel casting plant, we have EAF capacity from 0.5t to 125t.





Composition of EAF:

* Furnace body
* Busbar system
* Furnace tilting mechanism
* Electrode lifting mechanism
* Roof up and rotating mechanism
* Water-cooling system
* Hydraulic system
* High voltage system
* Low-voltage system
* Electric arc furnace transformer





Features:
-Electric aRC furnace is rOof Lifting rotation and Scrap Top charging
-It is divided into common power, super power, ultra high power according to the adaption.
- It is divided into left operation and right operation according to the operation mode.

-Hydraulic tilting system

- Electrode regulation controlled by Siemens PLC

- Furnace operation controlled by Siemens PLC

- Copper-steel composite steel conductive arm

-Energy saving busbar system
-the tapping form includes: tapping from spout tapping and EBT tapping.

-Tubular water-cooled wall and roof

-Manipulators with water cooled lances for blowing oxygen and carbon

-Advanced designs of the furnace ensure operation reliable and performance excellent.





Main Technical Parameter

Type

Inner dia. of furnace shell

Rated Tapping capacity

Transformer capacity

Secondary voltage of transformer

Dia. of electrode

PCD.of electrode

Circulation water flow



mm

ton

KVA

V

mm

mm

M3 / hr

HX-20

4200

20

10000

280-100

400

1050

240

HX-30

4300

30

12500

314-116

400

1050

405

HX-40

4600

40

18000

392-158

450

1150

455

HX-50

5200

50

25000

436-184

500

1300

504

HX-60

5500

60

40000

547-223

550

1350

900

HX-75

5800

75

50000

610-250

600

1450

1100

HX-100

6400

100

50000

673-277

600

1450

1200

HX-125

6800

125

63000

760-310

650

1500

1300

Note: Specifications in the above list is for reference only, it can be according to client requirements.

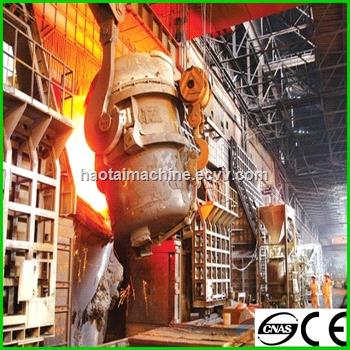

 EAFelectric arc furnace for melting metal iron
