1. Machine type

1) MW5 standard series round electromagnetic lifter

2) MW03 series round electromagnetic lifter

3) MW84 series steel plate electromagnetic lifter

4) MW04 series small diameter round electromagnetic lifter

5) Permanent magnetic chuck



2. Application and Features

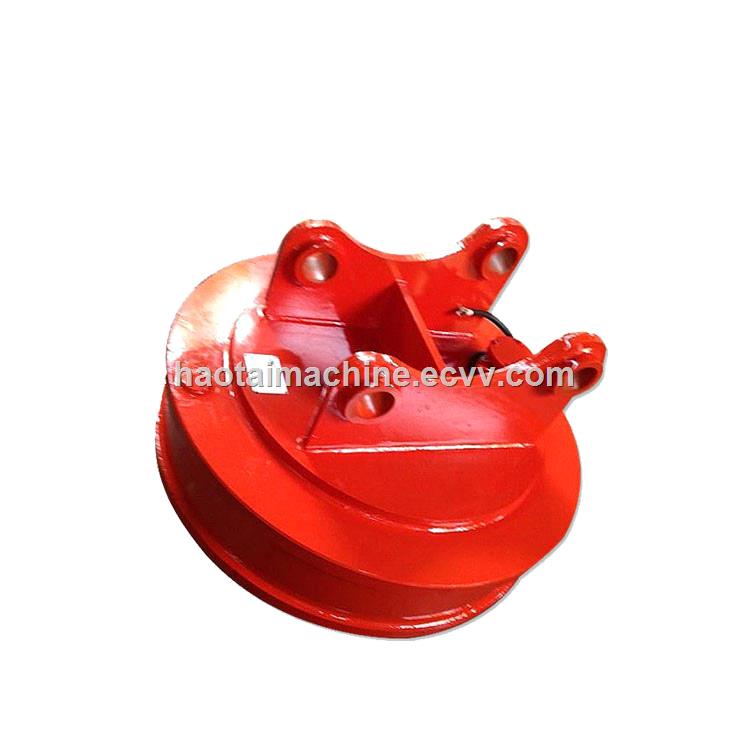

1) MW5 series electromagnetic lifter is suitable for lifting steel scrap, cast iron ingot and such loose magnetic material, it has the features of big magnetism and penetration of magnetic field.

2) MW03 series electromagnetic lifter designs the best magnetic circuit according to whole billet with the features of big magnetic circuit. It has light weight, big lifting capacity, little power consumption, safety and reliable

3) MW84 series electromagnetic  lifter is designed for lifting steel plate. It has rational distribution of magnetic circuit and big penetration of magnetic field. It adopts omniseal structure with light weight. the coil is processed by vacuum dry and vacuum gule processing make the lifter has a ling working life.

4) MW04 series small diameter round electromagnetic lifter is suitable for lifting single thin steel plate and long steel plate.

5) Permanent magnetic chuck is widely used for machining, mould making, dockyard, steel structure plant, warehouse, workshop and so on.

    3.     Features:

• Adopt Totally sealing structure with good property of moisture-proofing
• Majorized design by computer with reasonable structuRe, Light dead-weight, strong attraction force and low energy consumption
• the energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches Grade C with long service life
• Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 60%,which improves the efficiency of the electromagnet
• High temperature type electromagnet adopts unique method of Heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
• Simple and convenient installation, operation and maintenance

4. Technical parameter of MW5 series
