| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE/ISO/FDA |
| Brand Name: | JCUT |
| Condition: | New |
| Weight: | 1200KG |
| Dimension(L*W*H): | 1300*2500 |
| Power(W): | 3.5/4.5/6 |
| Voltage: | 220V/380V |
| Model Number: | 1 |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |

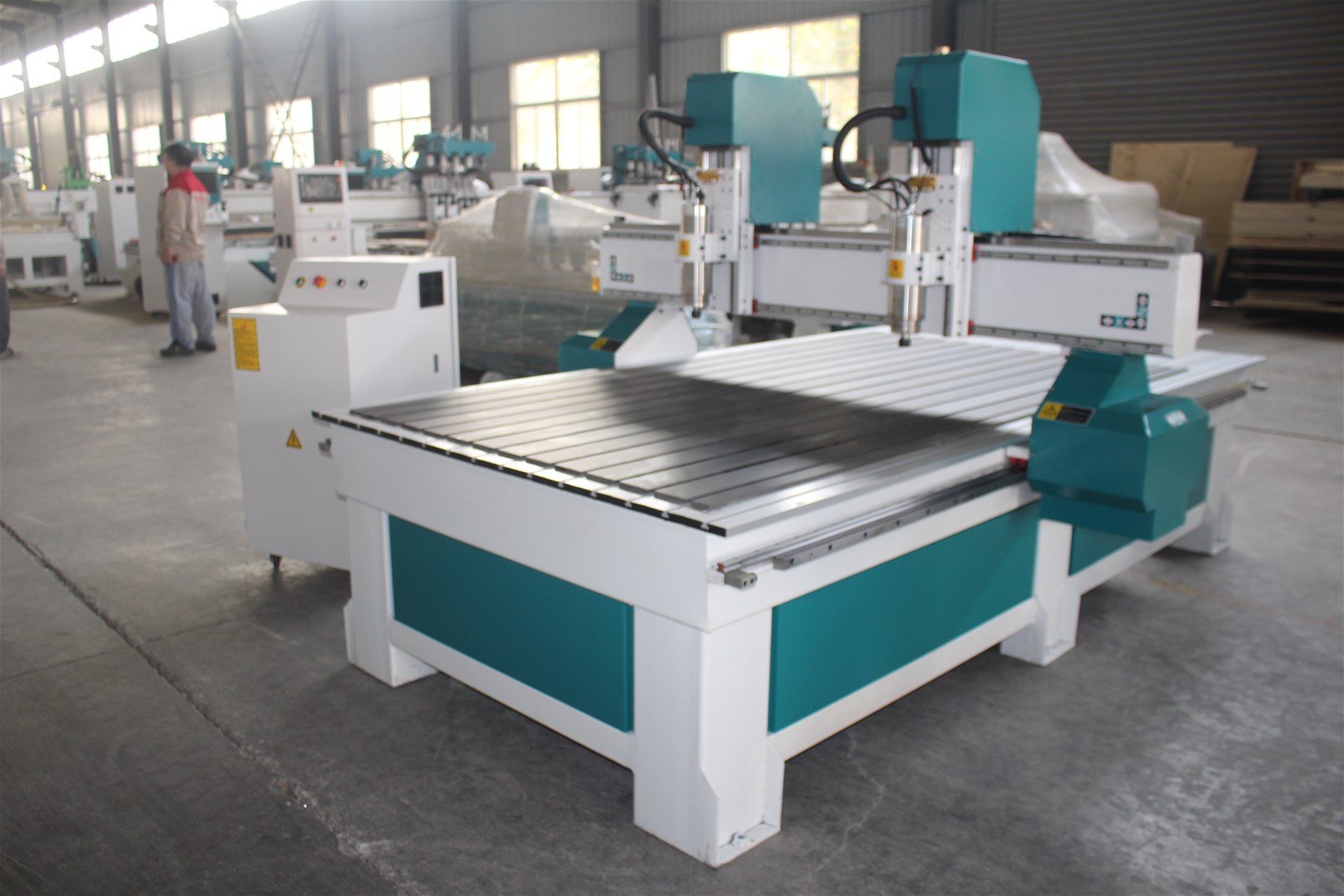

| Product name: | 1325 Cnc Router |
| Spindle: | 3.5kw air cooling spindle(4.5KW/5.5KW/6KW) |
| Motor: | Stepper motor 450B(Optional:servo motor) |
| Control system: | NC studio, computer cabinet(March3/DSP Control system) |
| Driver: | Stepper Driver AIGT 860H |
| Z-Axis: | Z axis TBI ball screw |
| X,Y axis: | X,Y axis 20 linear rail |
| Inverter: | 3.7kw Inverter |
| Rack: | X,Y axis 20 linear rail |
| Machine Table: | T slot machine table(Vacuum Machine Table) |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:
2.Techincal parameters: 1325 wood CNC machine configuration Spindle 3.5kw air cooling spindle(4.5KW/5.5KW/6KW) Motor Stepper motor 450B(Optional:servo motor) Driver Stepper driver AIGT 860H(Optional:servo driver) Inverter 3.7 kw inverter Z axis Z axis TBI ball screw X,Y axis X,Y axis 20 linear rail Rack X,Y axis helical rack, A whole die-casting gear case Control system NC studio, computer cabinet(March3/DSP Control system) Voltage 220v/380v Machine table T slot machine table(Vacuum Machine Table) Machine size 2050*3050*1650mm Net weight 1200kg
3.Performance features:
High Efficiency wood CNC router machine,Low price
