Type: | Fencing, Trellis & Gates |
---|---|
Feature: | Easily Assembled |
Frame Finishing: | Not Coated |
Frame Material: | Metal |
Brand Name: | zhuanye |
Type: | wire mesh |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Cheap cattle panels for sale spectification
Specification | Normal size |

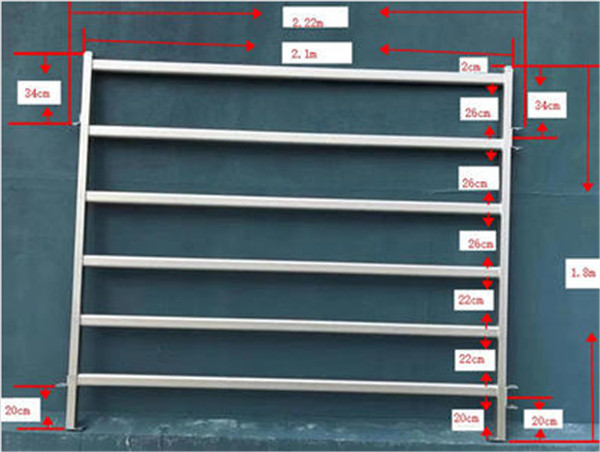

Height x Length | 1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m 3.37*1.8m |
Pole Style | Round pipe or square tube or oval tube |
Pole Specification | 32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on |
Package Details | in steel pallet or in bulk |
We can produce with your demand
Cheap cattle panels for sale process
Welded craft: hot dip galvanized tubeswelded togetherwelding spots polishingspots antirusting paintspots silver paint
Cheap cattle panels for sale surface treatment
Hot-dipped galvanized or paint
Cheap cattle panels for sale Feature
Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
Robust: interlocking system makes the fence very stable; quality steel and fully welding makes the panel more stronger; heavy duty and anti-broken; high zinc or PVC coated make the fence durable
Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations. and it benefit grassland protection.
Livestock Protection: no sharp edge, very smooth welding spot finihment.
Cost-effective: give your corral years of service and minimal maintenance at a low in
Main markets: Australia, European countries, Canada, America and Asia countries
Cheap cattle panels for sale with different style
Round style
Material | Pre hot dipped galvanized steel pipe |
Finishing(zinc coating) | More than 15 microns |
Height x Length | 1800mm x 2100mm |
Vertical Pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
Horizontal Rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
Welding | Fully welded post brackets |
Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
Square tube style
Material | Pre hot dipped galvanized steel pipe |
Finishing(zinc coating) | More than 15 microns |
Height x Length | 1800mm x 2100mm |
Vertical Pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
Horizontal Rails | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
Welding | Fully welded post brackets |
Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
Oval tube style
Material | Pre hot dipped galvanized steel pipe |
Finishing(zinc coating) | More than 15 microns |
Height X Length | 1800mm x 2100mm |
Vertical Pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
Horizontal Rails | 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
Welding | Fully welded post brackets |
Welds | Bull bars are fully welded, each weld is protected with epoxy paint |
Cattle panel gate
Height x Length | 2200mm x 2000mm |
Frame | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
Cattle Gate Horizontal Rail | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
Finishing | Hot dipped galvanized,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets,heavy duty hinges |
Cheap cattle panels for sale application
Used in raising the animals,specially the cattle,the cow,the horse,the sheep etc.
Package of Cheap cattle panels
There is a layer of bubble wrap at the bottom of pallet, which can protect the last barrier;
There is a small piece of carton paper between each two barriers to prevent rubbing against each other;
There is also carton paper under the pacing belt;
Finally all barriers will be packed by several layers of plastic film.
