Brand Name: | Silicontra |
---|---|
Frequency: | 433mhz |
Frequency Range: | 410-525MHz |
Polarization: | spi |
Weight: | 0.001g |
Model Number: | SX1278 |
Place of Origin: | Alderney |
Size: | 15*15mm |
Distance: | 5km |
Operating Voltage: | 2.4V-3.7V |
Quick Details
Specifications

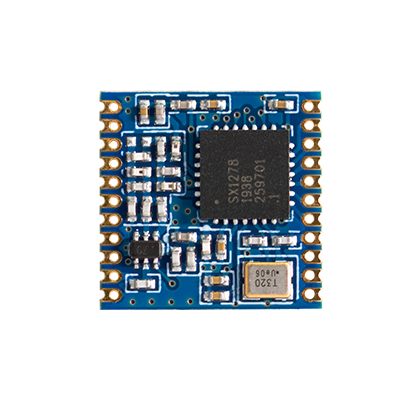

SX1278ZTR4-GC wireless module is a radio frequency module based on SEMTECH RF integrated chip SX127X. It is a high-performance IoT wireless transceiver. Its special LORA debugging method can greatly increase the communication distance and can be widely used in short-distance objects in various occasions the field of networked wireless communication. It has the characteristics of small size, low power consumption, long transmission distance and strong anti-interference ability. It can be equipped with a variety of antenna solutions according to the actual application. the module is not equipped with a micro-control chip and is mainly used for customer secondary development.
NO. | Parameter Name | Parameter values details |
1 | Model Number | SX1278TR4 |
2 | Modulation mode | LoRa |
3 | Operating Voltage | DC2.4V-3.7V |
4 | Working frequency | 410-525MHz |
5 | Output Power | 19±1dBm(max) |
6 | Emission current | <100mA |
7 | Receiving sensitivity | -136dBm |
8 | Receive current | ≤13mA |
9 | Sleep current | <2uA |
10 | Antenna | PCB antenna |
11 | Working temperature | -40°C-85°C |
12 | Size | 15*15mm |
13 | Distance | 5km |
14 | Application | Modules IOT solutions |
15 | Interface | SPI |
Serial number | Interface name | Function |
1,2,3,4,11, | GND | Power GND |
12, 19,20,22 | ||
5 | DIO0 | Programmable decision |
6 | DIO1 | Programmable decision |
7 | 7 DIO2 | Programmable decision |
8 | DIO3 | Programmable decision |
9 | NC | Module internal use. this pin cannot be connected to any electrical network in the circuit design |
10 | DIO5 | Programmable decision |
13 | VCC | Module power pin. the power supply |
Shall not exceed 3.7V, otherwise the module will be burnt | ||
14 | CLK | SPI bus clock pin, normally high level |
15 | MISO | SPI bus slave output pin. When MCU |
Reads module data, module data is output by this pin | ||
16 | MOSI | Bus slave input pin. When MCU writes |
Data to module, number Write from this pin | ||
17 | SEL | SPI chip selection pin, effective at low level |
18 | RST | Reset pin, valid for low level |
21 | ANT | Antenna port |
