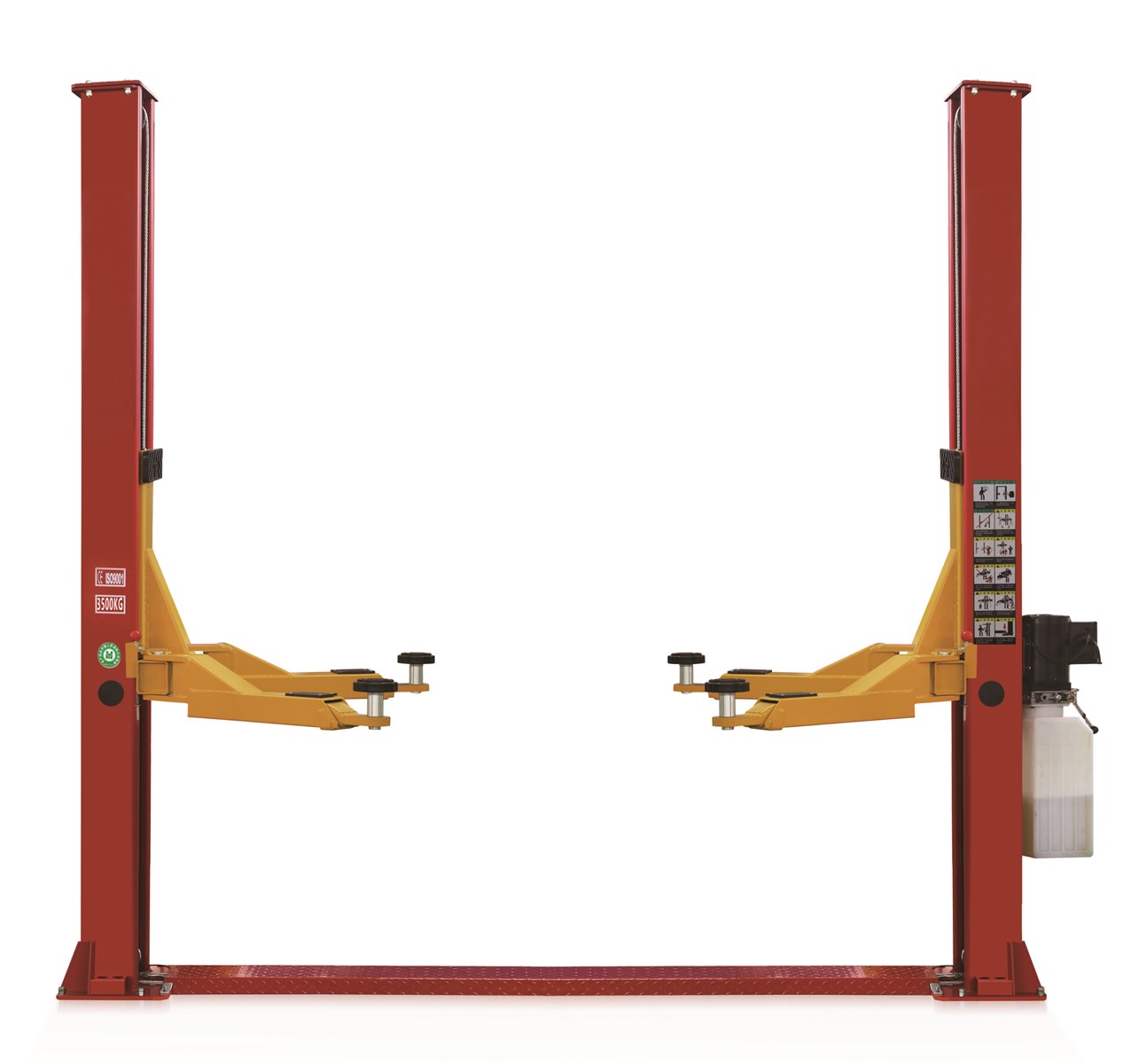

Features:

1.     Floor Design, suitable for the bottom not high in the auto repair.

2.     Adopt Double cylinder, 4*3 higher and stronger chain, the wire rope balance system.

3.     Bilateral Manual release.

4.     Rubber Pad door-opening protection.

5.     Rubber Support pad adopts double helix adjustment height and height increase joint.

6.     Limit Switch.

7.     the Arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.

Technical Specifications:

Lifting Capacity:                           3500kg

Lifting Height:                            1850mm

Min.Height:                              100mm

Pass Width:                              2560mm

Column Width:                           2790mm

Total Width:                             3280mm

Lifting Time:                             50s-60s

Motor Power:                            2.2kw-380v/2.2kw-220v

Oil Pressure rating:                        24Mpa

Weight:                                 565kg
